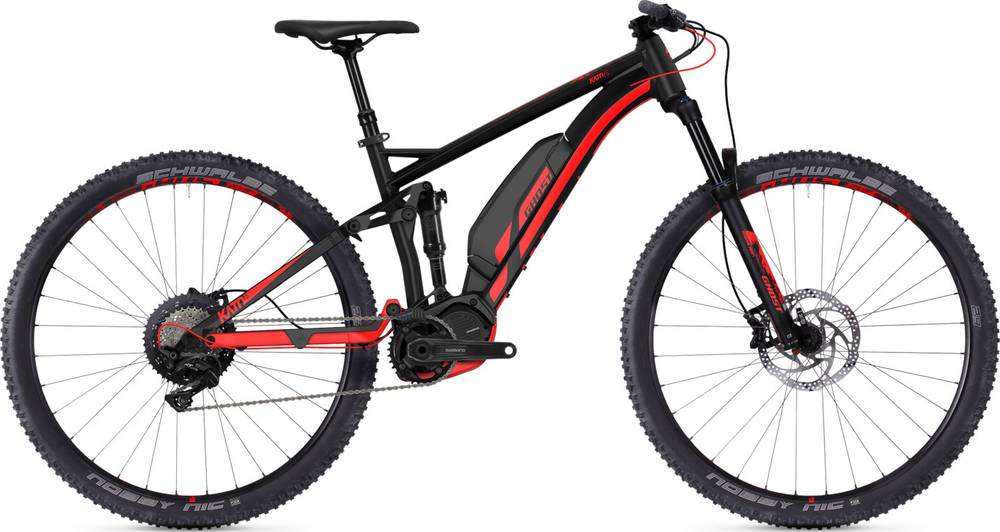

Ghost Hybride Kato S4.9 AL 2018
2018 E-bike
Weight | 21.4 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 130mm -
Fork SunTour AION
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano BT-E8010 with Shimano EC-E6000 charger -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour AION 35 RC DS, Boost
Rear Shock
RockShox Deluxe RT Air
Drivetrain
Rear Derailleur
Shimano XT RD-M8000 Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano SLX SL-M7000, 11-speed
Cassette
Shimano SLX CS-M7000, 11-46 tooth, 11-speed
Crank
Shimano FC-E8000
Chain
11-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Front: Formula EHL-148A, Boost 15mm x 110mm, Rear: Formula DC-511, Boost 12mm x 148mm
Rear Hub
Front: Formula EHL-148A, Boost 15mm x 110mm, Rear: Formula DC-511, Boost 12mm x 148mm
Rims
Rodi Tryp, 25mm width, 32 hole
Spokes
Rodi Tryp
Tires
Schwalbe Nobby Nic Performance Addix, 2.25"
Brakes
Brakes
Tektro HD-M805 Slate 4K with 203mm rotors, 4 pistons
Brake Levers
Tektro HD-M805 Slate 4K
Cockpit
Stem
Ghost MTB, 55mm length, 35mm clamp
Handlebar
Ghost Low Rizer MTB, 760mm width, 15mm rise, 35mm diameter
Headset
16012, 44mm top / 56mm bottom
Seat
Saddle
Selle Italia X-Base
Seatpost
JD Dropper, 100mm drop
Motor & Battery
Motor
Shimano DU-E8000
Battery
Shimano BT-E8010 with Shimano EC-E6000 charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.76 mm | 1.71 mm | 1.68 mm | 1.64 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 731 mm | 758 mm | 787 mm | 815 mm |
| Rake | -11 mm | -10 mm | -9 mm | -9 mm |
| Trail | 179 mm | 178 mm | 177 mm | 177 mm |
| Stack | 751 mm | 765 mm | 783 mm | 801 mm |
| Reach | 427 mm | 447 mm | 467 mm | 487 mm |
| Top Tube Length | 580 mm | 604 mm | 629 mm | 654 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1192 mm | 1219 mm | 1248 mm | 1276 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 751 mm | 765 mm | 783 mm | 801 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Hybride Kato S4.9 AL belongs to the Ghost E Hybride model. There are 20 e-bikes that carry this model name. Take a sneak peek at all Ghost E Hybride e-bikes models from 2018, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Trail e-bikes
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 21.4 kg (47.18 lbs), the Hybride Kato S4.9 AL model is considerably lighter than average. In short, the average Trail e-bike weight is 10.75% higher than this one.
Hybride Kato S4.9 AL components
Fork
This e-bike has the SunTour AION fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Hybride Kato S4.9 AL has a rear shock with a travel of 130mm. The model RockShox Deluxe RT Air is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Hybride Kato S4.9 AL 2018 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Ghost Hybride Kato S4.9 AL e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Hybride Kato S4.9 AL. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
