Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork SunTour AION
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano BT-E8010 with Shimano EC-E6000 charger -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
SR Suntour AION35 RC-PCS DS
Rear Shock
RockShox Super Deluxe Coil R
Drivetrain
Rear Derailleur
Shimano XT RD-M8000 Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano SLX SL-M7000, 11-speed
Cassette
Sunrace MS8-E, 11-46 tooth, 11-speed
Crank
Ground Fiftyone
Chain
11-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss H 1700, Boost front and rear
Rear Hub
DT Swiss H 1700, Boost front and rear
Rims
Front: DT Swiss H 1700 Spline, 30mm width, Rear: DT Swiss H 1700 Spline, 35mm width
Spokes
DT Swiss
Tires
Front: Maxxis Minion DHR II, 29" x 2.4" 3C MaxxTerra EXO, Rear: Maxxis Minion DHR II, 27.5" x 2.8" 3C MaxxTerra EXO
Brakes
Brakes
Magura MT 5 with 203mm rotors, 4 pistons
Brake Levers
Magura MT 5
Cockpit
Stem
Ground Fiftyone Team, 55mm length, 35mm clamp
Handlebar
Ground Fiftyone Race, 780mm width, 35mm diameter
Headset
16012, 44mm top / 56mm bottom
Seat
Saddle
Ergon SME30
Seatpost
JD Dropper, 100mm drop
Motor & Battery
Motor
Shimano DU-E8000
Battery
Shimano BT-E8010 with Shimano EC-E6000 charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.4 mm | 1.34 mm | 1.29 mm |
| Front Center | 725 mm | 748 mm | 792 mm | 829 mm |
| Rake | 48 mm | 47 mm | 48 mm | 47 mm |
| Trail | 110 mm | 112 mm | 110 mm | 112 mm |
| Stack | 616 mm | 626 mm | 644 mm | 663 mm |
| Reach | 427 mm | 447 mm | 482 mm | 512 mm |
| Top Tube Length | 577 mm | 599 mm | 639 mm | 673 mm |
| Seat Tube Angle | 76.1 ° | 76.1 ° | 76.1 ° | 76.1 ° |
| Seat Tube Length | 390 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 100 mm | 120 mm | 140 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1185 mm | 1208 mm | 1252 mm | 1289 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 722 mm | 724 mm | 753 mm | 776 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

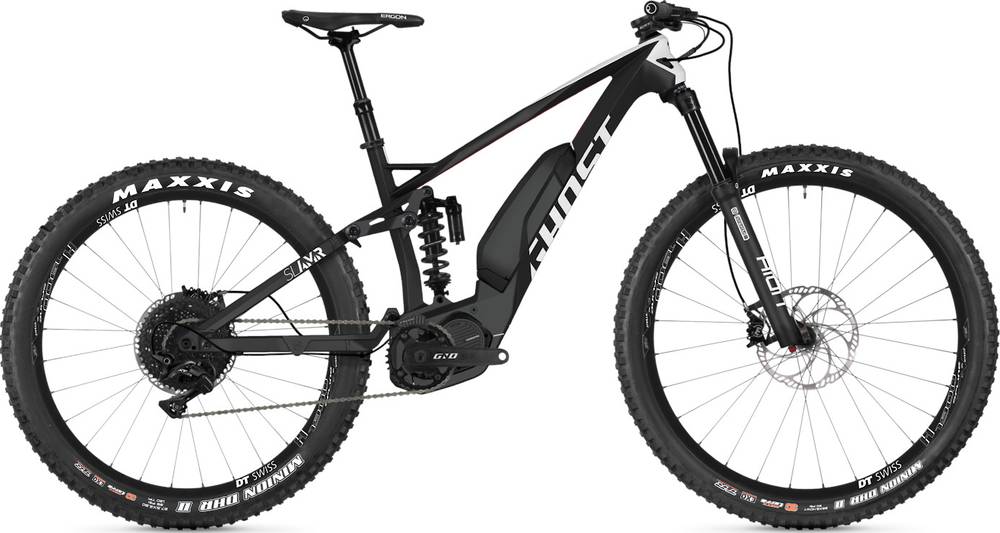

Hybride SL AMR S 4.7+ is a Ghost E Hybride model. Ghost launched 20 e-bikes of this model so far. Take a sneak peek at all Ghost E Hybride e-bikes models from 2018, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The Hybride SL AMR S 4.7+ comes factory-installed with the SunTour AION fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is RockShox Super Deluxe Coil R, with a travel distance of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Hybride SL AMR S 4.7+ are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Hybride SL AMR S 4.7+ comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Ghost model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
