Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
164cm - 176cm
LG
173cm - 185cm
XL
182cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

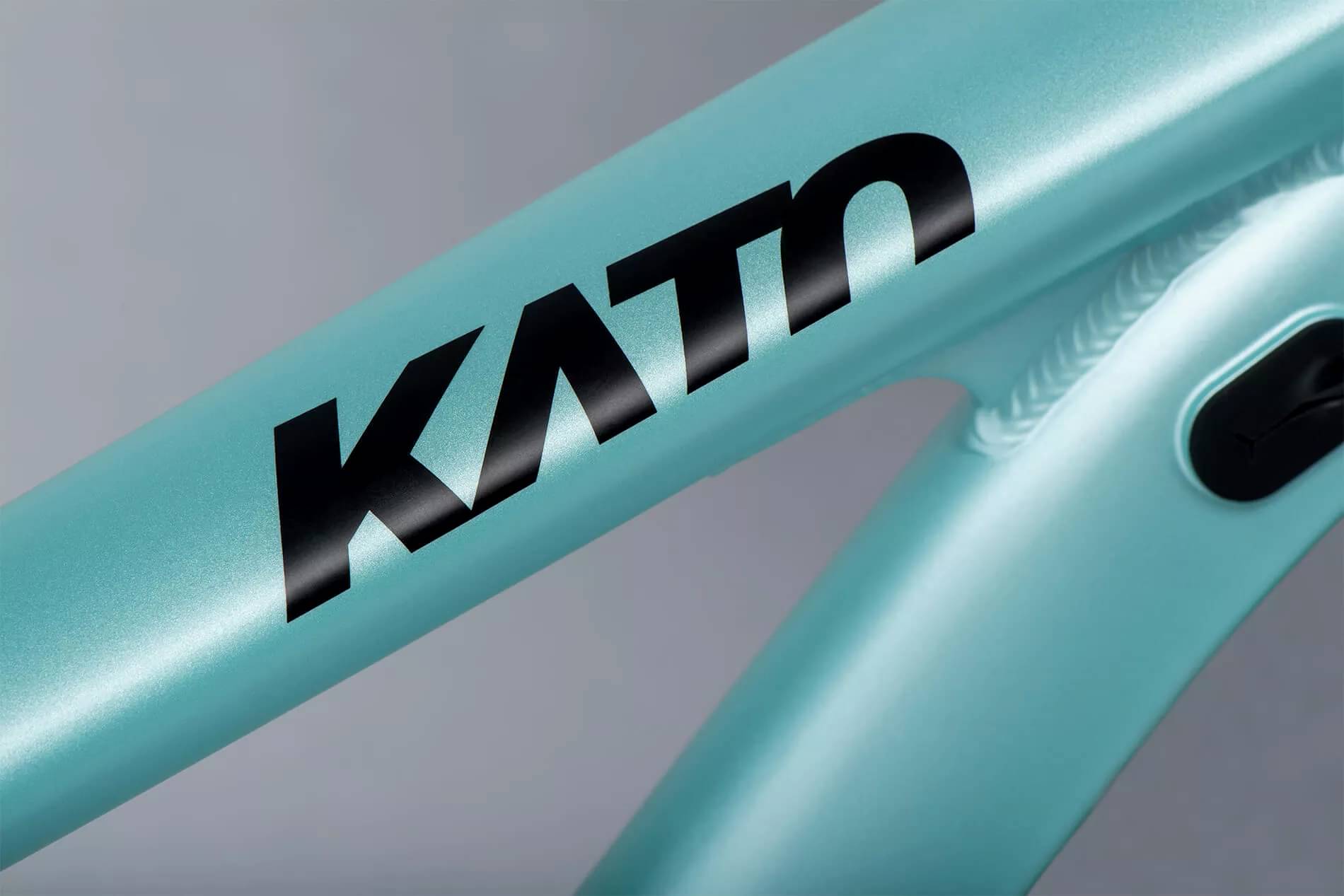

Frame
Frame
KATO AL
Suspension Fork
SR Suntour XCE28 DS 100 mm

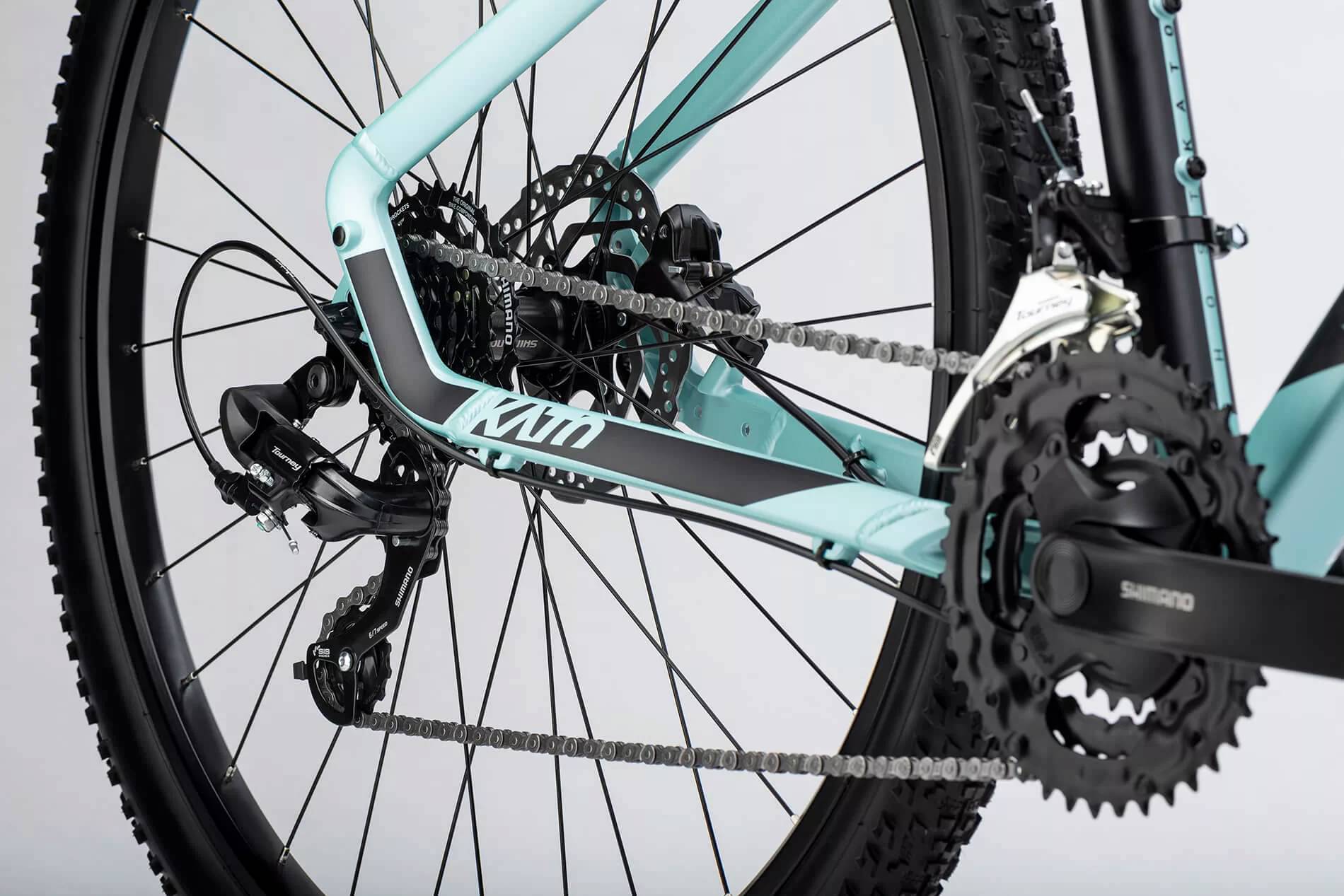

Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300 7-S
Front Derailleur
Shimano Tourney FD-TY300
Cassette
Shimano CS-HG-200-7 12-32
Crank
Shimano FC-TY301 42-34-24
Bottom Bracket
BB-Thun
Chain
KMC Z51
Pedals
FPD NW-91K
Wheels
Rims
Schürmann Yak Disc 25
Tires
Front: Mitas Ocelot 29x2.10, Rear: Mitas Ocelot 29x2.10
Brakes
Brakes
Shimano BR-MT200 160 mm Disc
Brake Levers
Shimano BL-MT200

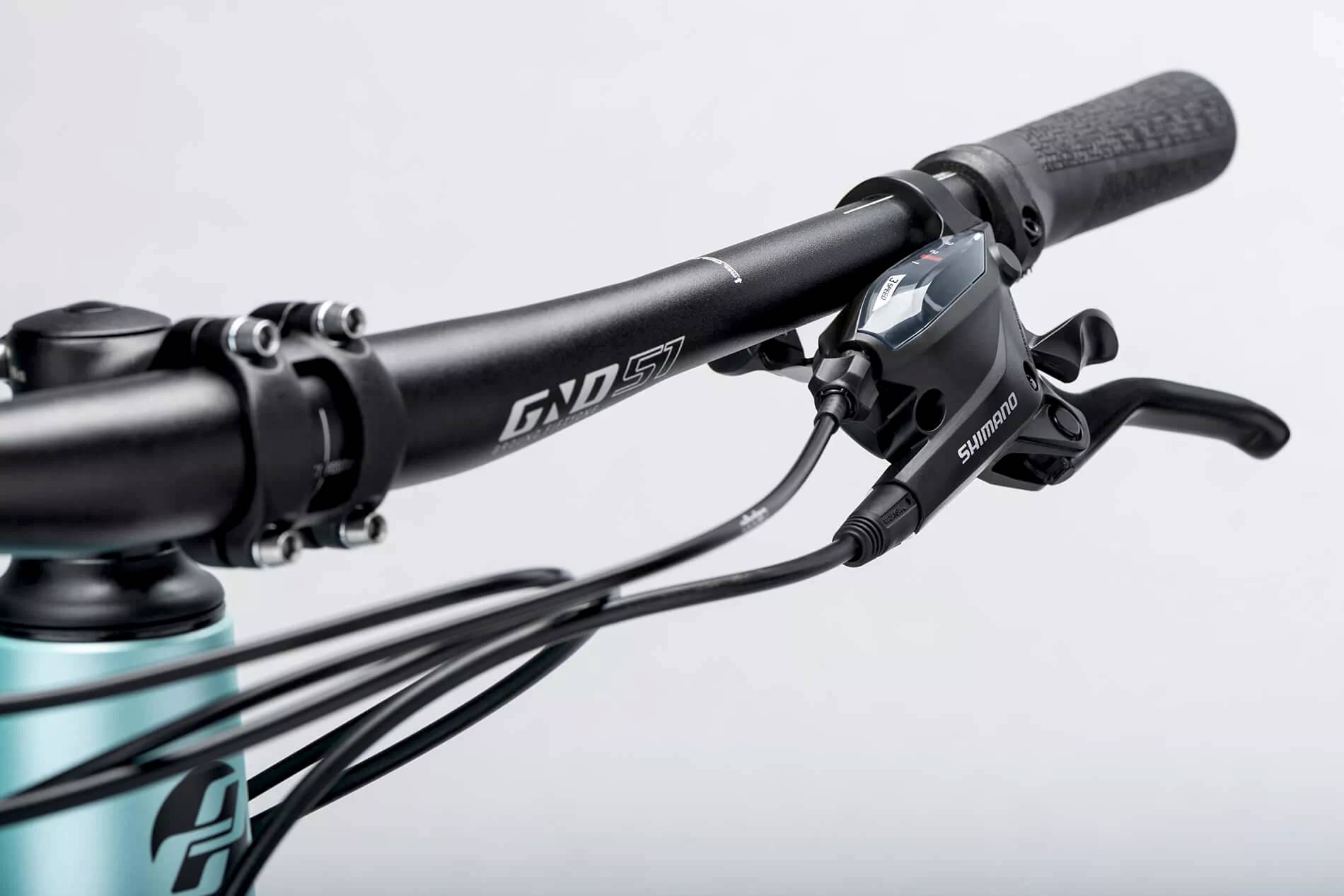

Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 0/700 mm (XS) 0/720 mm (S) 0/740 mm (M-L) 0/760 (XL)
Grips
MTB Grip
Seat
Saddle
Selle Italia X-Base
Seatpost
GHOST SP DC1 30.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.564 mm | 1.521 mm | 1.484 mm | 1.447 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 669 mm | 690 mm | 711 mm | 731 mm |
| Rake | 47 mm | 47 mm | 47 mm | 48 mm |
| Trail | 101 mm | 101 mm | 101 mm | 100 mm |
| Stack | 613 mm | 622 mm | 632 mm | 641 mm |
| Reach | 392 mm | 409 mm | 426 mm | 443 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1112 mm | 1133 mm | 1154 mm | 1175 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 715 mm | 735 mm | 765 mm | 780 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 173 cm | 182 cm |
| Rider Max Height | 167 cm | 176 cm | 185 cm | 199 cm |
Model Overview
Kato 29 AL completes the Ghost Kato model. Ghost launched 96 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Ghost Kato 20 Pro 2023 is the most affordable bike of this model and has a price of 530$. On the other hand, Ghost Kato FS Universal 2023, is the most expensive and costs 2335$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Ghost released this model in 2023, its price was 668$. Comparing the average cost of a Crosscountry bike to this one, you will see that Kato 29 AL price is 185.18% lower.
Kato 29 AL components
Fork

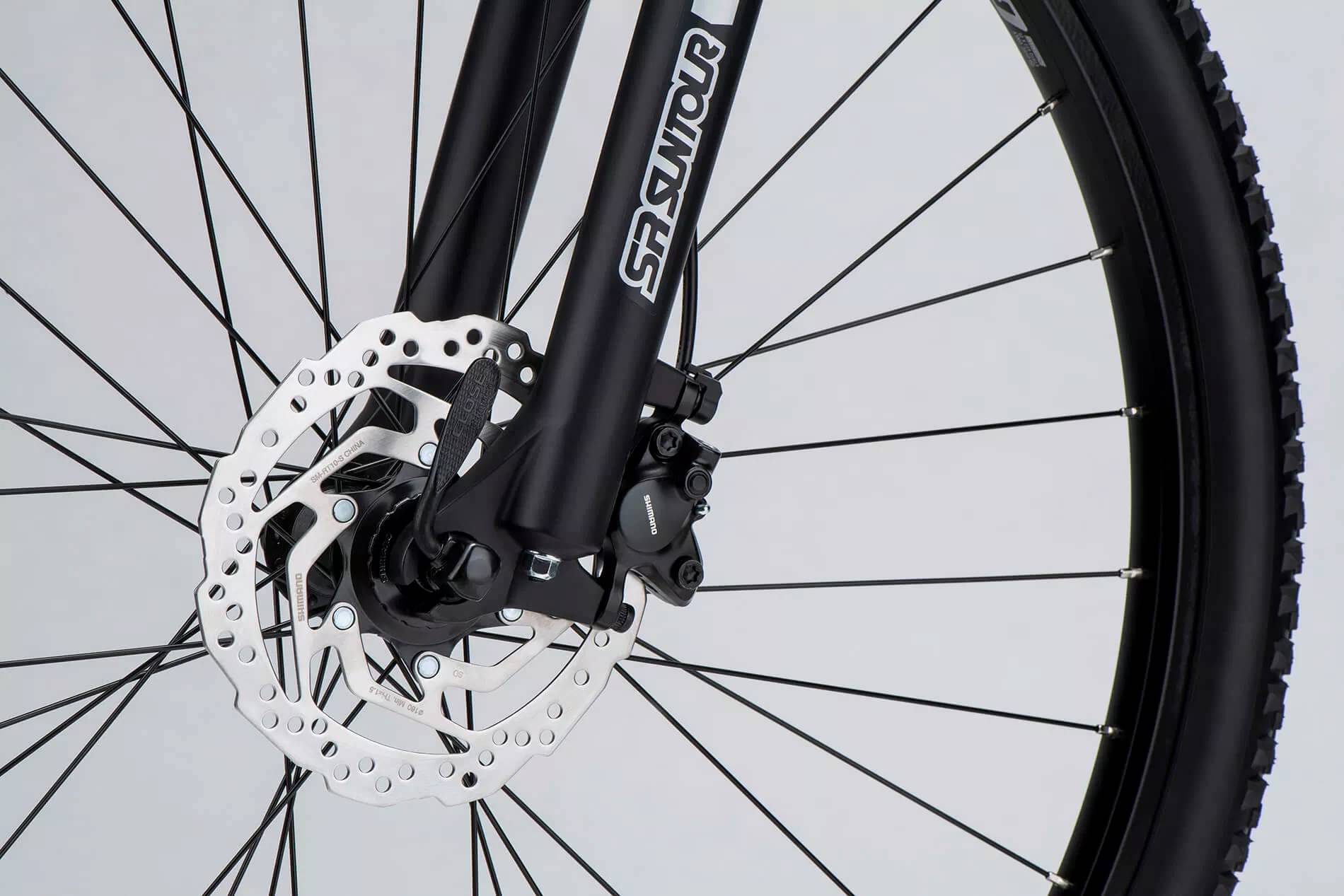

The Kato 29 AL comes factory-installed with the Suntour XCE fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Kato 29 AL bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Kato 29 AL comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 199 cm (5.05 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
