Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Suntour XCR
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
149cm - 160cm
SM
157cm - 167cm
MD
165cm - 176cm
LG
173cm - 185cm
XL
182cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KATO FS AL
Suspension Fork
SR Suntour XCR34 Coil 130 mm
Rear Shock
SR Suntour Raidon R 130 mm

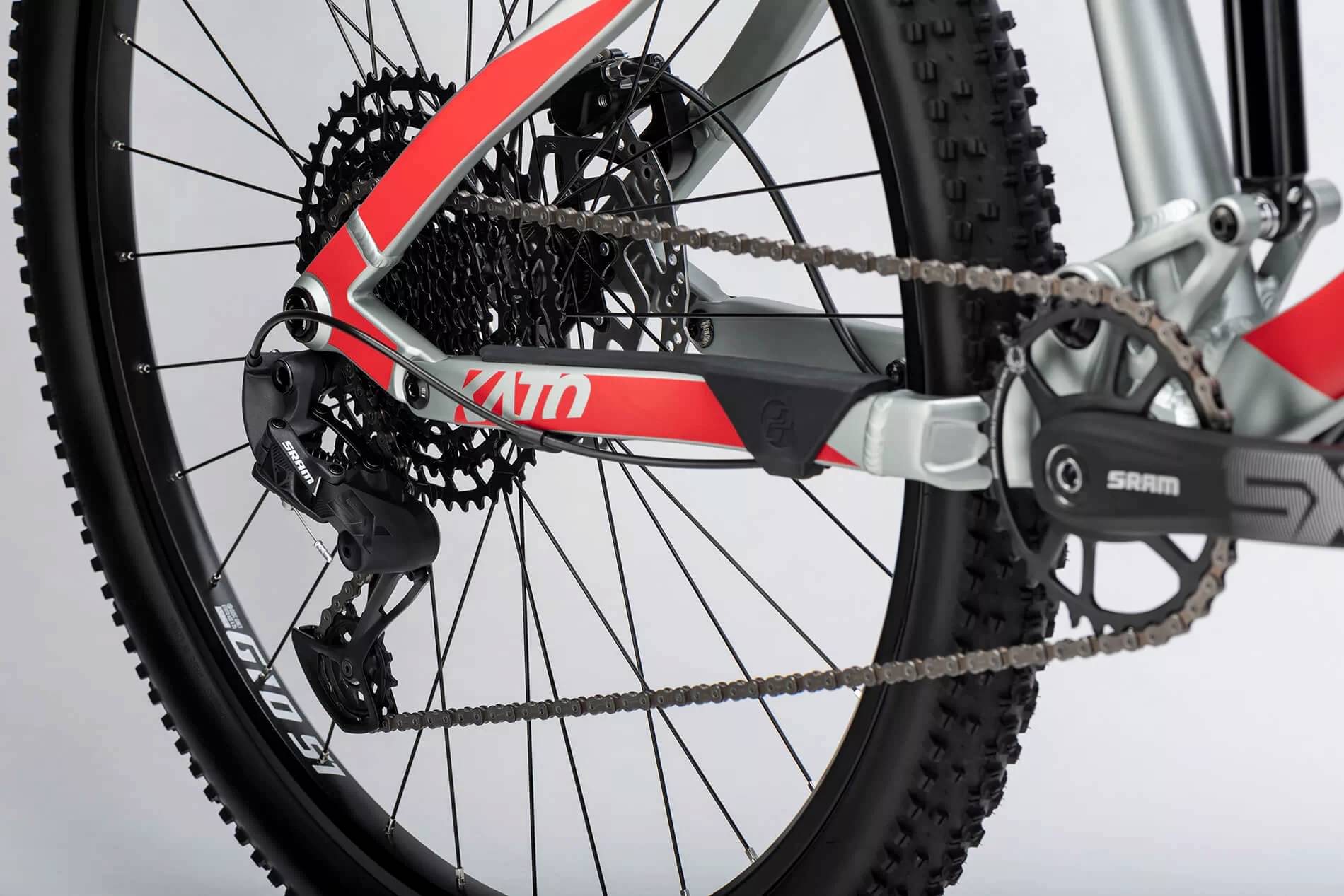

Drivetrain
Rear Derailleur
SRAM SX Eagle 12-S
Cassette
SRAM PG-1210 11-50
Crank
SRAM SX Eagle 32T
Bottom Bracket
SRAM Power Spline 118/73
Chain
SRAM SX Eagle
Pedals
VPE-506
Wheels
Rims
Schürmann Yak Disc 25
Tires
Front: WTB Ranger 2.3 Comp (S 27,5"; M-XL 29"), Rear: WTB Ranger 2.3 Comp (S 27,5"; M-XL 29")
Brakes
Brakes
Tektro HD-M275 180 mm Disc
Brake Levers
Tektro HD-M275

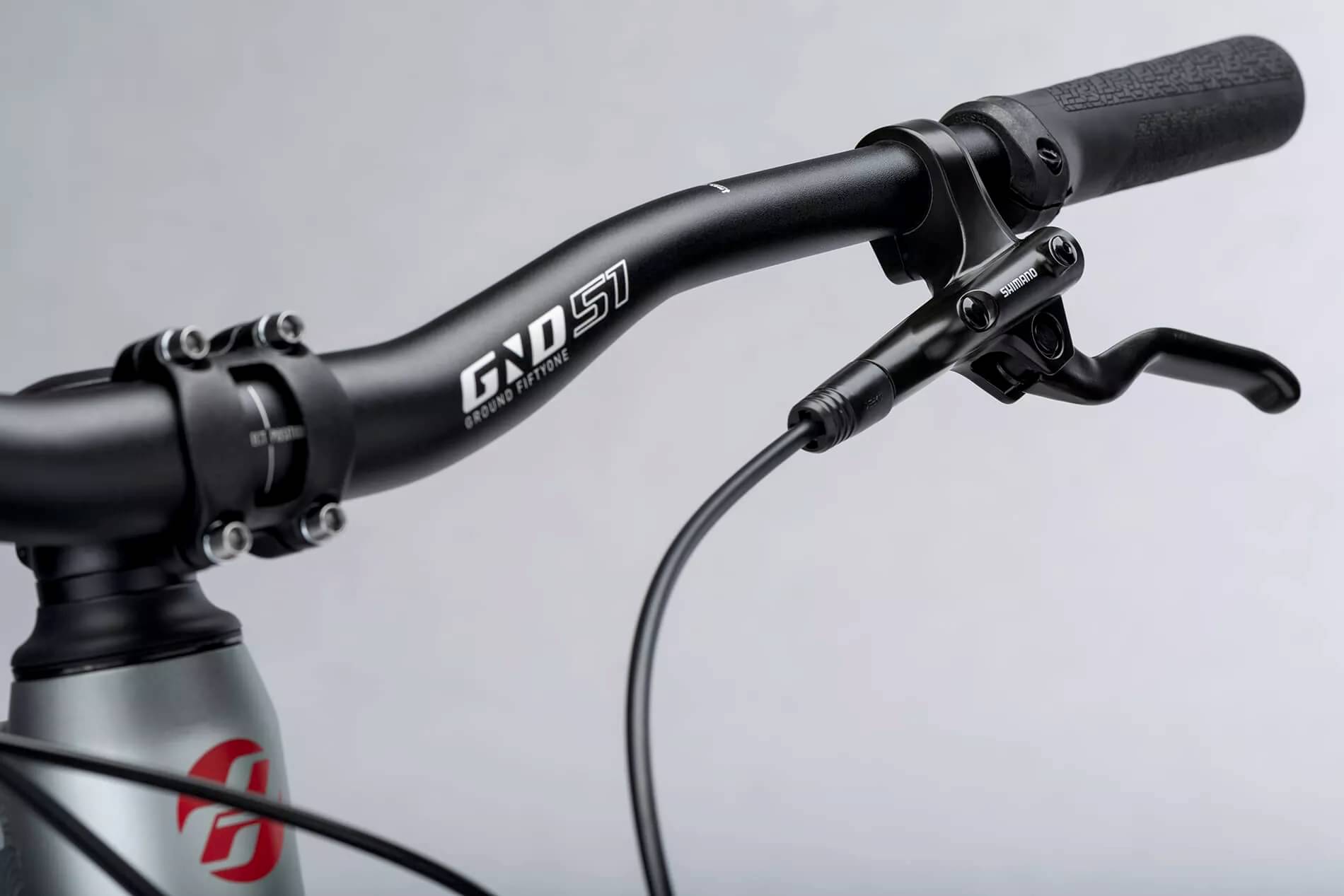

Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 720mm (S) 740mm (M-L) 780mm (XL)
Grips
MTB Grip
Seat
Saddle
Selle Italia X-Base
Seatpost
GND 51 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.3 mm | 1.35 mm | 1.29 mm | 1.27 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 716 mm | 752 mm | 783 mm | 820 mm | 857 mm |
| Rake | 45 mm | 45 mm | 52 mm | 52 mm | 52 mm |
| Trail | 109 mm | 109 mm | 110 mm | 110 mm | 110 mm |
| Stack | 580 mm | 589 mm | 627 mm | 641 mm | 664 mm |
| Reach | 421 mm | 453 mm | 465 mm | 496 mm | 523 mm |
| Top Tube Length | 552 mm | 588 mm | 608 mm | 643 mm | 676 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 385 mm | 395 mm | 415 mm | 435 mm | 465 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm | 160 mm |
| Chainstay Length | 432 mm | 432 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1147 mm | 1183 mm | 1233 mm | 1270 mm | 1307 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 700 | 702 mm | 717 mm | 728 mm | 746 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 173 cm | 182 cm |
| Rider Max Height | 160 cm | 167 cm | 176 cm | 185 cm | 194 cm |
Model Overview
Kato FS completes the Ghost Kato model. Ghost launched 96 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Ghost Kato 20 Pro 2023 has a starting price of 530$. Ghost Kato FS Universal 2023 on the other hand is the most expensive at 2335$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Ghost Kato FS price was 1804$. In conclusion, this bike price is 53.1% smaller than the price of the average Trail bike.
Overview of components
Fork
This bike has the Suntour XCR fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.

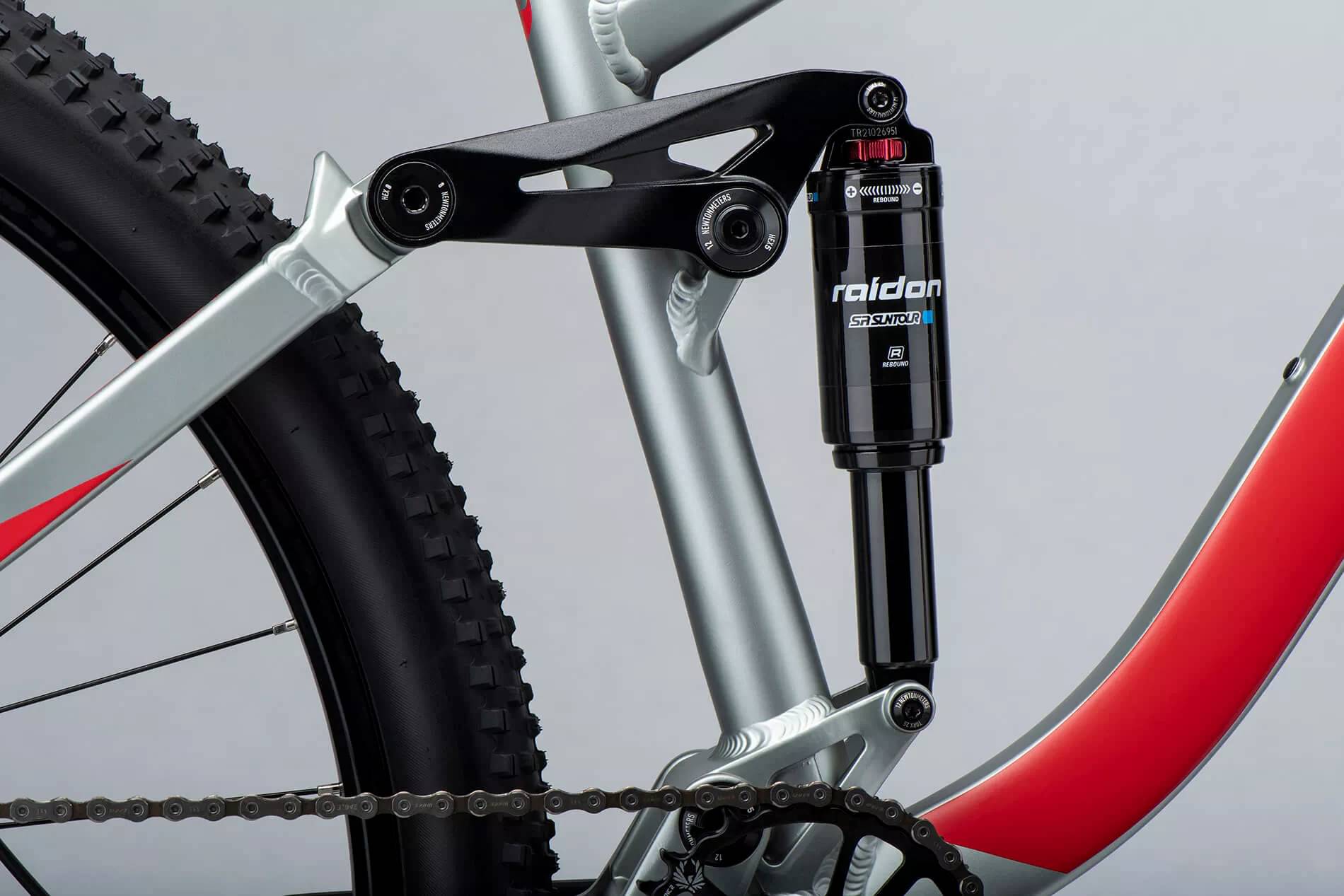

Rear Shock
From the factory, it comes with the SR Suntour Raidon R 130 mm rear shock model, which has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Kato FS are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.

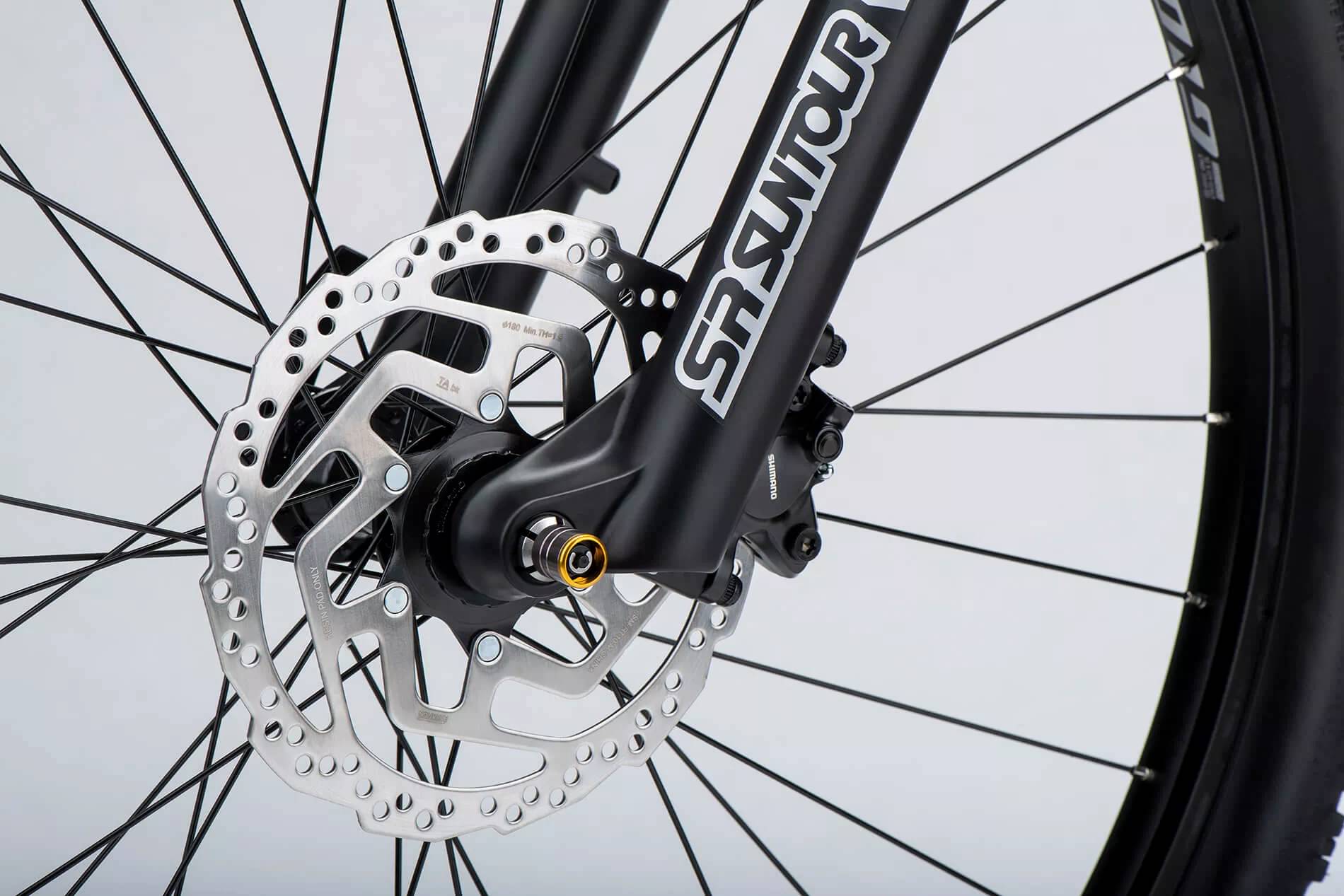

Brakes
Nothing is more important on a bike than its ability to brake properly. Ghost Kato FS is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 149 cm – 194 cm (4.89 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
