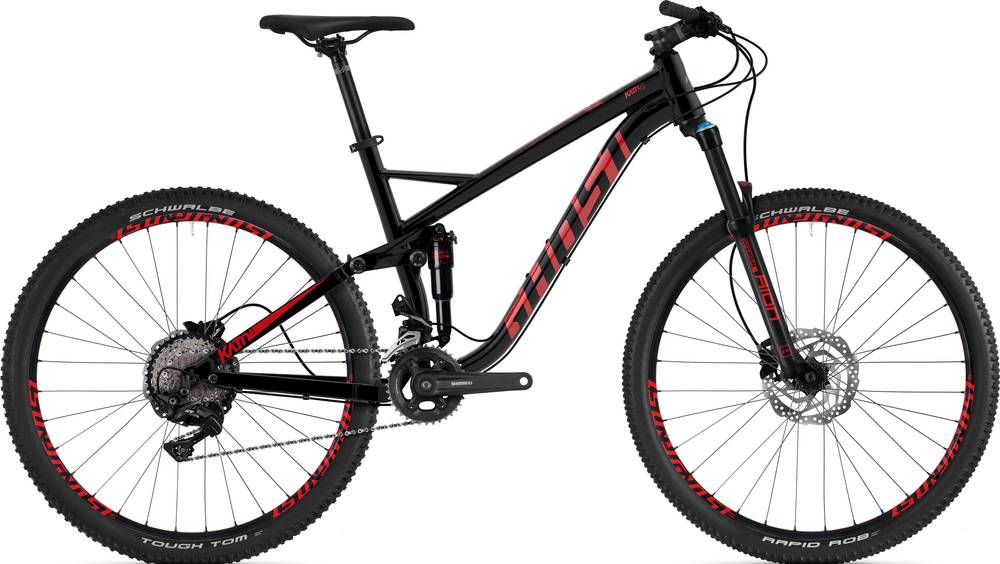

Ghost Kato FS 3.7 AL U 2020
2020 Mountain
Estimate price |
1,860$
Weight | 14.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork SunTour AION
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KATO FS AL
Suspension Fork
SR Suntour AION 34 LO-R 130 mm
Rear Shock
SR Suntour DUAir LO-R 130 mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000 Shadow Plus 11-S
Front Derailleur
Shimano SLX FD-M7020
Cassette
Shimano SLX CS-M7000 11-42
Crank
Shimano FC-MT600 36-26
Wheels
Front Hub
Shimano Deore HB-M6010 15 x 100 mm
Rear Hub
Shimano Deore FH-M6000 QR
Rims
Rodi Excalibur XC 584x19 mm 32H
Tires
Schwalbe Tough Tom K-Guard 27.5 x 2.25
Brakes
Brakes
Shimano BR-MT500 2/2 Piston 180 mm Disc
Cockpit
Stem
GHOST MTB Dia. 31.8 mm
Handlebar
GHOST MTB 760 mm Rise 15 mm Dia. 31.8 mm
Headset
16012
Seat
Saddle
Selle Italia X-Base
Seatpost
GHOST SP-DC1 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.35 mm | 1.31 mm | 1.29 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 684 mm | 711 mm | 736 mm | 752 mm |
| Rake | 44 mm | 45 mm | 44 mm | 44 mm |
| Trail | 89 mm | 88 mm | 89 mm | 89 mm |
| Stack | 590 mm | 600 mm | 609 mm | 618 mm |
| Reach | 421 mm | 443 mm | 465 mm | 478 mm |
| Top Tube Length | 578 mm | 603 mm | 628 mm | 648 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1117 mm | 1144 mm | 1169 mm | 1185 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 703 mm | 748 mm | 758 mm | 788 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Kato FS 3.7 AL U completes the Ghost Kato model. There are 96 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Ghost KATO 2.0 AL U 2020 has a starting price of 371$. Ghost Kato FS 3.7 AL U 2020 on the other hand is the most expensive at 1698$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1698$. If we compare this with the average Trail bike cost we notice that the price is 62.66% lower.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Ghost Kato FS 3.7 AL U it’s weighing 14.4 kg (31.75 lbs). At this weight, is considerably heavier than average. In other words, this model is 10.94% heavier than the average Trail bike.
Overview of components
Fork
Ghost Kato FS 3.7 AL U 2020 bike is equipped with the SunTour AION fork, and has 130mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Kato FS 3.7 AL U has a rear shock with a travel of 130mm. The model SR Suntour DUAir LO-R 130 mm is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Kato FS 3.7 AL U model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Kato FS 3.7 AL U has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
