Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork SunTour AION
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour Aion LO-R
Rear Shock
XFusion O2 Pro RL Air
Drivetrain
Rear Derailleur
Shimano XT RD-M8000, Shadow Plus, 11-speed
Front Derailleur
Shimano SLX FD-M7020 Side Swing
Shift Levers
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000, 11-42 tooth
Crank
Shimano FC-MT600
Bottom Bracket
BSA 68mm
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Front: Shimano Deore HB-M6010, 15x100mm, Rear: Shimano Deore FH-M6000, QR
Rear Hub
Front: Shimano Deore HB-M6010, 15x100mm, Rear: Shimano Deore FH-M6000, QR
Rims
Rodi Excalibur XC, 32 hole
Tires
Continental X-King PureGrip, 27.5" x 2.2"
Brakes
Brakes
Shimano 506, 2-piston calipers, 180mm rotors
Brake Levers
Shimano 506
Cockpit
Stem
Ghost MTB, 31.8mm clamp, 60mm length
Handlebar
Ghost Low Rizer MTB, 760mm width, 31.8mm clamp, 15mm rise
Headset
16012
Seat
Saddle
Selle Italia X-Base
Seatpost
Ghost Light DC 1
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.35 mm | 1.31 mm | 1.29 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 684 mm | 711 mm | 736 mm | 752 mm |
| Rake | 44 mm | 45 mm | 44 mm | 44 mm |
| Trail | 89 mm | 88 mm | 89 mm | 89 mm |
| Stack | 590 mm | 600 mm | 609 mm | 618 mm |
| Reach | 421 mm | 443 mm | 465 mm | 478 mm |
| Top Tube Length | 578 mm | 603 mm | 628 mm | 648 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1117 mm | 1144 mm | 1169 mm | 1185 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 703 mm | 748 mm | 758 mm | 788 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

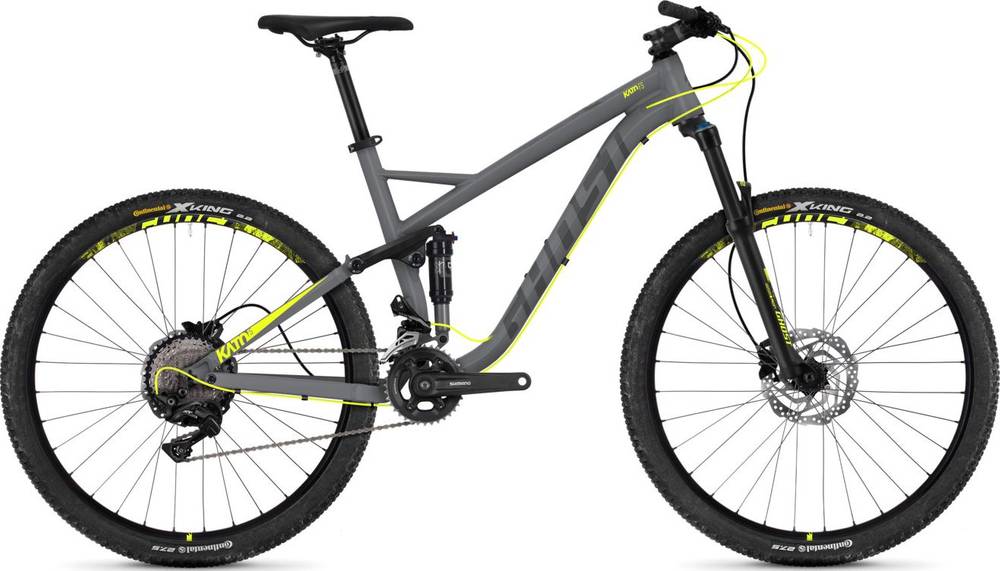

Kato FS AL 3.7 is a Ghost Kato model. Ghost launched 96 bikes of this model so far. You can easily view all of the Ghost Kato bikes models from 2018, here.
Model range prices
The most economical model, the Ghost Kato Kid 4 AL 24 2018 has a starting price of 466$. Ghost Kato X 6.9 AL 2018 on the other hand is the most expensive at 1592$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 14.8 kg (32.63 lbs), Ghost bike is considerably heavier than average. To sum up, it’s 14.02% heavier than the average weight of Trail bikes.
Overview of components
Fork
This bike has the SunTour AION fork installed. The fork’s travel is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Kato FS AL 3.7 has a rear shock with a travel of 130mm. The model XFusion O2 Pro RL Air is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Ghost Kato FS AL 3.7 2018, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Ghost Kato FS AL 3.7 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
