Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Suspension Rigid -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SQUARE Times AL
Suspension Fork
GHOST AL Rigid
Rear Shock
-
Drivetrain
Cassette
Gates Carbon Drive Polymer Ceramic 24
Crank
Gates Carbon Drive S150 46T
Wheels
Front Hub
SRAM Automatix
Rear Hub
Formula DC 20 QR
Rims
Rodi Airline 1 622x19 mm 32H
Tires
WTB Thickslick Comp 29x2.1
Brakes
Brakes
Magura MT 2 2/2 Piston 160 mm Disc
Cockpit
Stem
Satori HL STEALTH 6 Dia. 31.8 mm
Handlebar
Satori Deviant Bow 700 mm Rise 12 mm Dia. 31.8 mm
Headset
16358
Seat
Saddle
Justek 3050 HRN
Seatpost
Satori HL Comet 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.63 mm | 1.66 mm | 1.69 mm |
| Front Center | 657 mm | 660 mm | 664 mm | 673 mm |
| Rake | 50 mm | 49 mm | 50 mm | 50 mm |
| Trail | 74 mm | 75 mm | 67 mm | 67 mm |
| Stack | 638 mm | 643 mm | 666 mm | 685 mm |
| Reach | 393 mm | 395 mm | 402 mm | 405 mm |
| Top Tube Length | 582 mm | 597 mm | 612 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 470 mm | 520 mm | 570 mm | 620 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 165 mm | 185 mm | 205 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1107 mm | 1110 mm | 1114 mm | 1123 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 737 mm | 772 mm | 817 mm | 857 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

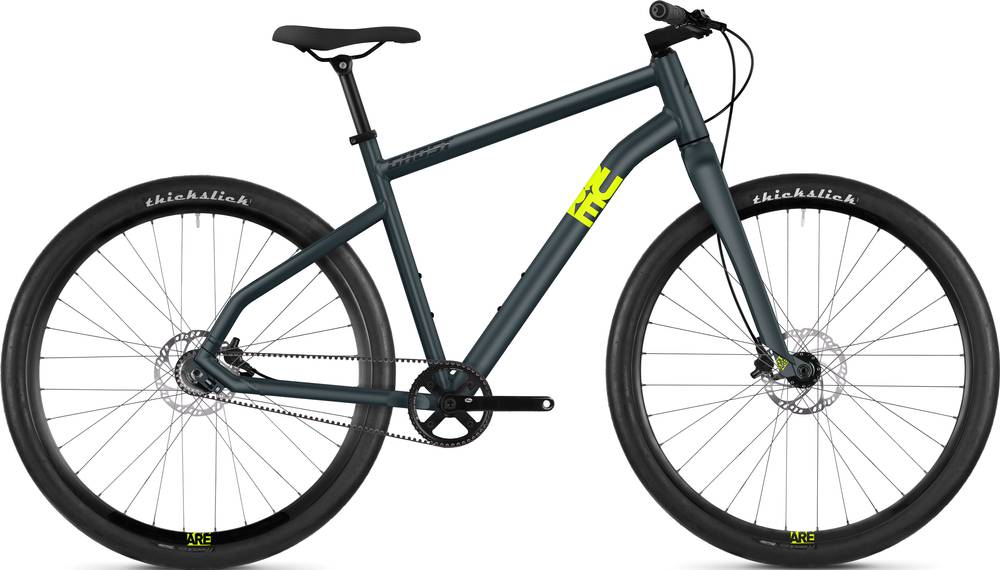

SQUARE Times 6.9 AL belongs to the Ghost Square model. Ghost released 79 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Ghost Square Trekking 2.8 AL W 2018 has a starting price of 689$. Ghost Square Urban X7.8 AL 2018 on the other hand is the most expensive at 1592$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Hybrid bikes
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 11.1 kg (24.47 lbs), Ghost bike is much lighter than average. In other words, this model is 24.77% lighter than the average Hybrid bike.
SQUARE Times 6.9 AL components
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the SQUARE Times 6.9 AL model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
SQUARE Times 6.9 AL comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
