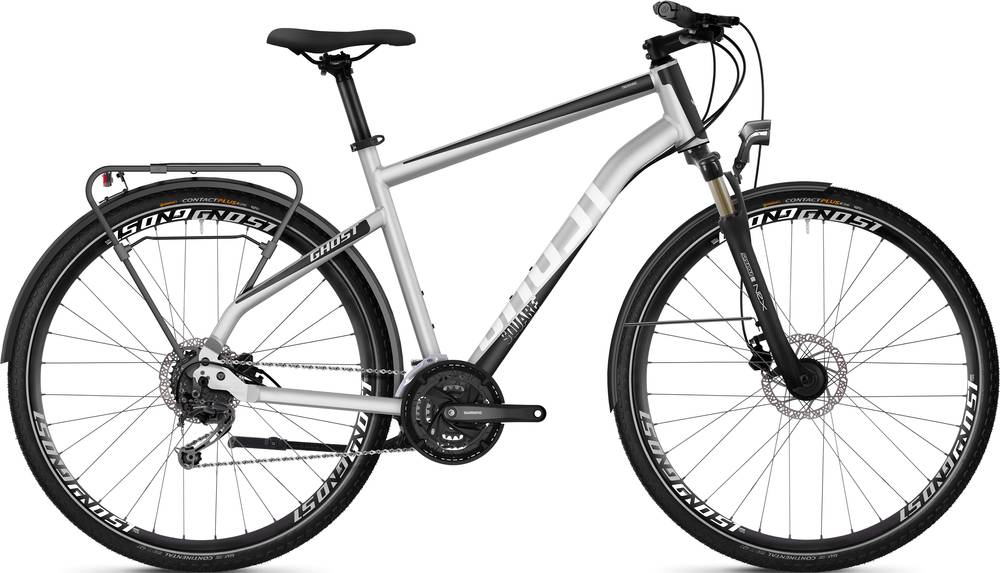

Ghost SQUARE TREKKING 4.8 AL U 2020
2020 Urban
Estimate price |
916$
Weight | 17.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SQUARE Trekking AL
Suspension Fork
SR Suntour SF16 NEX HLO-DS 63 mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M592 9-S
Front Derailleur
Shimano Alivio FD-T4000
Cassette
Shimano CS-HG-200-9 11-34
Crank
Shimano FC-M371 48-36-26
Wheels
Front Hub
Shimano Hub Dynamo DH-3D32-QR
Rear Hub
Formula DC 22 QR
Rims
Rodi Excalibur XC 622x19 mm 32H
Tires
Continental Contact Plus 37-622
Brakes
Brakes
Tektro HD-M285 2/2 Piston 160 mm Disc
Cockpit
Stem
GHOST SQUARE Dia. 31.8 mm
Handlebar
GHOST SQUARE 680 mm Rise 25 mm Dia. 31.8 mm
Headset
14106
Seat
Saddle
Justek 3050 HRN
Seatpost
GHOST SP-DC1 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.63 mm | 1.66 mm | 1.69 mm |
| Front Center | 657 mm | 660 mm | 664 mm | 673 mm |
| Rake | 50 mm | 49 mm | 50 mm | 50 mm |
| Trail | 74 mm | 75 mm | 67 mm | 67 mm |
| Stack | 638 mm | 643 mm | 666 mm | 685 mm |
| Reach | 393 mm | 395 mm | 402 mm | 405 mm |
| Top Tube Length | 582 mm | 597 mm | 612 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 470 mm | 520 mm | 570 mm | 620 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 165 mm | 185 mm | 205 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1107 mm | 1110 mm | 1114 mm | 1123 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 737 mm | 772 mm | 817 mm | 857 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SQUARE TREKKING 4.8 AL U completes the Ghost Square model. Ghost launched 79 bikes of this model so far. You can easily view all of the Ghost Square bikes models from 2020, here.
Model range prices
Ghost SQUARE Cross 1.8 AL U 2020 is the cheapest bike model and costs 636$. Ghost SQUARE TREKKING 6.8 AL W 2020 is the most expensive one and costs 1061$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 848$. Comparing this to the average Hybrid bike price, we see that the price is 50.89% more expensive.
Hybrid bikes average weight
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Ghost SQUARE TREKKING 4.8 AL U it’s weighing 17.3 kg (38.14 lbs). At this weight, is much heavier than average. In conclusion, the average Hybrid bike weighs 24.91% less than SQUARE TREKKING 4.8 AL U.
SQUARE TREKKING 4.8 AL U components
Fork
The SQUARE TREKKING 4.8 AL U comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the SQUARE TREKKING 4.8 AL U model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
