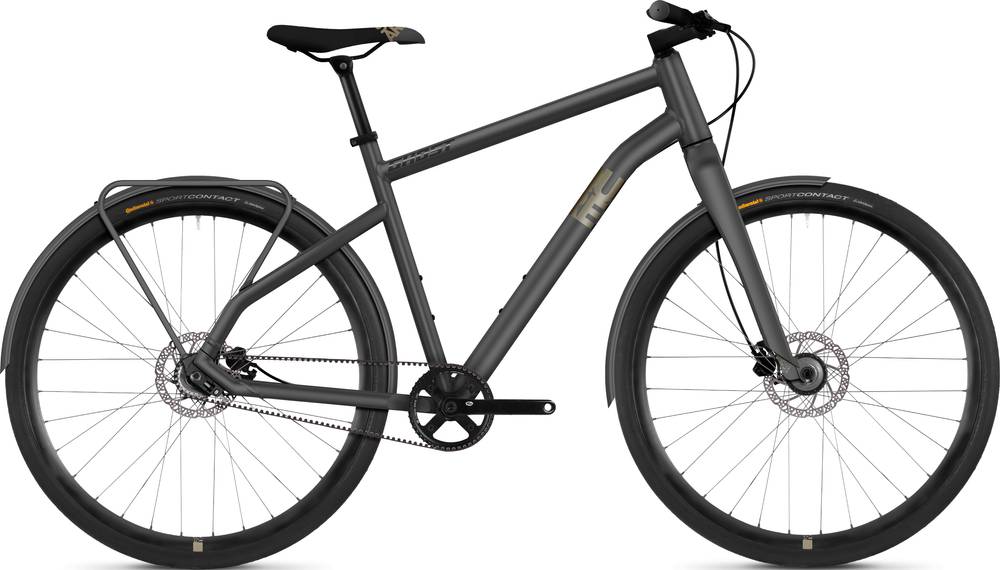

Ghost Square Urban 3.8 AL 2018
2018 Urban
Estimate price |
1,046$
Weight | 12.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SQUARE Urban AL
Suspension Fork
GHOST AL Rigid
Rear Shock
-
Drivetrain
Cassette
Gates Carbon Drive Polymer Ceramic 24
Crank
Gates Carbon Drive S150 46T
Wheels
Front Hub
SRAM Automatix
Rear Hub
Formula DC 20 QR
Rims
Rodi Excalibur XC 622x19 mm 32H
Tires
Continental Contact Speed 37-622
Brakes
Brakes
Tektro HD-M285 2/2 Piston 160 mm Disc
Cockpit
Stem
Satori HL STEALTH 6 Dia. 31.8 mm
Handlebar
GHOST Low Rizer SQUARE 700 mm Rise 10 mm Dia. 31.8 mm
Headset
16358
Seat
Saddle
Justek 2059 HRN
Seatpost
Satori HL Comet 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.63 mm | 1.66 mm | 1.69 mm |
| Front Center | 657 mm | 660 mm | 664 mm | 673 mm |
| Rake | 50 mm | 49 mm | 50 mm | 50 mm |
| Trail | 74 mm | 75 mm | 67 mm | 67 mm |
| Stack | 638 mm | 643 mm | 666 mm | 685 mm |
| Reach | 393 mm | 395 mm | 402 mm | 405 mm |
| Top Tube Length | 582 mm | 597 mm | 612 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 470 mm | 520 mm | 570 mm | 620 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 165 mm | 185 mm | 205 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1107 mm | 1110 mm | 1114 mm | 1123 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 737 mm | 772 mm | 817 mm | 857 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Square Urban 3.8 AL completes the Ghost Square model. There are 79 bikes that carry this model name. Take a sneak peek at all Ghost Square bikes models from 2018, by clicking here.
Model range prices
The most economical model, the Ghost Square Trekking 2.8 AL W 2018 has a starting price of 689$. Ghost Square Urban X7.8 AL 2018 on the other hand is the most expensive at 1592$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2018 and its price was 955$. Comparing this to the average Hybrid bike price, we see that the price is 69.93% more expensive.
Average weight for Hybrid bikes
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Square Urban 3.8 AL weighs 12.3 kg (27.12 lbs) and is considerably lighter than the average. In other words, this model is 12.6% lighter than the average Hybrid bike.
Square Urban 3.8 AL components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
As for the wheels, Ghost Square Urban 3.8 AL 2018, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Ghost Square Urban 3.8 AL bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
