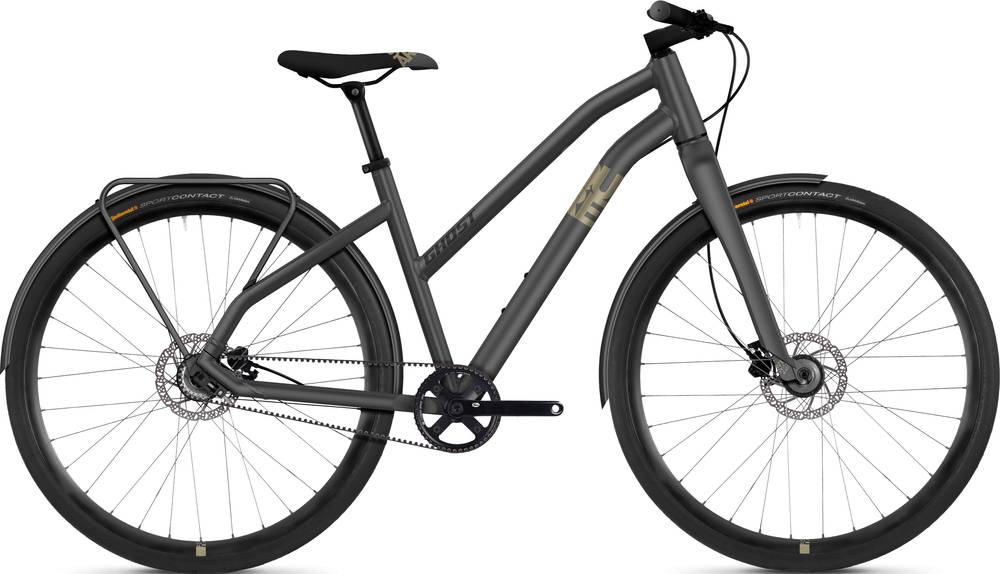

Ghost Square Urban 3.8 AL W 2018
2018 Urban
Estimate price |
1,046$
Weight | 12.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SQUARE Urban AL
Suspension Fork
GHOST AL Rigid
Rear Shock
-
Drivetrain
Cassette
Gates Carbon Drive Polymer Ceramic 24
Crank
Gates Carbon Drive S150 46T
Wheels
Front Hub
Formula DC 20 QR
Rear Hub
SRAM Automatix
Rims
Rodi Excalibur XC 622x19 mm 32H
Tires
Continental Contact Speed 37-622
Brakes
Brakes
Tektro HD-M285 2/2 Piston 160 mm Disc
Cockpit
Stem
Satori HL STEALTH 6 Dia. 31.8 mm
Handlebar
GHOST Low Rizer SQUARE 700 mm Rise 10 mm Dia. 31.8 mm
Headset
16358
Seat
Saddle
Justek 2059 DRN
Seatpost
Satori HL Comet 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.71 mm | 1.7 mm | 1.67 mm |
| Front Center | 625 mm | 628 mm | 643 mm | 664 mm |
| Rake | 49 mm | 50 mm | 50 mm | 50 mm |
| Trail | 72 mm | 71 mm | 71 mm | 71 mm |
| Stack | 632 mm | 637 mm | 651 mm | 665 mm |
| Reach | 371 mm | 372 mm | 382 mm | 398 mm |
| Top Tube Length | 563 mm | 578 mm | 593 mm | 613 mm |
| Seat Tube Angle | 73 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 420 mm | 470 mm | 520 mm | 560 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 150 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1076 mm | 1079 mm | 1094 mm | 1115 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 633 mm | 628 mm | 628 mm | 628 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Square Urban 3.8 AL W completes the Ghost Square model. Ghost released 79 bikes variations of this model so far. Take a sneak peek at all Ghost Square bikes models from 2018, by clicking here.
Model range prices
The most economical model, the Ghost Square Trekking 2.8 AL W 2018 has a starting price of 689$. Ghost Square Urban X7.8 AL 2018 on the other hand is the most expensive at 1592$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Ghost Square Urban 3.8 AL W price was 955$. In conclusion, this bike price is 69.93% more expensive than the price of the average Hybrid bike.
Average weight for Hybrid bikes
On a deeper look, we notice that the average weight of a Hybrid bike is 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 12.5 kg (27.56 lbs), Ghost bike is considerably lighter than average. In other words, this model is 10.8% lighter than the average Hybrid bike.
Overview of components
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The wheels on Square Urban 3.8 AL W are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Ghost Square Urban 3.8 AL W has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Square Urban 3.8 AL W comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
