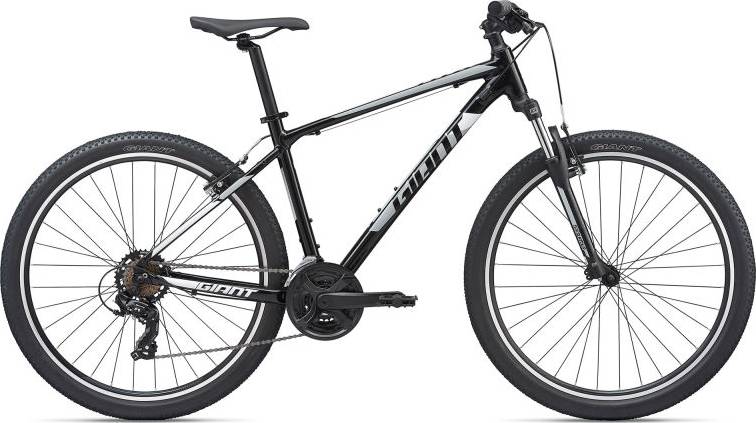

Giant ATX 3 2020
2020 Urban
Estimate price |
430$
Weight | 13.32 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" / 650b -
Travel Front 75mm -
Fork SunTour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Brakes Rim
Sizing
Recommended size guide.
XXS
152cm - 158cm
XS
156cm - 163cm
SM
161cm - 171cm
MD
169cm - 176cm
LG
174cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum
Suspension Fork
SR Suntour M3030A 26/27.5", 75mm, preload adjustable
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano Tourney
Shift Levers
Shimano EF41
Cassette
Shimano MF-TZ500, 14x34
Crank
Prowheel forged, 24/34/42
Bottom Bracket
cartridge
Chain
KMC Z7
Pedals
platform
Wheels
Front Hub
alloy, sealed bearing
Rear Hub
alloy, sealed bearing
Rims
Giant GX06 26/27.5, alloy, double wall, 19mm inner width
Spokes
stainless, 14g
Tires
Giant QuickCross 27.5x2.1/26x2.1
Brakes
Brakes
MTB alloy linear pull
Brake Levers
Shimano EF41
Cockpit
Stem
Giant Sport, alloy, 15-degree
Handlebar
Giant Sport, 25.4, alloy
Seat
Saddle
Giant custom
Seatpost
Giant Sport, 30.9x350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.42 mm | 1.44 mm | 1.46 mm | 1.5 mm |
| Front Center | 647 mm | 658 mm | 650 | 661 mm | 684 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 92.5 mm | 92.5 mm | 92.5 mm | 92.5 mm | 92.5 mm |
| Stack | 557 mm | 566 mm | 582 mm | 596 mm | 629 mm |
| Reach | 391 mm | 399 mm | 404 mm | 409 mm | 419 mm |
| Top Tube Length | 556 mm | 566 mm | 576 mm | 591 mm | 611 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 350 mm | 385 mm | 420 mm | 455 mm | 505 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 95 mm | 110 mm | 145 mm |
| Chainstay Length | 421 mm | 421 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1066 mm | 1077 mm | 1081 mm | 1092 mm | 1115 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 689 mm | 711 mm | 722 mm | 748 mm | 790 mm |
| Wheels | 26" | 26" | 650 | 650 | 650 |
| Rider Min Height | 152 cm | 156 cm | 161 cm | 169 cm | 174 cm |
| Rider Max Height | 158 cm | 163 cm | 171 cm | 176 cm | 185 cm |
About this model
ATX 3 is a Giant Atx model. Giant launched 16 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Giant ATX 3 2020 is the cheapest bike model and costs 430$. Giant ATX 1 2020 is the most expensive one and costs 546$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter bikes
If you want an acceptable Commuter bike you should know that the average price is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2020 and its price was 430$. In conclusion, this bike price is 77.21% smaller than the price of the average Commuter bike.
Average weight for Commuter bikes
On a deeper look, we notice that the average weight of a Commuter bike is 14.29 kg (31.5 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit lighter than average, ATX 3 has a weight of 13.32 kg (29.37 lbs). In other words, this model is 7.28% lighter than the average Commuter bike.
Overview of components
Fork
The fork installed on this bike is the SunTour model. The travel on this model is 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the ATX 3 model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Giant ATX 3 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Giant ATX 3 bike has 5 sizes, in the range of 152 cm – 185 cm (4.99 ft – 6.07 ft). In conclusion, it won’t take much to find one that’s right for you.
