Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-Grade Aluminum
Suspension Fork
Advanced-Grade Composite, Alloy OverDrive Steerer
Rear Shock
N / A
Drivetrain
Rear Derailleur
Shimano 105 5700
Front Derailleur
Shimano R440
Shift Levers
Shimano R440
Cassette
Shimano HG-50 12x25, 9-Speed
Crank
Shimano Tiagra, 34/50
Bottom Bracket
Shimano, External
Chain
Shimano HG-73
Pedals
Shimano M505
Wheels
Front Hub
Formula Sealed Cartridge Bearing 24/28h
Rear Hub
Formula Sealed Cartridge Bearing 24/28h
Rims
Giant P-R2
Spokes
Sapim Race, 14/15g
Tires
Giant P-R3, 60 tpi, Flat Guard, 700x25, [F] & [R] Specific
Brakes
Brakes
Shimano Dual Pivot, Long Reach
Brake Levers
Tektro Alloy
Cockpit
Stem
Giant Connect
Handlebar
Giant Contact, Flat 31.8
Seat
Saddle
Selle Royal Seta W
Seatpost
Giant Connect SL Composite, 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Top Tube Length | 530 mm | 545 mm | 560 mm | 575 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1009 mm | 1010 mm | 1015 mm | 1025 mm |
| Standover Height | 742 mm | 765 mm | 792 mm | 815 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |

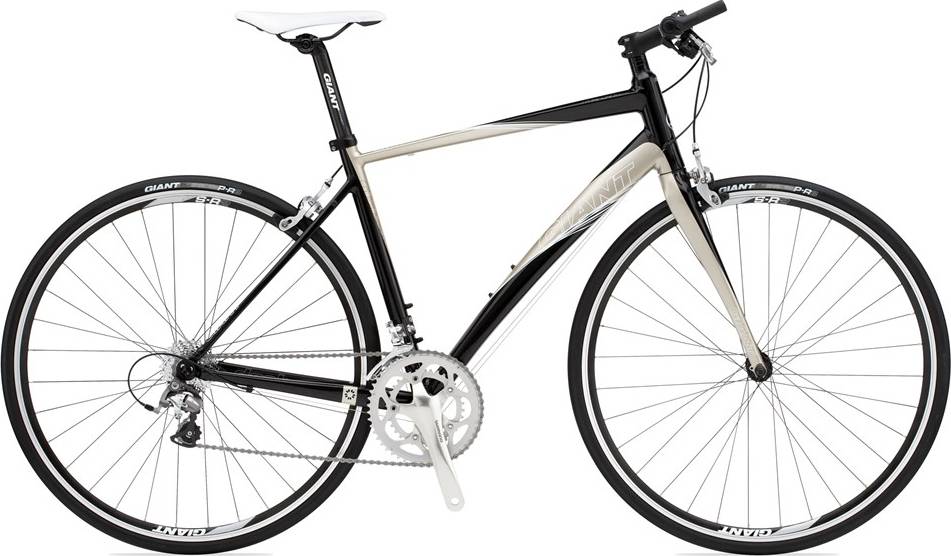

About this model
Dash 1 completes the Giant Dash model. Giant released 11 bikes variations of this model so far. You can easily view all of the Giant Dash bikes models from 2011, here.
Model range prices
Giant Dash 3 2011 is the most economical model, with a starting price of 680$. Giant Dash 1 2011 on the other hand costs 1150$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Giant released this model in 2011, its price was 1150$. If we compare this with the average Hybrid bike cost we notice that the price is 104.63% more expensive.
Dash 1 components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on Dash 1 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Dash 1 has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Dash 1 comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
