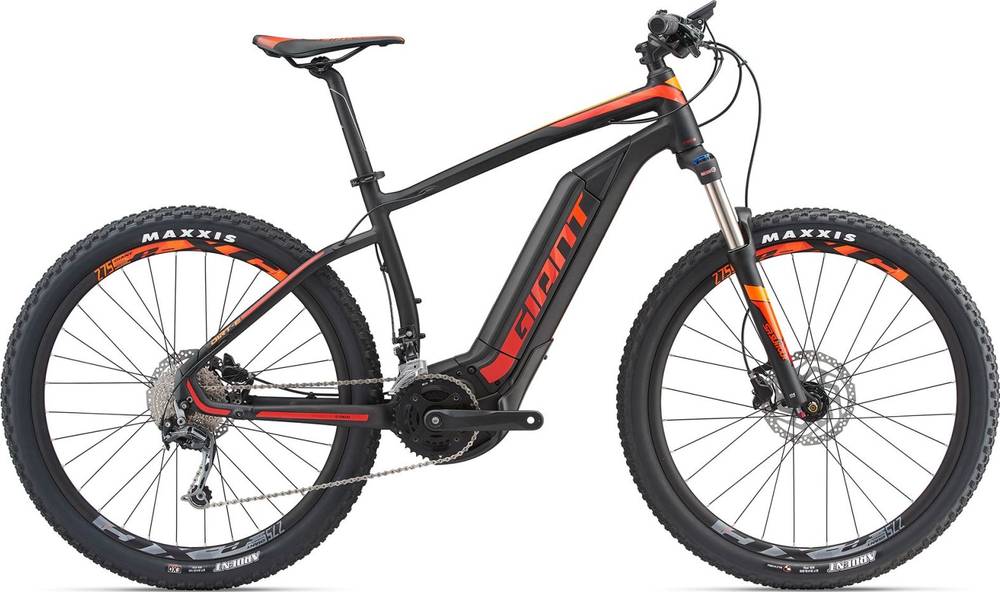

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCR 32
-
Groupset Deore, Acera -
Suspension Hardtail -
Motor Yamaha 80Nm hub-drive -
Battery Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum
Suspension Fork
SR Suntour XCR 32 LO-R, OverDrive, lockout, 120mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore Shadow
Front Derailleur
Shimano Deore
Shift Levers
Shimano Acera
Cassette
Shimano HG 201-9 11x36, 9-Speed
Crank
FSA, 24/38
Bottom Bracket
N/A
Chain
KMC X.9e, e-bike optimized
Pedals
Alloy Platform
Wheels
Front Hub
[F] Giant eTracker 15mm Thru-Axle, sealed bearings, 28h,[R]Giant eTracker 135mm QR, e-bike optimized, 32h
Rear Hub
[F] Giant eTracker 15mm Thru-Axle, sealed bearings, 28h,[R]Giant eTracker 135mm QR, e-bike optimized, 32h
Rims
Giant eX2 Disc, Tubeless, e-bike optimized
Spokes
Stainless Steel, [F] 14g [R] 13g
Tires
Maxxis Ardent, 27.5x2.4, EXO, 60 TPI, TLR
Brakes
Brakes
Shimano M315, hydraulic disc, 180mm
Brake Levers
Shimano M315
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect Trail, 31.8mm
Seat
Saddle
Giant Contact Neutral
Seatpost
Giant Connect, 30.9
Motor & Battery
Motor
Giant SyncDrive Sport, 80Nm, Powered by Yamaha
Battery
Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion
Remote
Giant RideControl Charge, grip launch control with walk assist, mini USB charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.49 mm | 1.48 mm | 1.46 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 659 mm | 679 mm | 700 | 721 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 610 mm | 610 mm | 628 mm | 643 mm |
| Reach | 390 mm | 410 mm | 424 mm | 440 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 455 mm | 505 mm | 535 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 135 mm | 135 mm | 155 mm | 170 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1117 mm | 1137 mm | 1158 mm | 1179 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 750 mm | 779 mm | 812 mm | 833 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Dirt-E+ 2 is a Giant E Dirt Eplus model. 4 e-bikes variations carry this model name so far. Take a sneak peek at all Giant E Dirt Eplus e-bikes models from 2018, by clicking here.
Model range prices
Giant Dirt-E+ 2 2018 is the most economical model, with a starting price of 2600$. Giant Dirt-E+ 0 Pro 2018 on the other hand costs 4340$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Giant Dirt-E+ 2 price was 2600$. Comparing this to the average Trail e-bike price, we see that the price is 29.42% lower.
Overview of components
Fork
The fork installed on this bike is the SunTour XCR 32 model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Giant Dirt-E+ 2 2018, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Dirt-E+ 2 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Giant Dirt-E+ 2 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
