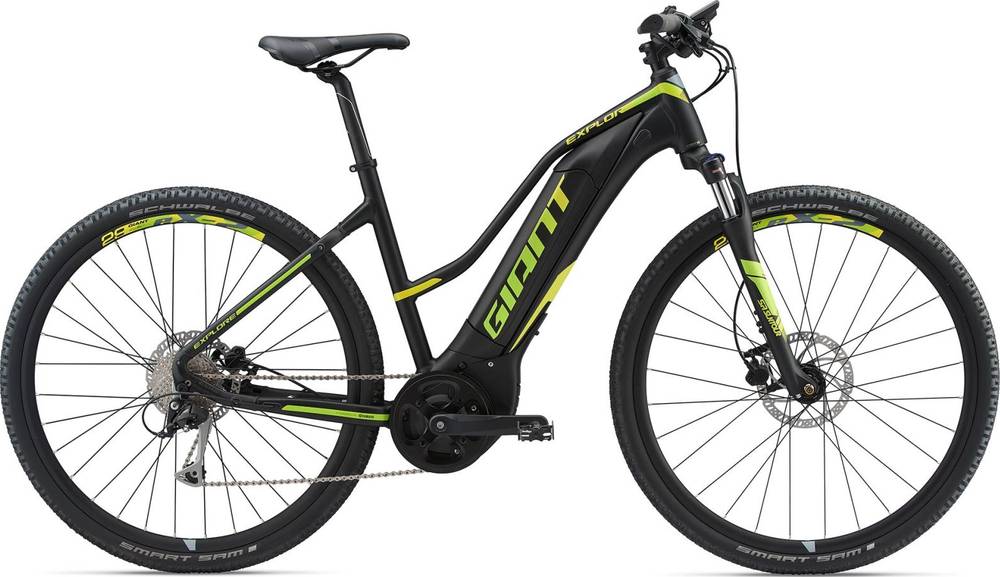

Giant Explore E+ 3 Mid-Step 2018
2018 E-bike
Estimate price |
2,400$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Alivio, Acera -
Suspension Hardtail -
Motor Yamaha 80Nm hub-drive -
Battery Giant EnergyPak400, 36V, 11.3Ah, Rechargeable Lithium-Ion -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, Mid-Step
Suspension Fork
SR Suntour NEX E25 HLO, OverDrive, 63mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Alivio Shadow
Front Derailleur
N/A
Shift Levers
Shimano Acera
Cassette
Shimano HG 201-9 11x34, 9-Speed
Crank
FSA, 42T
Bottom Bracket
N/A
Chain
KMC X.9e, E-Bike Specific
Pedals
Alloy Platform
Wheels
Front Hub
Giant eTracker, sealed cartridge bearings[F] 15mm Thru-Axle, 28h,[R] 135mm QR, e-bike optimized, 32h
Rear Hub
Giant eTracker, sealed cartridge bearings[F] 15mm Thru-Axle, 28h,[R] 135mm QR, e-bike optimized, 32h
Rims
Giant eX2 Disc, Tubeless, e-bike optimized
Spokes
Stainless Steel, [F] 14g [R] 13g
Tires
Schwalbe Smart Sam, 700x47
Brakes
Brakes
Tektro M285, hydraulic disc, 180mm
Brake Levers
Tektro M285
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect Trail, 31.8mm
Seat
Saddle
Giant Contact Comfort upright
Seatpost
Giant Connect , 30.9
Motor & Battery
Motor
Giant SyncDrive Sport, 80Nm, Powered by Yamaha
Battery
Giant EnergyPak400, 36V, 11.3Ah, Rechargeable Lithium-Ion
Remote
Giant RideControl Charge, grip launch control with walk assist, mini USB charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.54 mm | 1.52 mm |
| Front Center | 649 mm | 658 mm | 679 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 91 mm | 91 mm | 91 mm |
| Stack | 610 mm | 619 mm | 634 mm |
| Reach | 384 mm | 402 mm | 417 mm |
| Top Tube Length | 571 mm | 591 mm | 611 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1113 mm | 1122 mm | 1143 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 683 mm | 677 mm | 666 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Explore E+ 3 Mid-Step belongs to the Giant E Explore model. Giant released 72 e-bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Giant Explore E+ 3 Mid-Step 2018 is the most affordable e-bike of this model and has a price of 2400$. On the other hand, Giant Explore E+ 3 2018, is the most expensive and costs 2400$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2018 and its price was 2400$. In conclusion, this e-bike price is 3.33% smaller than the price of the average Hybrid e-bike.
Overview of components
Fork
This e-bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the Explore E+ 3 Mid-Step e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
