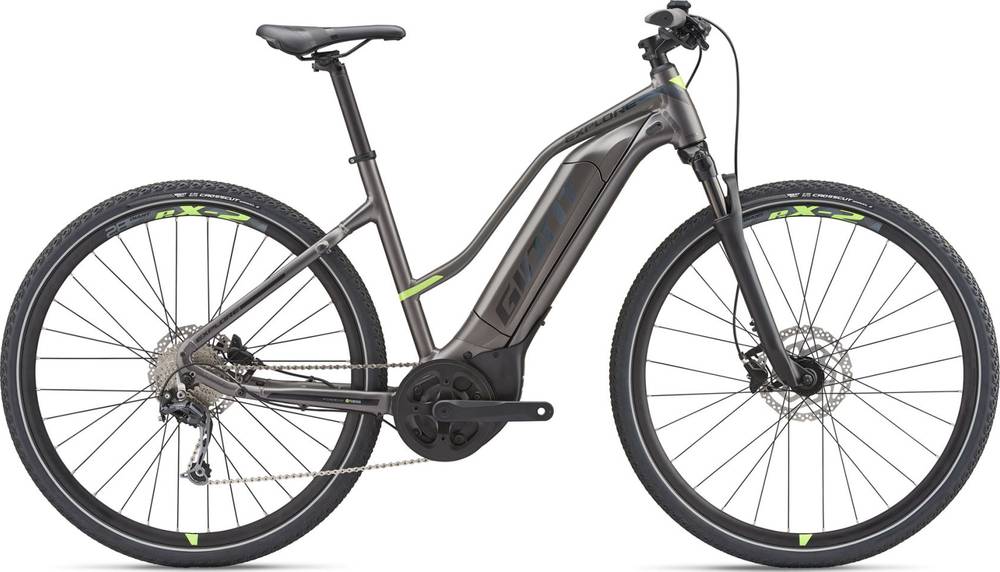

Giant Explore E+ 3 Step Thru 2019
2019 E-bike
Estimate price |
2,400$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork RST
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Yamaha 80Nm hub-drive -
Battery Giant EnergyPak 400, 36V 11.3Ah Rechargeable Lithium-Ion -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminum, Overdrive 1½ - 1?" head tube, integrated KS18 kickstand mount
Suspension Fork
RST Volante, 60mm travel, tappered steerer, hydraulic lockout
Drivetrain
Rear Derailleur
Shimano Deore
Shift Levers
Shimano SL-M2000
Cassette
Shimano CS-HG201, 11-36T, 9-Speed
Crank
Forged Alloy minimal Q-factor, 42T
Chain
KMC e.9 Sport, e-bike optimized
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR, e-bike optimized
Rear Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR, e-bike optimized
Rims
Giant eX 2, Tubeless Ready, 700c aluminium, e-bike optimized
Spokes
Stainless steel
Tires
Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180mm
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect XC Riser
Seat
Saddle
Giant Contact Comfort, Upright
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Sport, 80Nm powered by YAMAHA, 350% tuneable support
Battery
Giant EnergyPak 400, 36V 11.3Ah Rechargeable Lithium-Ion
Remote
Giant RideControl ONE, remote button
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.55 mm | 1.52 mm |
| Front Center | 664 mm | 673 mm | 694 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 91 mm | 91 mm | 91 mm |
| Stack | 611 mm | 620 mm | 634 mm |
| Reach | 396 mm | 401 mm | 417 mm |
| Top Tube Length | 571 mm | 591 mm | 611 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1113 mm | 1122 mm | 1143 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 746 mm | 776 mm | 809 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Explore E+ 3 Step Thru is part of the Giant E Explore model. Giant launched 72 e-bikes of this model so far. You can easily view all of the Giant E Explore e-bikes models from 2019, here.
Model range prices
Giant Explore E+ 3 2019 is the most affordable e-bike of this model and has a price of 2400$. On the other hand, Giant Explore E+ 3 2019, is the most expensive and costs 2575$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Giant released this model in 2019, its price was 2400$. Comparing this to the average Hybrid e-bike price, we see that the price is 3.33% smaller.
Explore E+ 3 Step Thru components
Fork
This e-bike has the RST fork installed. The fork’s travel is 60mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Explore E+ 3 Step Thru 2019 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Explore E+ 3 Step Thru has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
