Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 80Nm mid-drive -
Battery Giant EnergyPak Smart integrated 625, 36V integrated Lithium-Ion -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
XL
183cm - 193cm
XXL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminum, Overdrive 1½ - 1?" head tube, integrated KS18 kickstand mount
Suspension Fork
SR Suntour NEX E25 NLO 63mm travel 15AH
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore, 10-Speed, Shadow+
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano CS-M4100, 11-42T, 10-Speed
Crank
Forged Alloy minimal Q-factor, 36/48T
Bottom Bracket
N/A
Chain
KMC e.10 Sport, e-bike optimized
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, [F] 15mm Axle [R] 135mm QR
Rear Hub
Giant eTracker, [F] 15mm Axle [R] 135mm QR
Rims
Giant eX 2, Tubeless Ready, 700c Aluminium
Spokes
Stainless steel
Tires
Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180mm
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect XC Riser 31.8x690mm
Seat
Saddle
Selle Royal Vivo Ergo Moderate
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Sport
Battery
Giant EnergyPak Smart integrated 625, 36V integrated Lithium-Ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.55 mm | 1.52 mm | 1.5 mm | 1.5 mm |
| Front Center | 664 mm | 673 mm | 694 mm | 714 mm | 714 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 91.3 mm | 91.3 mm | 91.3 mm | 91.3 mm | 91 mm |
| Stack | 611 mm | 620 mm | 634 mm | 649 mm | 649 mm |
| Reach | 396 mm | 401 mm | 417 mm | 433 mm | 433 mm |
| Top Tube Length | 571 mm | 591 mm | 611 mm | 631 mm | 651 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm | 585 mm | 610 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1113 mm | 1122 mm | 1143 mm | 1164 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 746 mm | 776 mm | 809 mm | 845 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 183 cm | 190 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm | 193 cm | 200 cm |
Model Overview

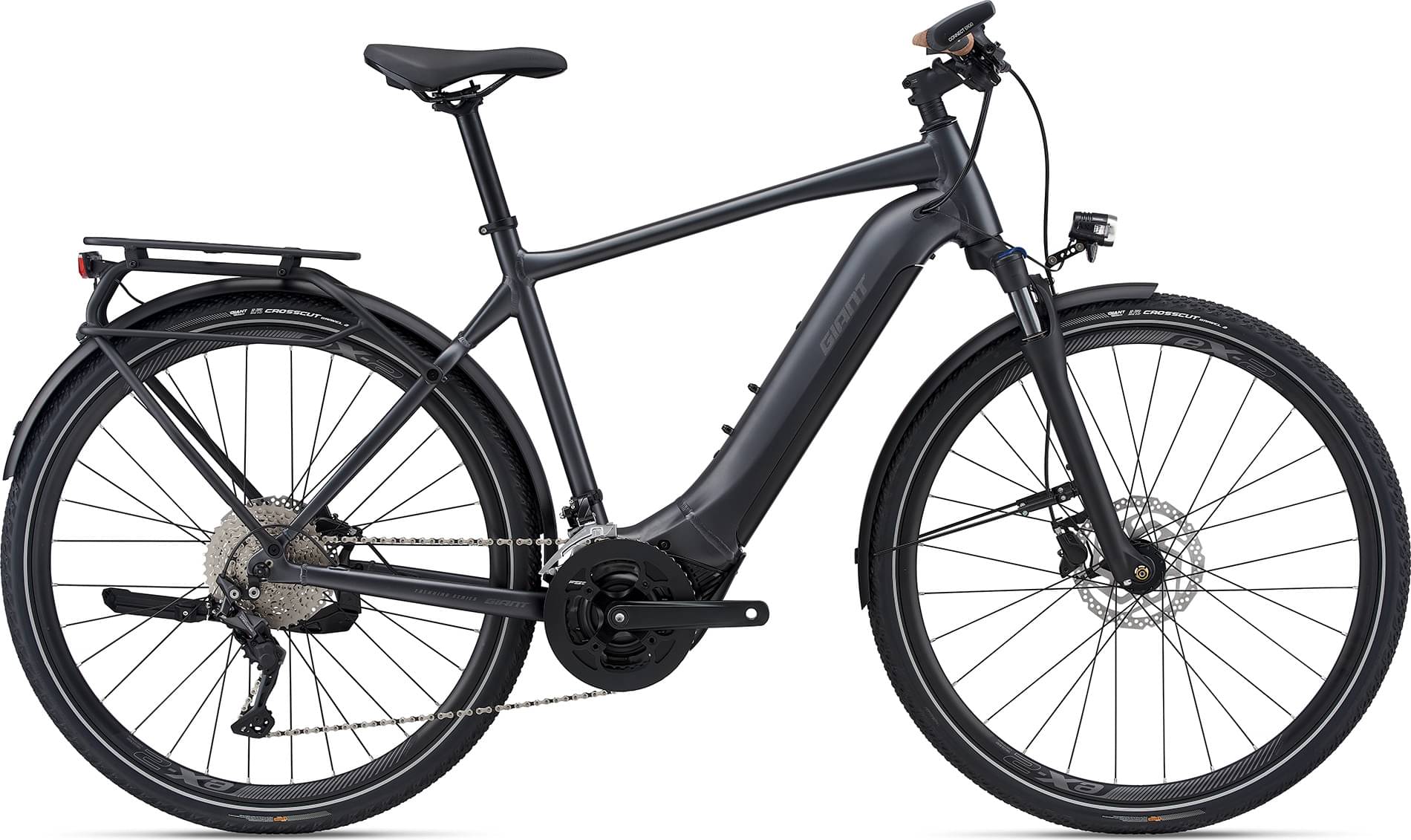

Explore E+ 1, 625Wh GTS is a Giant E Explore model. There are 72 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Giant Explore E+, 3 GTS 2021 has a starting price of 2760$. Giant Explore E+ 0 Pro Stagger Frame Electric Bike 2021 on the other hand is the most expensive at 5361$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Explore E+ 1, 625Wh GTS components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Giant Explore E+ 1, 625Wh GTS 2021, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Explore E+ 1, 625Wh GTS has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Giant Explore E+ 1, 625Wh GTS e-bike has 5 sizes, in the range of 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
