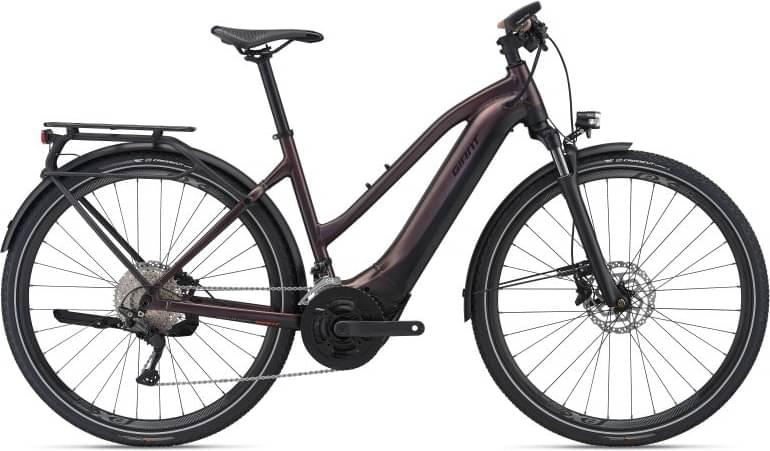

Giant Explore E+ 1 Pro D STA 2022
2022 E-bike
Estimate price |
5,285$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 80Nm mid-drive -
Battery EnergyPak Smart 625Wh -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
XL
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum, Overdrive 1.5 - 1.125" head tube, integrated KS18 kickstand moun
Suspension Fork
SR Suntour NCX D AIR LO 63mm travel 15AH
Rear Shock
-
Drivetrain
Rear Derailleur
Shimano Deore, 11-speed, Shadow+
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano CS-M5100, 11-42T, 11-speed
Crank
Forged Alloy minimal Q-factor, 36/48T
Bottom Bracket
N/A
Chain
KMC e.11 Sport, e-bike optimized
Pedals
platform
Wheels
Front Hub
Giant eTracker, sealed cartridge bearings [F] 15mm Thru-Axle [R] 142x12 Thru-axle
Rear Hub
Giant eTracker, sealed cartridge bearings [F] 15mm Thru-Axle [R] 142x12 Thru-axle
Rims
Giant eX 2, Tubeless Ready, 700c Aluminium
Spokes
Sapim E-Lite [r] Race [f], e-bike optimized
Tires
Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex
Brakes
Brakes
Shimano BR-MT410, hydraulic disc, 180mm
Brake Levers
Shimano BL-M4100, I-spec EV
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect XC Riser 31.8x690mm
Grips
Giant Contact Ergo Max Plus
Seat
Saddle
Selle Royal Vivo Ergo
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminum
Motor & Battery
Motor
SyncDrive Pro, 80Nm, powered by Yamaha
Battery
EnergyPak Smart 625Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.57 mm | 1.55 mm | 1.5 mm |
| Front Center | 664 mm | 673 mm | 694 mm | 714 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 91.3 mm | 91.3 mm | 91.3 mm | 91.3 mm |
| Stack | 592 mm | 606 mm | 620 mm | 649 mm |
| Reach | 381 mm | 386 mm | 401 mm | 433 mm |
| Top Tube Length | 571 mm | 591 mm | 611 mm | 631 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm | 585 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1113 mm | 1122 mm | 1143 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 683 mm | 677 mm | 666 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 183 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm | 193 cm |
About this model
Explore E+ 1 Pro D STA completes the Giant E Explore model. There are 72 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Giant Explore E+, 3 GTS 2022 is the most affordable e-bike of this model and has a price of 3078$. On the other hand, Giant Explore E+ 1 Pro D GTS 2022, is the most expensive and costs 4804$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4804$. If we compare this with the average Hybrid e-bike cost we notice that the price is 93.71% higher.
Overview of components
Fork
This e-bike has the Suntour NCX fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Giant Explore E+ 1 Pro D STA 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Giant Explore E+ 1 Pro D STA e-bike has 4 sizes, in the range of 162 cm – 193 cm (5.31 ft – 6.33 ft). In short, you can easily find one that suits you.
