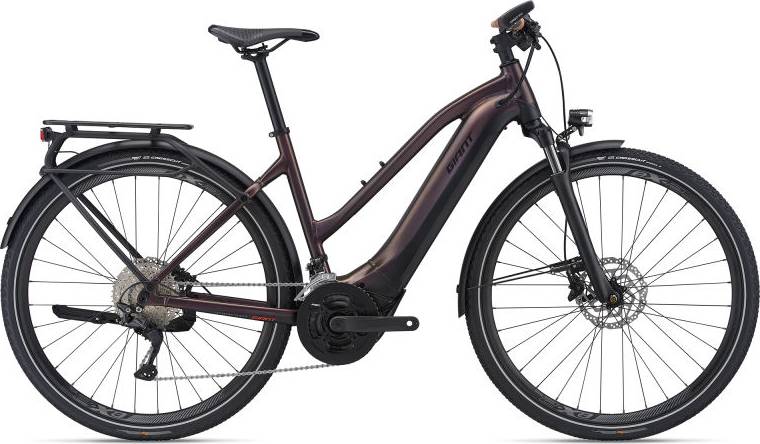

Giant Explore E+ 1 Pro STA 2021
2021 E-bike
Estimate price |
3,431$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Giant 250W 80Nm mid-drive -
Battery Giant EnergyPak Smart 625, 36V Integrated Lithium-Ion -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminum, Overdrive 1½ - 1?" head tube, integrated KS18 kickstand mount
Suspension Fork
SR Suntour NCX D AIR LO 63mm travel 15AH
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore, 11-Speed, Shadow+
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano CS-M5100, 11-42T, 11-Speed
Crank
Forged Alloy minimal Q-factor, 36/48T
Bottom Bracket
N/A
Chain
KMC e.11 Sport, e-bike optimized
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, sealed cartridge bearings [F] 15mm Thru-Axle [R] 142x12 Thru-axle
Rear Hub
Giant eTracker, sealed cartridge bearings [F] 15mm Thru-Axle [R] 142x12 Thru-axle
Rims
Giant eX 2, Tubeless Ready, 700c Aluminium
Spokes
Sapim E-Lite [r] Race [f], e-bike optimized
Tires
Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex
Brakes
Brakes
Shimano BR-MT410, hydraulic disc, 180mm
Brake Levers
Shimano BL-M4100, I-spec EV)
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect XC Riser 31.8x690mm
Seat
Saddle
Selle Royal Vivo Ergo Moderate Unisex
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Pro
Battery
Giant EnergyPak Smart 625, 36V Integrated Lithium-Ion
Remote
Giant RideDash EVO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.57 mm | 1.55 mm |
| Front Center | 664 mm | 673 mm | 694 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 91.3 mm | 91.3 mm | 91.3 mm |
| Stack | 592 mm | 606 mm | 620 mm |
| Reach | 381 mm | 386 mm | 401 mm |
| Top Tube Length | 571 mm | 591 mm | 611 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 140 mm | 155 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1113 mm | 1122 mm | 1143 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 683 mm | 677 mm | 666 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 176 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm |
About this model
Explore E+ 1 Pro STA belongs to the Giant E Explore model. 72 e-bikes variations carry this model name so far. You can easily view all of the Giant E Explore e-bikes models from 2021, here.
Model range prices
Giant Explore E+, 3 GTS 2021 is the most economical model, with a starting price of 2760$. Giant Explore E+ 0 Pro Stagger Frame Electric Bike 2021 on the other hand costs 5361$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Giant released this model in 2021, its price was 3470$. Doing a quick comparison, we notice that Explore E+ 1 Pro STA price is 39.92% higher than the average cost of a Hybrid e-bike.
Explore E+ 1 Pro STA components
Fork
The Explore E+ 1 Pro STA comes factory-installed with the SunTour NCX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Explore E+ 1 Pro STA are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Explore E+ 1 Pro STA has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 162 cm – 186 cm (5.31 ft – 6.1 ft). In conclusion, you won’t have a problem finding one that suits you.
