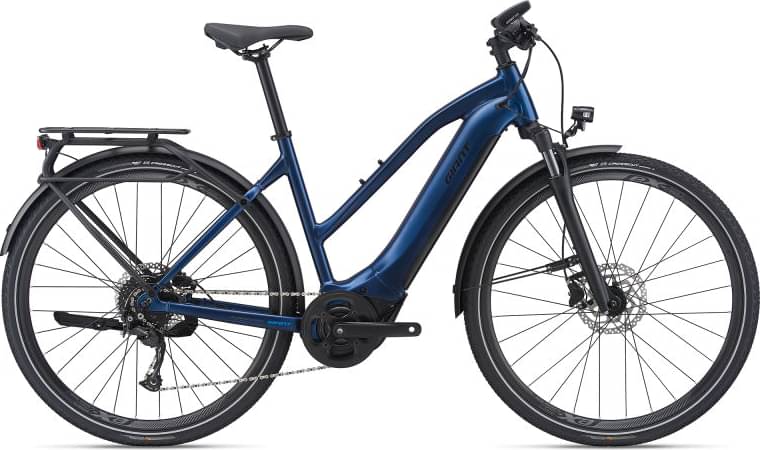

Giant Explore E+ 2 Stagger Frame Electric Bike 2021
2021 E-bike
Estimate price |
4,071$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Alivio, Shimano -
Suspension Hardtail -
Motor Giant 250W 80Nm mid-drive -
Battery Giant EnergyPak Smart 500, 36V integrated Lithium-Ion -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminium, Overdrive 1½ - 1?" head tube, integrated KS18 kickstand mount, compatible with fenders
Suspension Fork
SR Suntour NEX E25 DS 63mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Alivio M3100, 9-Speed
Front Derailleur
-
Shift Levers
Shimano SL-M2000
Cassette
Shimano CS-HG200, 11-36T, 9-Speed
Crank
Forged Alloy minimal Q-factor, 42T
Bottom Bracket
N/A
Chain
KMC e.9 Sport, e-bike optimised
Pedals
Aluminium Platform
Wheels
Front Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR
Rear Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR
Spokes
Stainless steel
Tires
Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex (max tyre width possible: 47mm)
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180mm
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect XC Riser 31.8x690mm
Seat
Saddle
Selle Royal Vivo Ergo Moderate
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Sport
Battery
Giant EnergyPak Smart 500, 36V integrated Lithium-Ion
Remote
Giant RideDash EVO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.54 mm | 1.52 mm |
| Front Center | 664 mm | 673 mm | 694 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 91.3 mm | 91.3 mm | 91.3 mm |
| Stack | 610 mm | 619 mm | 634 mm |
| Reach | 384 mm | 402 mm | 417 mm |
| Top Tube Length | 571 mm | 591 mm | 611 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1113 mm | 1122 mm | 1143 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 683 mm | 677 mm | 666 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Explore E+ 2 Stagger Frame Electric Bike is a Giant E Explore model. 72 e-bikes variations carry this model name so far. Take a sneak peek at all Giant E Explore e-bikes models from 2021, by clicking here.
Model range prices
Giant Explore E+, 3 GTS 2021 is the cheapest e-bike model and costs 2760$. Giant Explore E+ 0 Pro Stagger Frame Electric Bike 2021 is the most expensive one and costs 5361$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Giant released this model in 2021, its price was 3768$. In conclusion, this e-bike price is 51.94% more expensive than the price of the average Hybrid e-bike.
Explore E+ 2 Stagger Frame Electric Bike components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Explore E+ 2 Stagger Frame Electric Bike 2021 e-bike is equipped with 700c wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Explore E+ 2 Stagger Frame Electric Bike has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Giant Explore E+ 2 Stagger Frame Electric Bike e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
