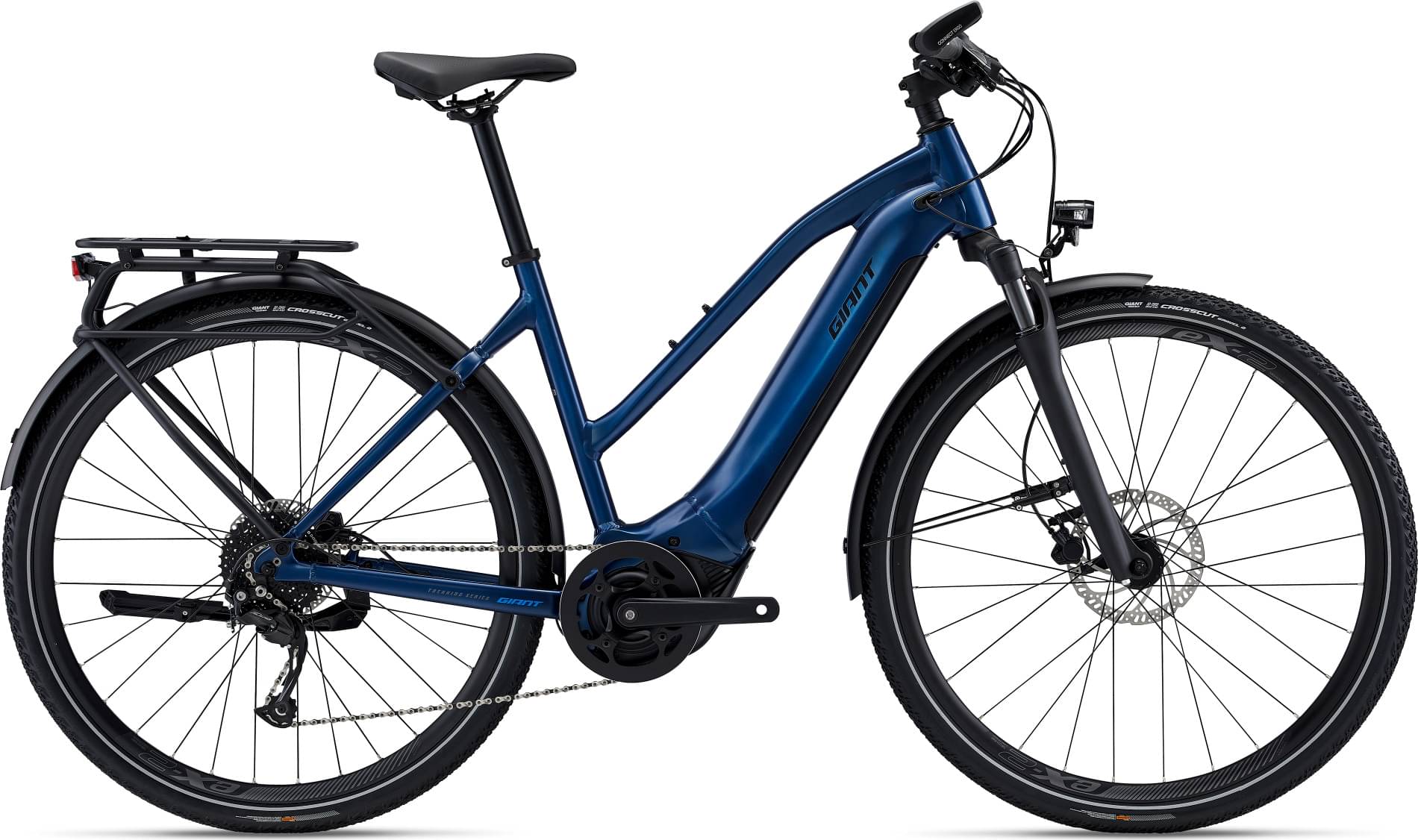

Giant Explore E+, 2D STA 2022
2022 E-bike
Estimate price |
3,497$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio, Altus -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery EnergyPak Smart 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
XL
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX Aluminum, Overdrive 1½ - 1?" head tube, integrated KS18 kickstand mount
Suspension Fork
SR Suntour NEX E25 NLO DS 63mm travel
Rear Shock
-
Drivetrain
Rear Derailleur
Shimano Alivio, 9-speed
Front Derailleur
-
Shift Levers
Shimano Altus
Cassette
Shimano CS-HG200, 11-36T, 9-speed
Crank
Forged Alloy minimal Q-factor, 42T
Bottom Bracket
-
Chain
KMC e.9 Sport, e-bike optimized
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR
Rear Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR
Rims
Giant eX2, Tubeless Ready, 700c Aluminium
Spokes
Stainless steel
Tires
Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex
Brakes
Brakes
Tektro HD-M275, hydraulic disc, 160/180mm
Brake Levers
Tektro HD-M275
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect Riser 31.8x690mm
Grips
Giant Contact Ergo Max Plus
Seat
Saddle
Selle Royal Vivo Ergo Moderate
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
SyncDrive Sport, 70Nm, powered by Yamaha
Battery
EnergyPak Smart 500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.54 mm | 1.52 mm | 1.5 mm |
| Front Center | 664 mm | 673 mm | 694 mm | 714 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 91.3 mm | 91.3 mm | 91.3 mm | 91.3 mm |
| Stack | 610 mm | 619 mm | 634 mm | 649 mm |
| Reach | 384 mm | 402 mm | 417 mm | 433 mm |
| Top Tube Length | 571 mm | 591 mm | 611 mm | 631 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm | 585 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1113 mm | 1122 mm | 1143 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 683 mm | 677 mm | 666 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 183 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm | 193 cm |
About this model
Explore E+, 2D STA is a Giant E Explore model. Giant released 72 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Giant Explore E+, 3 GTS 2022 is the most economical model, with a starting price of 3078$. Giant Explore E+ 1 Pro D GTS 2022 on the other hand costs 4804$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Giant Explore E+, 2D STA price was 3237$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Explore E+, 2D STA price is 30.52% more expensive.
Overview of components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Explore E+, 2D STA are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Explore E+, 2D STA has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Explore E+, 2D STA comes in 4 sizes, that range from 162 cm – 193 cm (5.31 ft – 6.33 ft). In conclusion, finding one for you shouldn’t be a problem.
