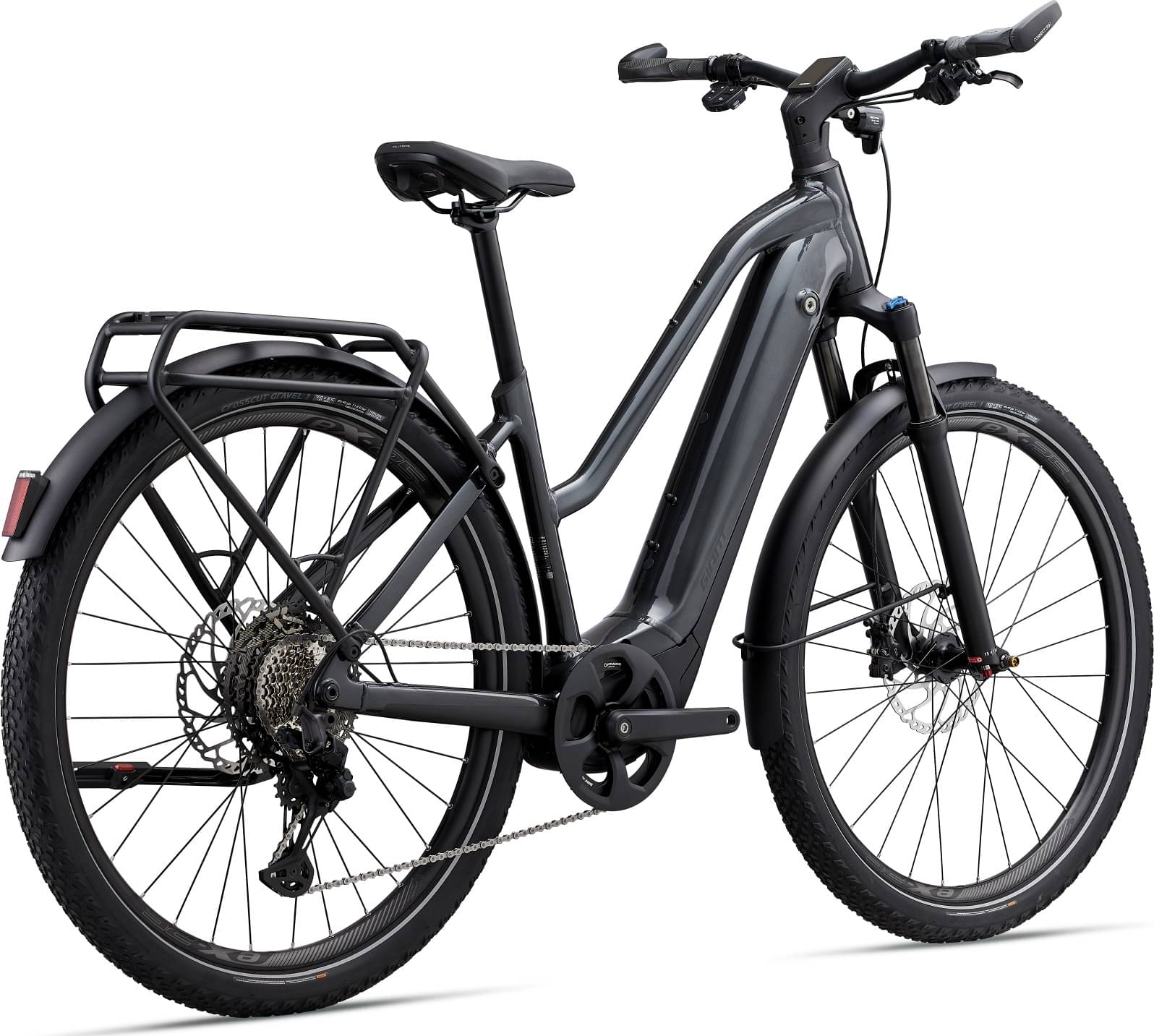

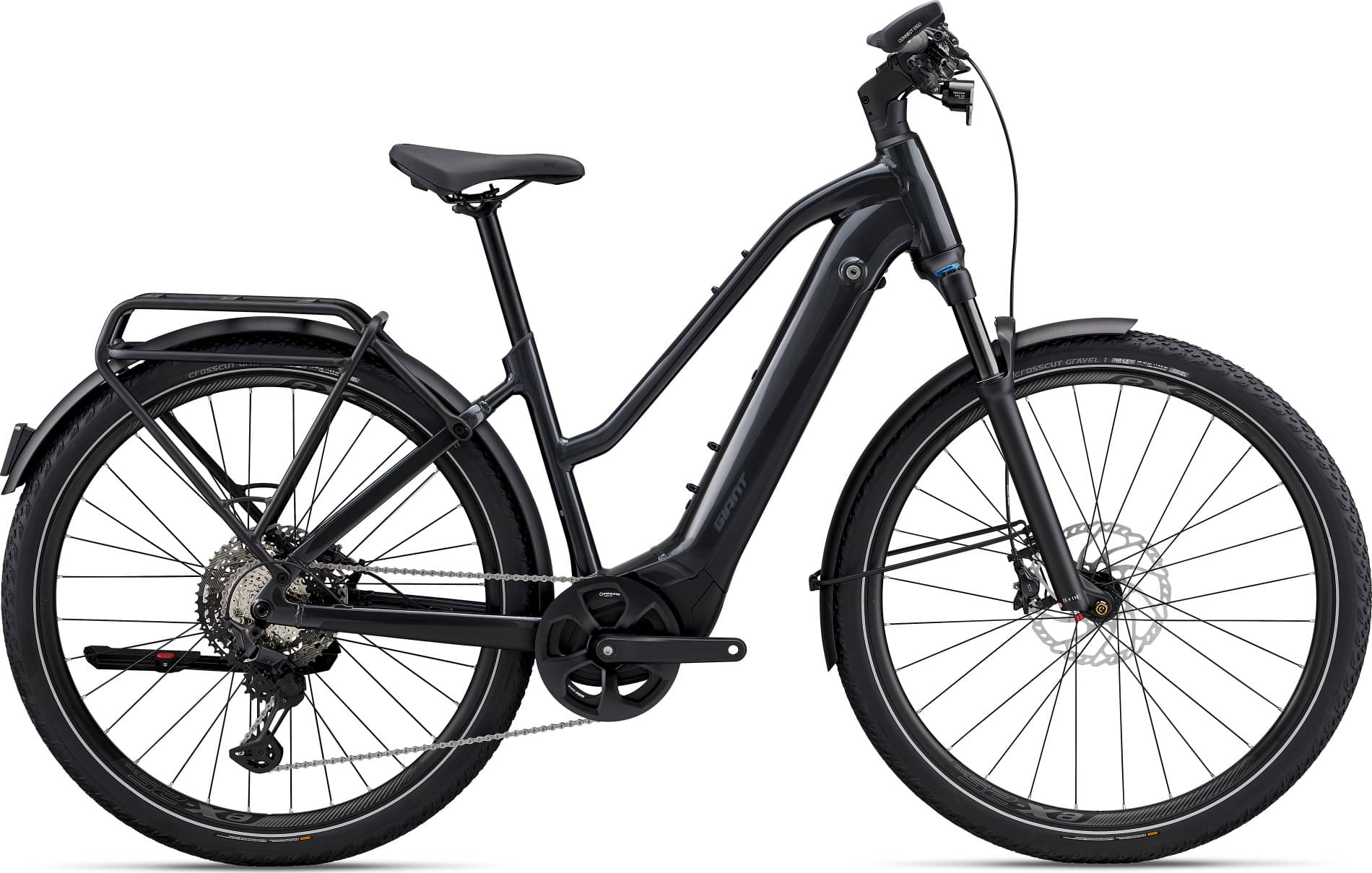

Giant Explore E+, Pro 0 STA 2023
2023 E-bike
Estimate price |
5,734$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset XT -
Suspension Hardtail -
Motor Yamaha 250W 85Nm mid-drive -
Battery Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604) -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
XL
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

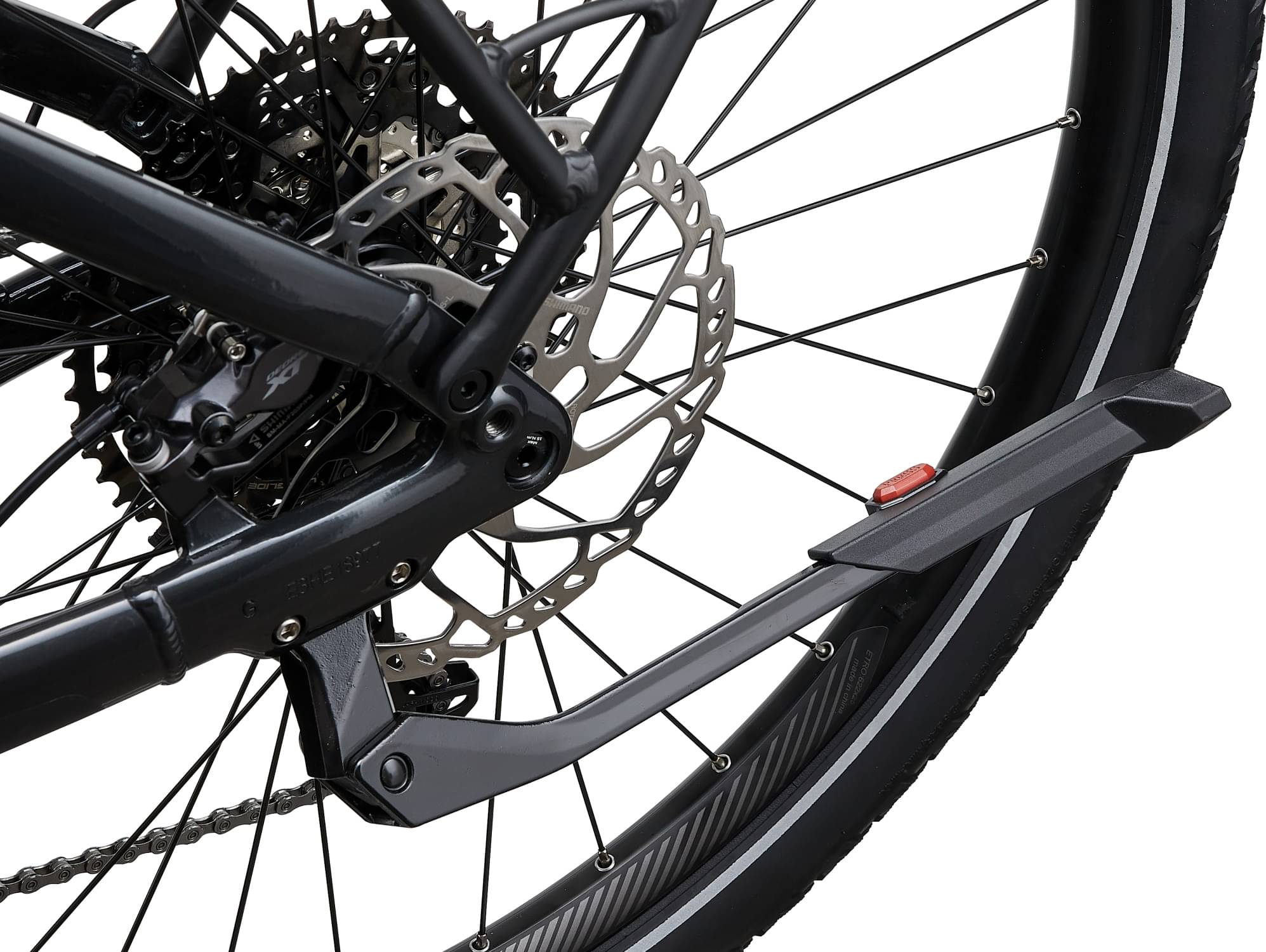

ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount

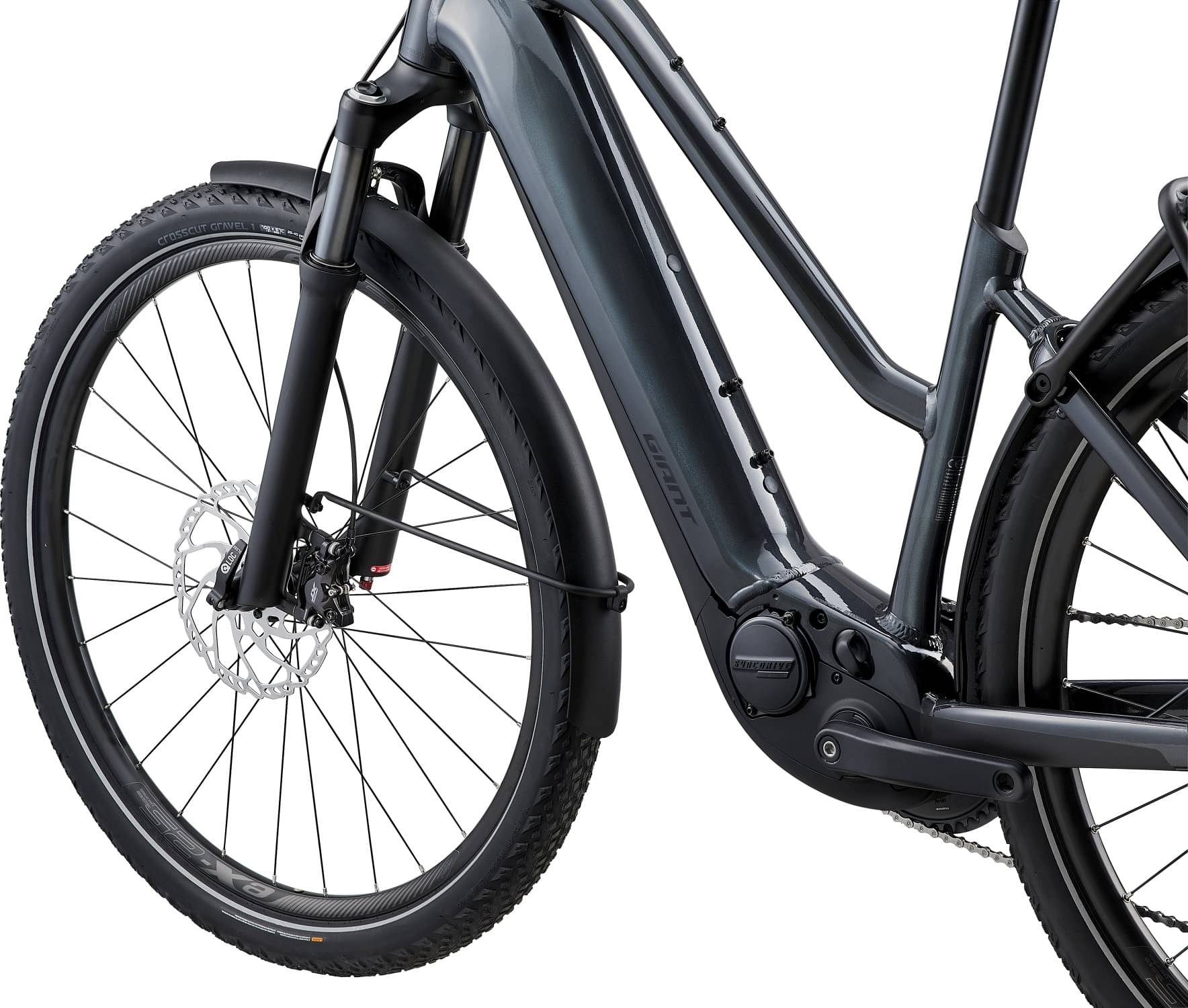

Suspension Fork
SR Suntour XCR34 Air Boost, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle
Drivetrain
Rear Derailleur
Shimano Deore XT, LinkGlide, 11-speed, Shadow+
Shift Levers
Shimano Deore XT, LinkGlide
Cassette
Shimano LinkGlide, CS-LG700-11 11-50T, 11-speed

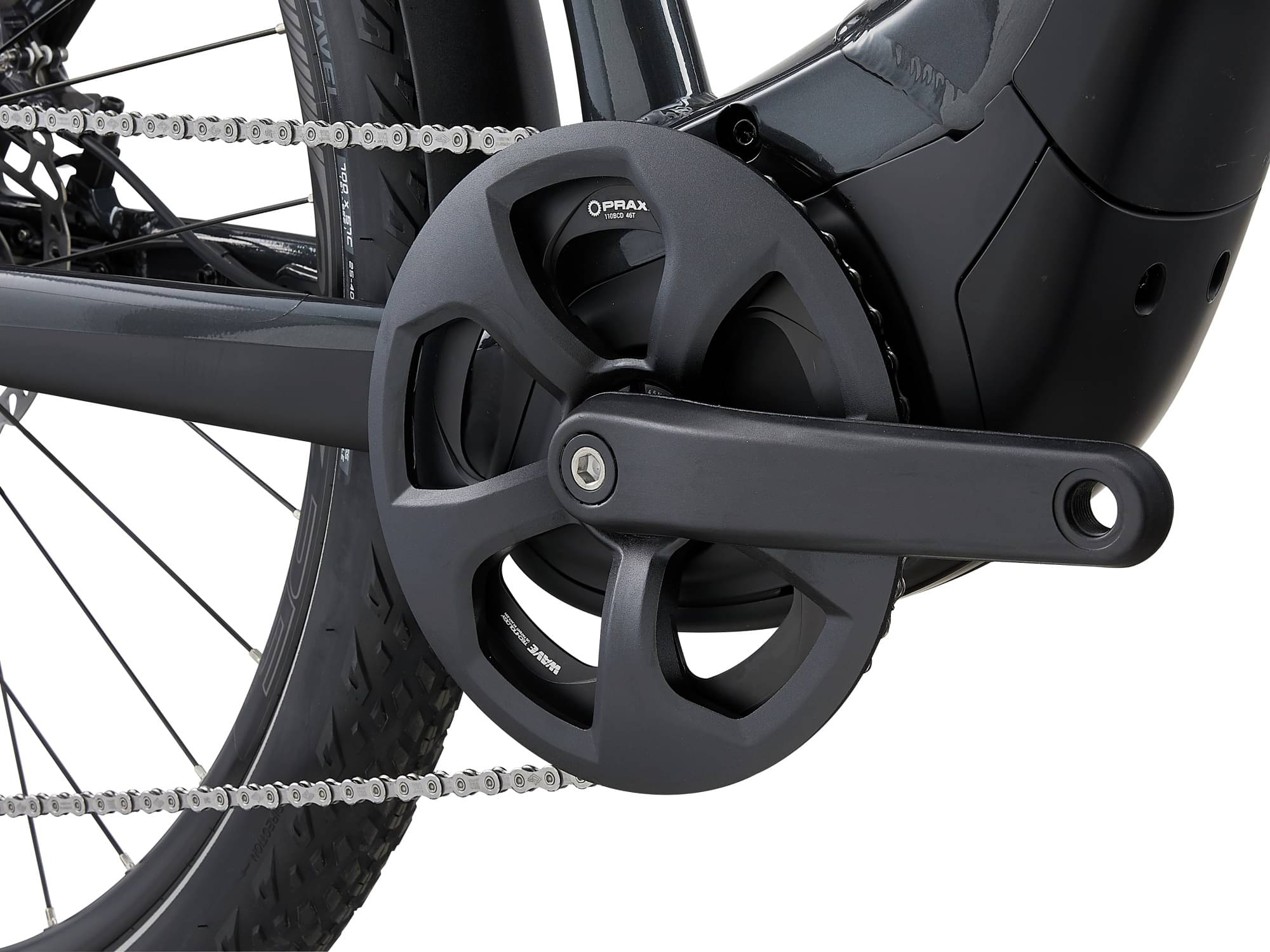

Crank
Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
Bottom Bracket
N/A
Chain
Shimano CN-LG500
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, [F] 110x15 [R] 148x12
Rear Hub
Giant eTracker, [F] 110x15 [R] 148x12
Rims
eX25, Tubeless Ready, 622x25 Aluminium
Spokes
Stainless steel, e-bike optimized
Tires
Crosscut Gravel 1, 700x57c, Foldable, Tubeless Ready
Brakes
Brakes
Shimano XT, hydraulic disc, 203mm
Brake Levers
Shimano XT

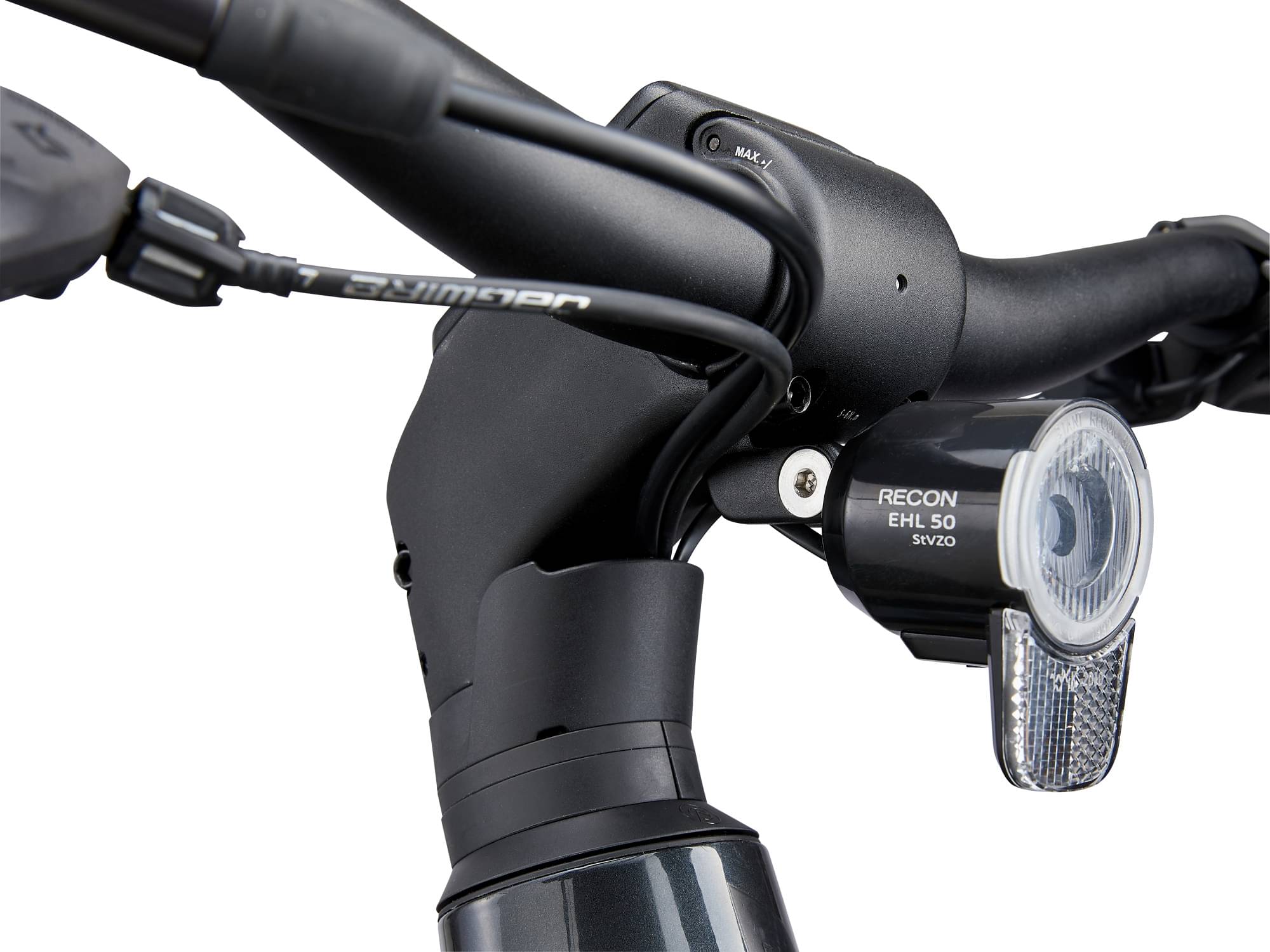

Cockpit
Stem
Giant Contour EVO integrated 16? (S/M:80mm L/XL/XXL 100mm)
Handlebar
Giant Contour Comfort Riser 31.8x690mm
Grips
Gant Connect Ergo Max Cork w/bar-end
Seat

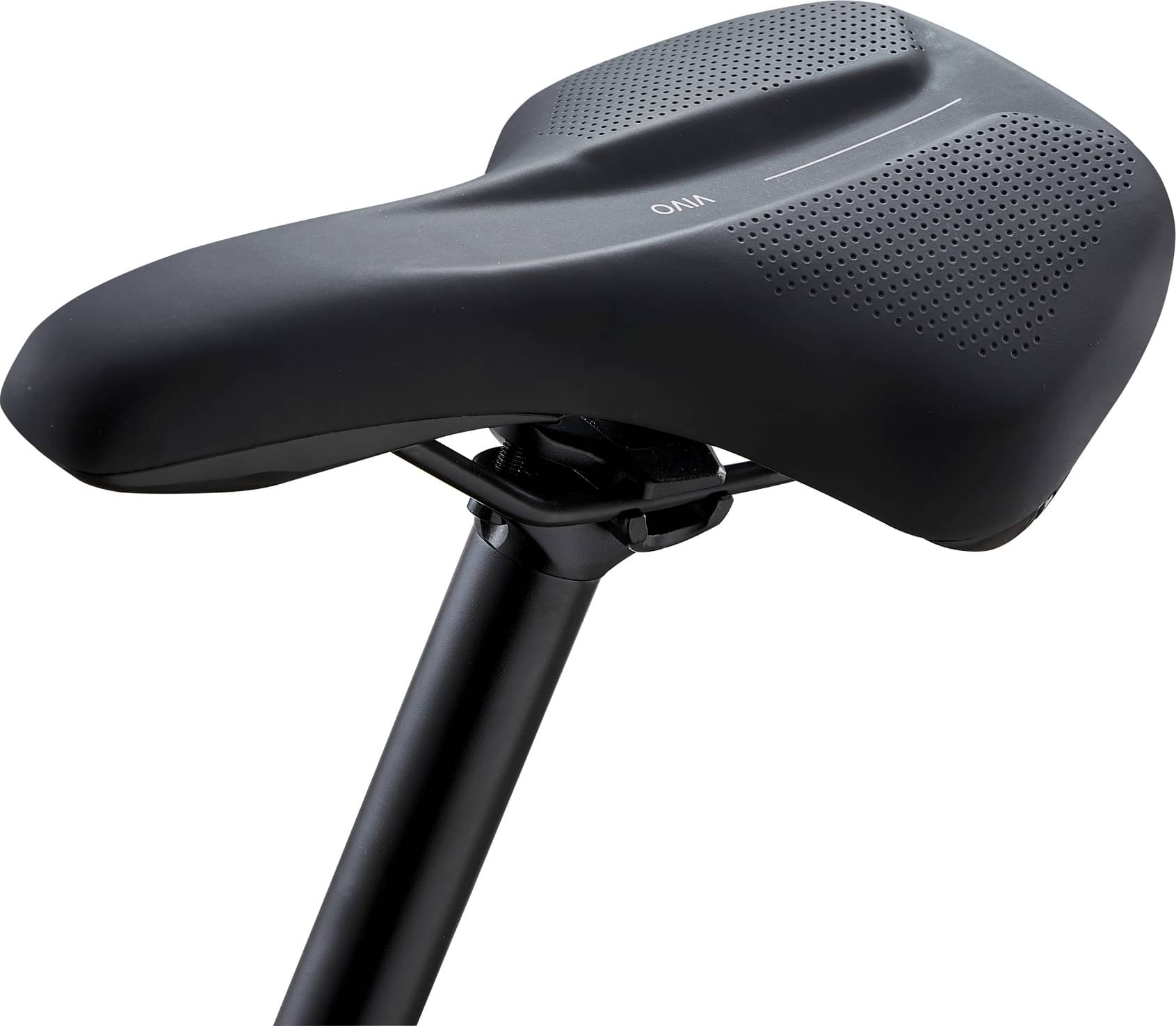

Saddle
Selle Royal Vivo Ergo Moderate Unisex
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery

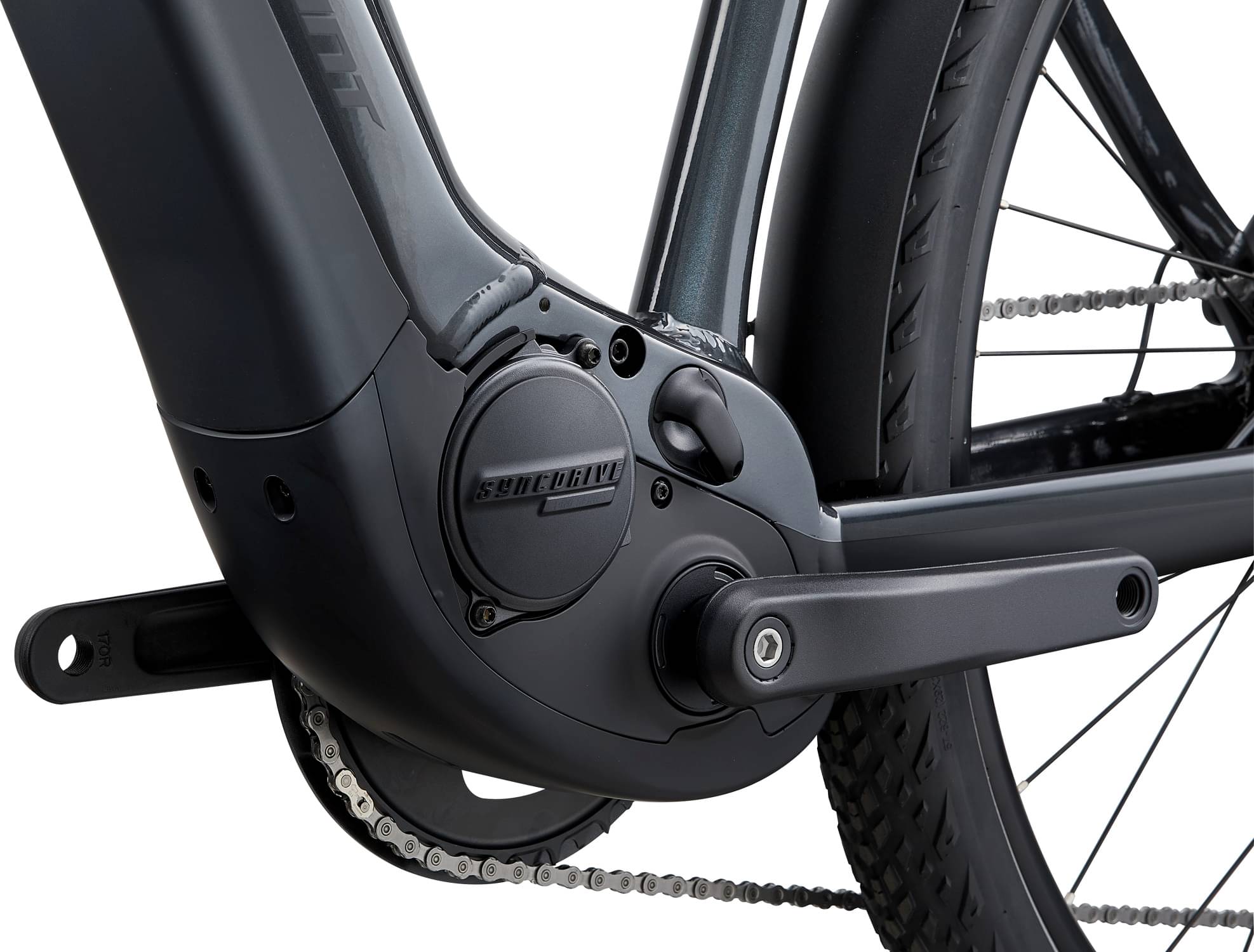

Motor
Giant SyncDrive Pro 2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
Battery
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604)
Charger
Giant EnergyPak 6A smart charger, 60% charge in 3:00h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.73 mm | 1.77 mm | 1.73 mm |
| Front Center | 699 mm | 687 mm | 692 mm | 713 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 88 mm | 84 mm | 84 mm | 84 mm |
| Stack | 658 mm | 675 mm | 689 mm | 703 mm |
| Reach | 387 mm | 391 mm | 390 mm | 406 mm |
| Top Tube Length | 578 mm | 593 mm | 603 mm | 623 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 435 mm | 490 mm | 545 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 448 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1140 mm | 1144 mm | 1149 mm | 1170 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 675 mm | 663 mm | 643 mm | 642 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 183 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm | 193 cm |
About this model
Explore E+, Pro 0 STA belongs to the Giant E Explore model. Giant launched 72 e-bikes of this model so far. Take a sneak peek at all Giant E Explore e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Giant Explore E+, 3 STA 2023 has a starting price of 2819$. Giant Explore E+, Pro 0 STA 2023 on the other hand is the most expensive at 5308$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Giant released this model in 2023, its price was 5308$. If we compare this with the average Hybrid e-bike cost we notice that the price is 114.03% higher.
Overview of components
Fork
This e-bike has the Suntour XCR Air fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Explore E+, Pro 0 STA e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Giant Explore E+, Pro 0 STA is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 162 cm – 193 cm (5.31 ft – 6.33 ft). In short, it won’t be difficult to find the right one for you.
