Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, Semi-Internal Cable Routing
Suspension Fork
SR Suntour Axon LO-RC, low speed compression and rebound adjust, 15mm thru-axle, OverDrive, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX
Front Derailleur
N/A
Shift Levers
Shimano SLX
Cassette
Shimano SLX 11x46, 11-Speed
Crank
Shimano SLX, 30T
Bottom Bracket
Shimano, Press fit
Chain
KMC X11-1
Pedals
Platform, caged
Wheels
Front Hub
Giant Performance Tracker, sealed bearing, [F] 15mm thru-axle, [R] QR
Rear Hub
Giant Performance Tracker, sealed bearing, [F] 15mm thru-axle, [R] QR
Rims
Giant XC-2 Disc, Tubeless
Spokes
Sapim Race, 14/15g
Tires
Maxxis IKON, 29x2.2 Folding, EXO, Tubeless, 60 TPI
Brakes
Brakes
Shimano BR-M365, hydraulic disc, [F] 180mm, [R] 160mm
Brake Levers
Shimano M365
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect Trail
Seat
Saddle
Giant Contact Neutral
Seatpost
Giant Contact Switch, dropper, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.42 mm | 1.4 mm | 1.39 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 664 mm | 685 mm | 706 mm | 727 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 610 mm | 615 mm | 629 mm | 643 mm |
| Reach | 413 mm | 432 mm | 448 mm | 464 mm |
| Top Tube Length | 592 mm | 612 mm | 632 mm | 652 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 390 mm | 445 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1107 mm | 1128 mm | 1149 mm | 1170 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 737 mm | 763 mm | 772 mm | 797 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

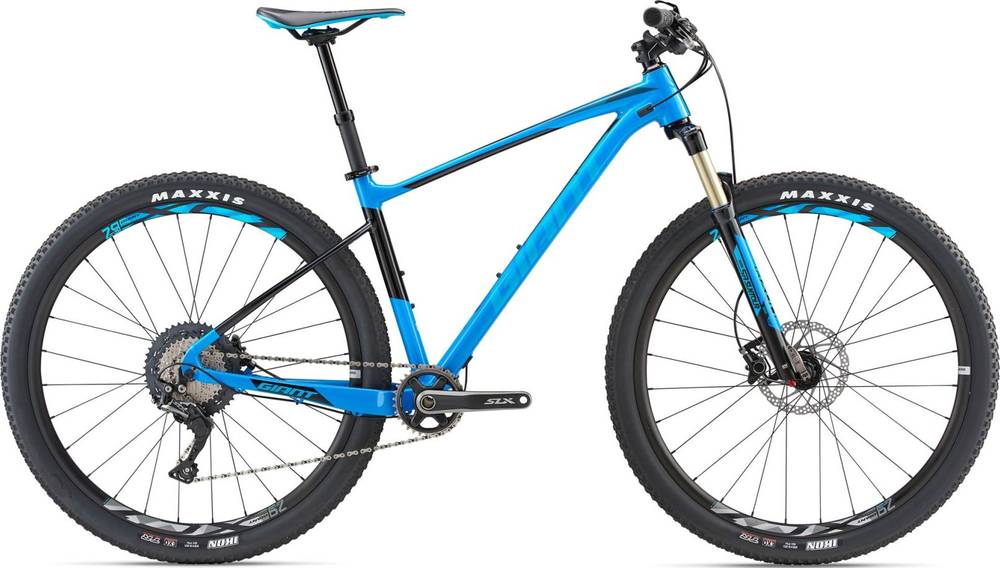

Fathom 29 1 is a Giant Fathom model. 29 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Giant Fathom 29 2 2018 is the most economical model, with a starting price of 1070$. Giant Fathom 1 2018 on the other hand costs 1480$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2018 and its price was 1480$. In conclusion, this bike price is 28.72% smaller than the price of the average Crosscountry bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Fathom 29 1 comes factory-installed with the SunTour fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the Fathom 29 1 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
