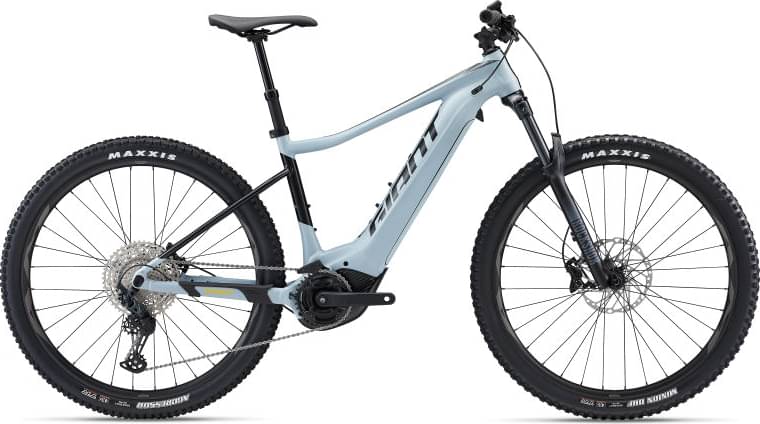

Giant Fathom E+ 1 Pro 2022
2022 E-bike
Estimate price |
3,717$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 130mm -
Fork RockShox Recon Silver RL
-
Groupset SLX, Deore -
Suspension Hardtail -
Motor Yamaha 250W 80Nm mid-drive -
Battery EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 173cm
MD
170cm - 181cm
LG
178cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX Aluminum, Overdrive 1½ - 1?" head tube, 148x12mm Thru-Axle, integrated KS18 kickstand mount
Suspension Fork
RockShox Recon Silver RL,130mm travel, Lock-out, Tapered Steerer,15x110mm BOOST, MaxleLite
Rear Shock
-
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed, Shadow+
Front Derailleur
-
Shift Levers
Shimano Deore, 12-speed
Cassette
Shimano HG-M6100, 10-51T, 12-speed
Crank
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
Bottom Bracket
-
Chain
KMC e12 Sport EPT e-bike optimized
Pedals
platform
Wheels
Front Hub
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Rear Hub
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Rims
Giant AM 29", Tubeless ready, 30mm inner width
Spokes
Stainless steel
Tires
Maxxis Minion DHF 29X2.5" 60TPI Foldable, TLR EXO [F]Maxxis Aggressor 29X2.5" 60TPI Foldable TLR EXO [R]
Brakes
Brakes
Shimano BR-MT420, 4-piston, hydraulic disc, 203mm [F], 180mm[R]
Brake Levers
Shimano Deore BL-M401
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect TR Riser 31.8x780mm
Grips
Giant Tactal Lock-On
Seat
Saddle
Giant Sport
Seatpost
Giant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170)
Motor & Battery
Motor
SyncDrive Pro, 80Nm, powered by Yamaha
Battery
EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible
Remote
RideControl Dash, full color LCD screen
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.36 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm |
| Front Center | 733 mm | 759 mm | 786 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 108.5 mm | 108.5 mm | 108.5 mm |
| Stack | 621 mm | 630 mm | 640 mm |
| Reach | 426 mm | 449 mm | 472 mm |
| Top Tube Length | 580 mm | 605 mm | 630 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 405 mm | 455 mm | 505 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1209 mm | 1236 mm | 1263 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Standover Height | 763 mm | 767 mm | 799 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 170 cm | 178 cm |
| Rider Max Height | 173 cm | 181 cm | 188 cm |
Model Overview
Fathom E+ 1 Pro completes the Giant E Fathom model. Giant launched 25 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Giant Fathom E+ 2 2022 has a starting price of 3662$. Giant Fathom E+ 2 Pro 2022 on the other hand is the most expensive at 4246$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Giant Fathom E+ 1 Pro price was 3760$. In conclusion, this e-bike price is 11.74% higher than the price of the average Trail e-bike.
Fathom E+ 1 Pro components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Fathom E+ 1 Pro 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fathom E+ 1 Pro has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 163 cm – 188 cm (5.35 ft – 6.17 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Fathom E+ 1 Pro. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
