Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork SunTour Zeron
-
Groupset Deore -
Suspension Full -
Motor Yamaha 80Nm mid-drive -
Battery Giant EnergyPak400, 36V, 11.3Ah, Rechargeable Lithium-Ion -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum
Suspension Fork
SR Suntour ZERON 34 LO-R 27.5+, OverDrive, Boost, Lockout, 140mm travel
Rear Shock
SR Suntour UnAir LO-R, Lockout, Trunnion mount, custom tuned
Drivetrain
Rear Derailleur
Shimano new Deore shadow+
Front Derailleur
N/A
Shift Levers
Shimano Deore
Cassette
SunRace CS-MS2 11x42, 10-Speed
Crank
Samox AONE, 38T
Bottom Bracket
N/A
Chain
KMC X.10e, e-bike optimized
Chain Guide
N/A
Pedals
Alloy Platform
Wheels
Front Hub
Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt[F] 110x15mm, 28h,[R] 148x12mm Thru-axle, e-bike optimized, 32h
Rear Hub
Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt[F] 110x15mm, 28h,[R] 148x12mm Thru-axle, e-bike optimized, 32h
Rims
Giant eXX2 Disc, Tubeless, e-bike optimized
Spokes
Stainless Steel, [F] 14g [R] 13g
Tires
Maxxis Rekon, 27.5x2.6, foldable, Double Compound, Exo protect, Tubeless
Brakes
Brakes
Tektro Orion 4P HD-M745 4-piston, 203mm Disc
Brake Levers
Tektro Orion 4P HD-M745 hydraulic disc
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect TR, 31.8mm
Headset
Giant OverDrive
Seat
Saddle
Giant Contact Neutral
Seatpost
Giant Connect, 30.9
Motor & Battery
Motor
Giant SyncDrive Sport, 80Nm, Powered by Yamaha
Battery
Giant EnergyPak400, 36V, 11.3Ah, Rechargeable Lithium-Ion
Remote
Giant RideControl Charge, grip launch control with walk assist, mini USB charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.52 mm | 1.49 mm | 1.47 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 680 mm | 705 mm | 727 mm | 754 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 607 mm | 607 mm | 621 mm | 639 mm |
| Reach | 375 mm | 400 mm | 416 mm | 435 mm |
| Top Tube Length | 562 mm | 587 mm | 607 mm | 632 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 431 mm | 450 mm | 500 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 125 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1140 mm | 1165 mm | 1187 mm | 1214 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 765 mm | 766 mm | 803 mm | 829 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

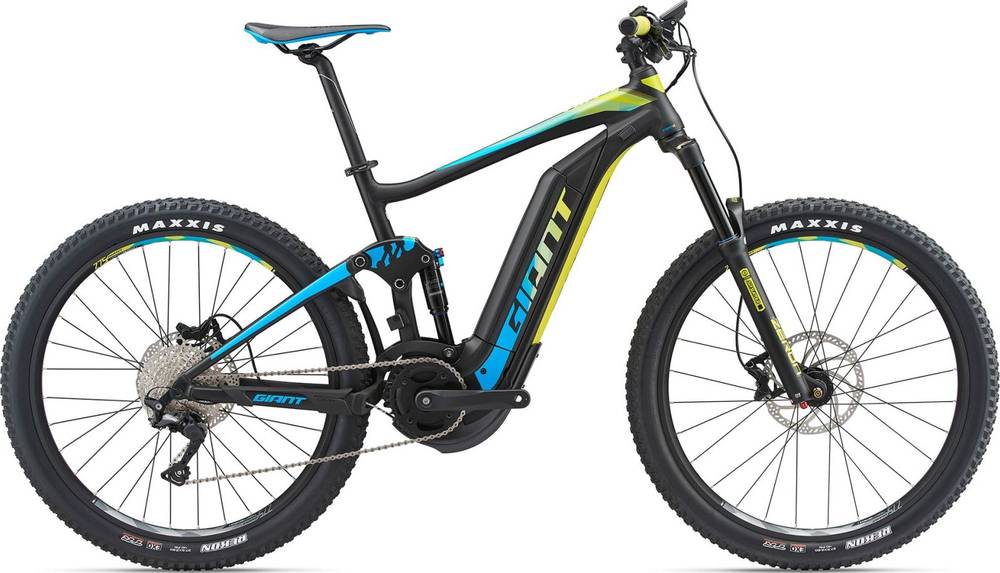

Full-E+ 3 is a Giant E Full Eplus model. Giant released 5 e-bikes variations of this model so far. Take a sneak peek at all Giant E Full Eplus e-bikes models from 2018, by clicking here.
Model range prices
The most economical model, the Giant Full-E+ 3 2018 has a starting price of 3570$. Giant Full-E+ 0 SX Pro 2018 on the other hand is the most expensive at 6530$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Giant released this model in 2018, its price was 3570$. In conclusion, this e-bike price is 6.09% more expensive than the price of the average Trail e-bike.
Overview of components
Fork
The Full-E+ 3 comes factory-installed with the SunTour Zeron fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Giant Full-E+ 3 e-bike has the SR Suntour UnAir LO-R model installed, and has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Full-E+ 3 e-bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Full-E+ 3 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
