Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite, Electronic ready
Suspension Fork
Advanced-grade composite, Hybrid OverDrive steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano Ultegra 11x28, 11-speed
Crank
Shimano Ultegra, 36/52
Bottom Bracket
Shimano, Press fit
Chain
KMC X11L
Pedals
N/A
Wheels
Front Hub
Giant Performance Tracker Road, Sealed bearing, [F] 16h, [R] 24h
Rear Hub
Giant Performance Tracker Road, Sealed bearing, [F] 16h, [R] 24h
Rims
Giant P-A2, Aero
Spokes
Sapim Race, 14/15g
Tires
Giant P-R3, Flat Guard Deflect 3, Front and rear specific, 700x23
Brakes
Brakes
Giant SpeedControl SL
Brake Levers
Shimano Ultegra
Cockpit
Stem
Giant Connect
Handlebar
Giant Contact, 31.8mm
Seat
Saddle
Giant Performance Road
Seatpost
Giant Vector, Composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.416 mm | 1.43 mm | 1.448 mm | 1.445 mm | 1.444 mm |
| Stack | 517 mm | 534 mm | 552 mm | 566 mm | 581 mm | 595 mm |
| Reach | 372 mm | 377 mm | 386 mm | 391 mm | 402 mm | 412 mm |
| Top Tube Length | 515 mm | 535 mm | 555 mm | 570 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° | 72 ° |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 170 mm | 185 mm | 200 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 972 mm | 974 mm | 980 mm | 986 mm | 1001 mm | 1021 mm |
| Standover Height | 742 mm | 767 mm | 790 mm | 813 mm | 836 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
About this model

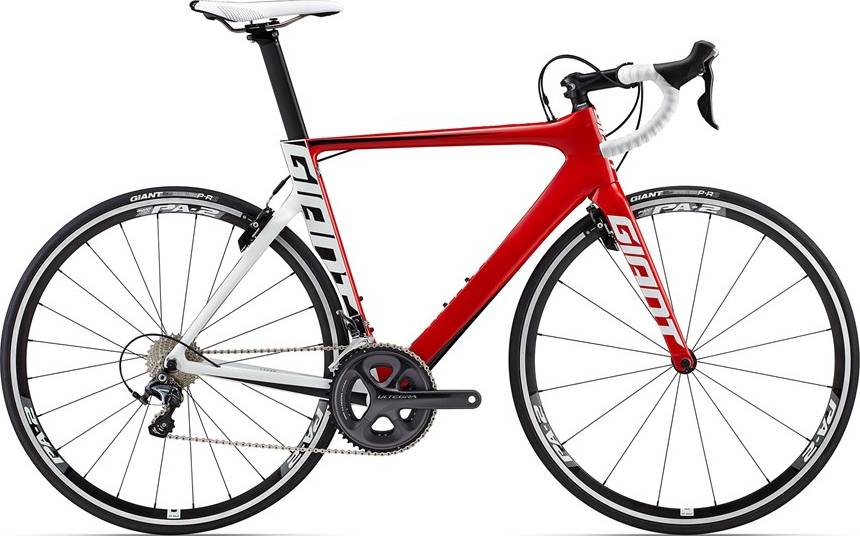

Propel Advanced 1 is part of the Giant Propel model. Giant released 102 bikes variations of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Model range prices
Giant Propel Advanced 2 2015 is the most economical model, with a starting price of 2300$. Giant Propel Advanced SL 0 2015 on the other hand costs 10800$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Aero bikes
Our math shows that the average cost of a dependable Aero bike is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2015 for 2825$. Doing a quick comparison, we notice that Propel Advanced 1 price is 49.06% lower than the average cost of an Aero bike.
Propel Advanced 1 components
Fork material
Propel Advanced 1 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Propel Advanced 1 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Propel Advanced 1 comes with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
