Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite
Suspension Fork
Advanced-grade composite, Hybrid OverDrive steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano Ultegra 11x28, 11-speed
Crank
Shimano Ultegra, 36/52
Bottom Bracket
Shimano, Press fit
Chain
KMC X11 EL
Pedals
N/A
Wheels
Front Hub
Giant SLR 1 Aero DBL WheelSystem; Pawl driver, [F] 16h [R] 21h
Rear Hub
Giant SLR 1 Aero DBL WheelSystem; Pawl driver, [F] 16h [R] 21h
Rims
Giant SLR 1 Aero DBL WheelSystem; 55mm deep, 23mm wide, Tubeless compatible, Full composite
Spokes
Giant SLR 1 Aero DBL WheelSystem; Dynamic Balanced Lacing, bladed stainless
Tires
Giant Gavia SL Tubeless, 700x25, Folding
Brakes
Brakes
Giant SpeedControl
Brake Levers
Shimano Ultegra
Cockpit
Stem
Giant Connect
Handlebar
Giant Contact, 31.8mm
Seat
Saddle
Giant Contact Forward
Seatpost
Giant Vector, Composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.42 mm | 1.44 mm | 1.45 mm | 1.45 mm | 1.45 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 577 mm | 579 mm | 585 mm | 595 mm | 610 mm | 625 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 70 mm | 64 mm | 57 mm | 57 mm | 57 mm |
| Stack | 514 mm | 531 mm | 550 mm | 563 mm | 578 mm | 592 mm |
| Reach | 369 mm | 374 mm | 383 mm | 388 mm | 399 mm | 409 mm |
| Top Tube Length | 512 mm | 532 mm | 552 mm | 567 mm | 582 mm | 602 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 465 mm | 500 mm | 520 mm | 545 mm | 575 mm | 595 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 170 mm | 185 mm | 200 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 969 mm | 971 mm | 977 mm | 988 mm | 1003 mm | 1018 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 739 mm | 764 mm | 787 mm | 810 mm | 833 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |

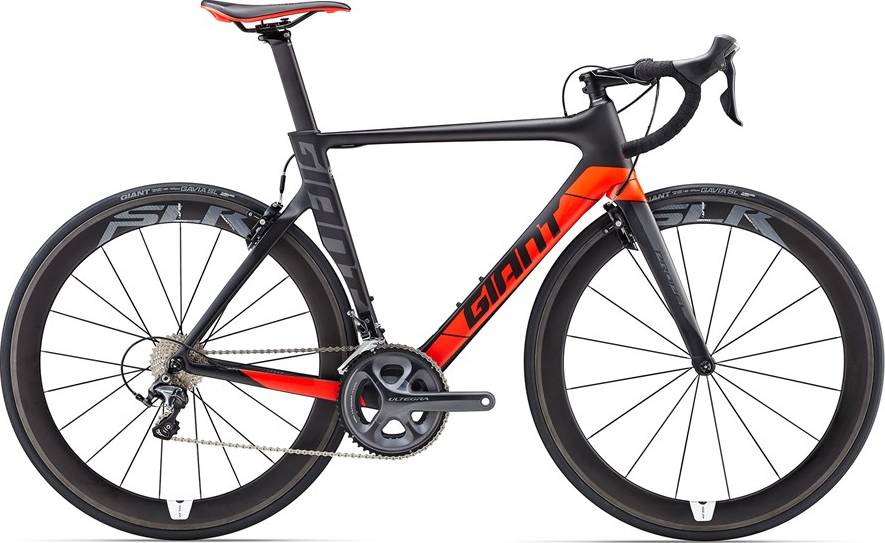

Model Overview
Propel Advanced 1 is a Giant Propel model. Giant launched 102 bikes of this model so far. Take a sneak peek at all Giant Propel bikes models from 2017, by clicking here.
Model range prices
Giant Propel Advanced 1 2017 is the most affordable bike of this model and has a price of 3150$. On the other hand, Giant Propel Advanced SL 0-DA Di2 2017, is the most expensive and costs 8550$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero bikes
If you want an acceptable Aero bike you should know that the average price is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2017 and its price was 3150$. Doing a quick comparison, we notice that Propel Advanced 1 price is 33.68% smaller than the average cost of an Aero bike.
Propel Advanced 1 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Propel Advanced 1 2017 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Giant Propel Advanced 1 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
This bike is available in 6 sizes. They vary from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
