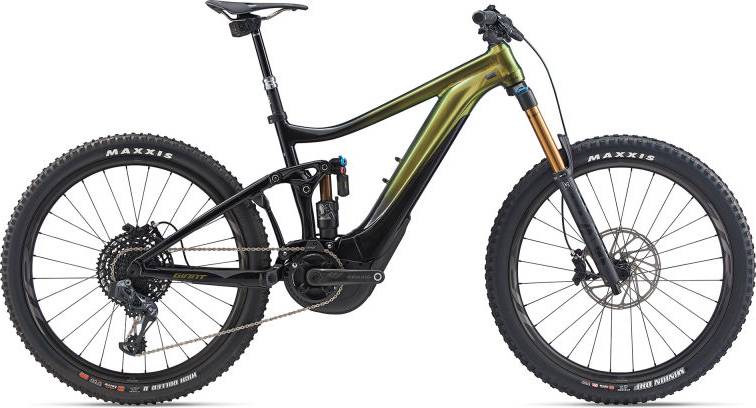

Giant Reign E+ 0 Pro 2020
2020 E-bike
Estimate price |
8,500$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle AXS, SRAM -
Suspension Full -
Motor Yamaha 80Nm mid-drive -
Battery Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 173cm
MD
170cm - 181cm
LG
178cm - 189cm
XL
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, 160mm Maestro suspension system, 'Boost' 148x12QR, Giant EnergyPak Plus range extender compatible
Suspension Fork
Fox 36 Float Factory 27.5, 170mm, Grip2 Damper, Boost 110x15QR, e-Bike optimized
Rear Shock
Fox Float X2 Factory, EVOL Large Volume sleeve, 2-position lever, 205x62.5mm Trunnion mount, custom tuned
Drivetrain
Rear Derailleur
SRAM XO1 Eagle AXS
Front Derailleur
MRP 1X custom "V3" co-moulded TR chain guide
Shift Levers
SRAM XO1 Eagle eTap AXS
Cassette
SRAM PG-1230, 11-50T, 12-Speed
Crank
SRAM X-Sync Eagle 36T 104BCD chainringPraxis e-Carbon custom carbon crankarm set (Q-factor=168, S/M:160, L/XL::165)
Bottom Bracket
N/A
Chain
SRAM XO1 Eagle PowerLock, 12-Speed
Pedals
-
Wheels
Front Hub
Giant e-TRX [F] 110x15 [R] 148x12mm Thru-axle
Rear Hub
Giant e-TRX [F] 110x15 [R] 148x12mm Thru-axle
Rims
Giant e-TRX 27.5, Tubeless ready, 30mm inner width
Spokes
Giant e-TRX
Tires
Maxxis Minion DHF 27.5x2.6" foldable, Tubeless, EXO+, 3c MaxxTerra[F]Maxxis High Roller II 27.5x2.6" foldable, Tubeless, DoubleDown, 2x120tpi, 3C MaxxTerra Compound [R]
Brakes
Brakes
SRAM Code R, hydraulic disc, 220mm [F] 200mm [R]
Brake Levers
SRAM Code R
Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact SL 35 Trail, 35x800mm
Seat
Saddle
Giant Contact SL, Neutral
Seatpost
SRAM Reverb AXS, Wireless Remote, dropper, 30.9mm (Travel: 100mm-S / 125mm-M / 150mm-L / 170mm- XL)
Motor & Battery
Motor
Giant SyncDrive Pro, 80Nm, 360% tuneable support, powered by YAMAHA. Pedal assist up to 20 mph.
Battery
Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion
Remote
Giant RideControl One
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.33 mm | 1.28 mm | 1.24 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 753 mm | 779 mm | 806 mm | 833 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 124.3 mm | 124.3 mm | 124.3 mm | 124.3 mm |
| Stack | 598 mm | 608 mm | 617 mm | 626 mm |
| Reach | 436 mm | 458 mm | 481 mm | 503 mm |
| Top Tube Length | 601 mm | 626 mm | 651 mm | 676 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 445 mm | 482 mm | 507 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1229 mm | 1255 mm | 1282 mm | 1309 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 163 cm | 170 cm | 178 cm | 186 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 198 cm |
About this model
Reign E+ 0 Pro belongs to the Giant E Reign model. There are 16 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Giant Reign E+ 2 Pro Electric Bike 2020 is the most economical model, with a starting price of 5473$. Giant Reign E+ 0 Pro Electric Bike 2020 on the other hand costs 8514$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2020 and its price was 8500$. Comparing the average cost of an Enduro e-bike to this one, you will see that Reign E+ 0 Pro price is 77.64% more expensive.
Reign E+ 0 Pro components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float X2 Factory rear shock model, which has a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Giant Reign E+ 0 Pro 2020, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Reign E+ 0 Pro comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Reign E+ 0 Pro comes in 4 sizes, that range from 163 cm – 198 cm (5.35 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
The Giant model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
