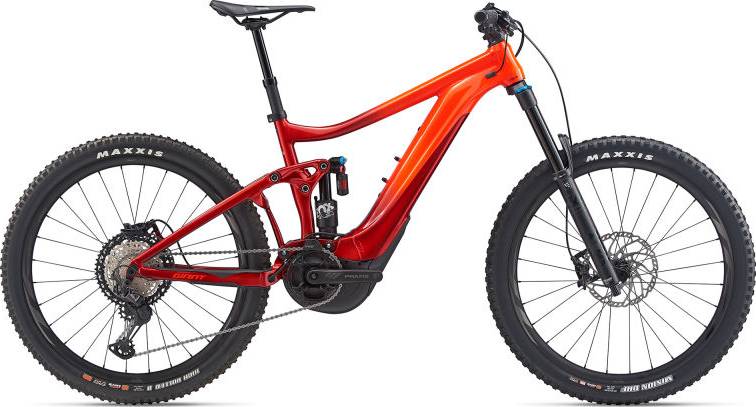

Giant Reign E+ 1 Pro Electric Bike 2020
2020 E-bike
Estimate price |
6,690$
Weight | 23.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT, Praxis -
Suspension Full -
Motor Yamaha 80Nm mid-drive -
Battery Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, 160mm Maestro suspension system, 'Boost' 148x12QR, Giant EnergyPak Plus range extender compatible
Suspension Fork
Fox 36 Float Performance 27.5, 170mm, 3-position Micro Adjust Grip Damper, Boost 110x15QR, e-Bike optimized
Rear Shock
Fox Float X2 Performance, EVOL Large Volume sleeve, 2-position lever, 205x62.5mm Trunnion mount, custom tuned
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-Speed, Shadow+
Front Derailleur
MRP 1X custom "V3" co-moulded TR chain guide
Shift Levers
Shimano Deore XT, 12-speed
Cassette
Shimano HG-M7100, 10-51T, 12-Speed
Crank
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S/M:160, L/XL:165)
Bottom Bracket
N/A
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimized
Pedals
-
Wheels
Front Hub
Giant e-TR1 [F] 110x15 [R] 148x12mm Thru-axle
Rear Hub
Giant e-TR1 [F] 110x15 [R] 148x12mm Thru-axle
Rims
Giant e-TR1 27.5, Tubeless ready, 30mm inner width
Spokes
Giant e-TR1
Tires
Maxxis Minion DHF 27.5x2.6" foldable, Tubeless, EXO+, 3c MaxxTerra[F]Maxxis High Roller II 27.5x2.6" foldable, Tubeless, DoubleDown, 2x120tpi, 3C MaxxTerra Compound [R]
Brakes
Brakes
Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 203mm
Brake Levers
Shimano Deore XT, BL-M8120
Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact Trail, 35x800mm
Seat
Saddle
Giant Contact, Neutral
Seatpost
Giant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170)
Motor & Battery
Motor
Giant SyncDrive Pro, automatic support, 5-mode, 50-360% tunable support, 80Nm, powered by YAMAHA
Battery
Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion
Remote
Giant RideControl One
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.33 mm | 1.28 mm | 1.24 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 753 mm | 779 mm | 806 mm | 833 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 124.3 mm | 124.3 mm | 124.3 mm | 124.3 mm |
| Stack | 598 mm | 608 mm | 617 mm | 626 mm |
| Reach | 436 mm | 458 mm | 481 mm | 503 mm |
| Top Tube Length | 601 mm | 626 mm | 651 mm | 676 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 445 mm | 482 mm | 507 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1229 mm | 1255 mm | 1282 mm | 1309 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Reign E+ 1 Pro Electric Bike is a Giant E Reign model. Giant launched 16 e-bikes of this model so far. Take a sneak peek at all Giant E Reign e-bikes models from 2020, by clicking here.
Model range prices
Giant Reign E+ 2 Pro Electric Bike 2020 is the most affordable e-bike of this model and has a price of 5473$. On the other hand, Giant Reign E+ 0 Pro Electric Bike 2020, is the most expensive and costs 8514$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2020 and its price was 6081$. Doing a quick comparison, we notice that Reign E+ 1 Pro Electric Bike price is 27.08% more expensive than the average cost of an Enduro e-bike.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Giant Reign E+ 1 Pro Electric Bike it’s weighing 23.9 kg (52.69 lbs). At this weight, is slightly heavier than average. In short, the average Enduro e-bike weight is 2.05% lower than this one.
Overview of components
Fork
The Reign E+ 1 Pro Electric Bike comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Reign E+ 1 Pro Electric Bike has a rear shock with a travel of 160mm. The model Fox Float X2 Performance is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Reign E+ 1 Pro Electric Bike model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Reign E+ 1 Pro Electric Bike comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Giant Reign E+ 1 Pro Electric Bike comes with a dropper post. Therefore, climbing or descending will be a breeze.
