Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset X4, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Butted Aluminum
Suspension Fork
SR Suntour XCM V3, 100mm Travel, Women's Tuned Spring Rate
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X4
Front Derailleur
Shimano M310
Shift Levers
SRAM X4
Cassette
SRAM PG 830 11x32, 8-Speed
Crank
SR Suntour XCT V2, 22/32/42
Bottom Bracket
Sealed Cartridge
Chain
KMC Z72 NP
Pedals
Alloy Platform
Wheels
Front Hub
Formula Disc, 32h
Rear Hub
Formula Disc, 32h
Rims
Giant XC Alloy, Double Wall
Spokes
Stainless Steel, 14g
Tires
Giant XC Trail, 26x2.1
Brakes
Brakes
Tektro Novela, Mechanical Disc, 160mm
Brake Levers
Tektro, 2-Finger
Cockpit
Stem
Giant Sport, Alloy
Handlebar
Giant Sport Alloy, Low Rise, 31.8
Seat
Saddle
Giant Sport Trail, Women's
Seatpost
Giant Sport, Alloy, 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Top Tube Length | 531 mm | 556 mm | 574 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 124 mm | 135 mm | 150 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1024 mm | 1049 mm | 1069 mm |
| Standover Height | 709 mm | 721 mm | 749 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model

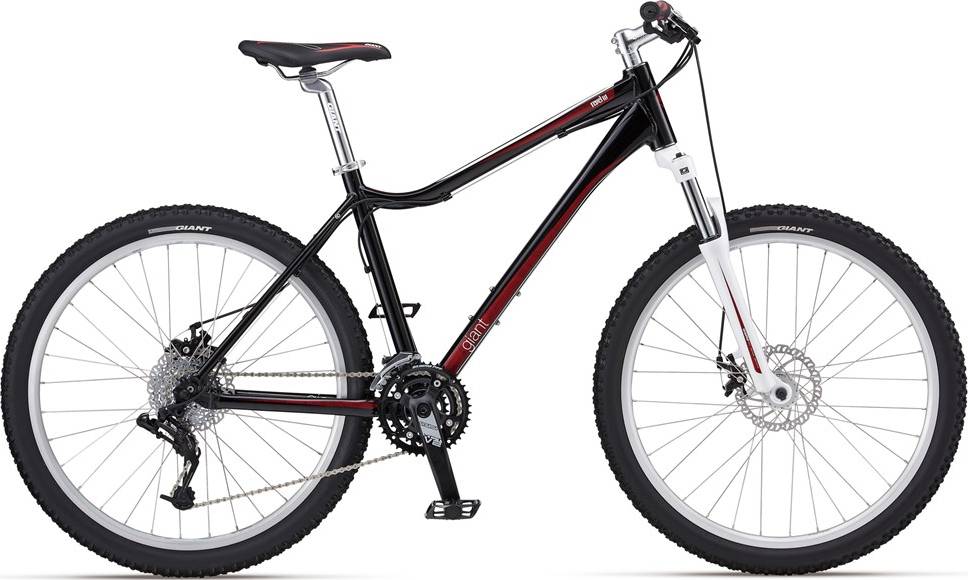

Revel 1 W belongs to the Giant Revel model. There are 43 bikes that carry this model name. You can get a glimpse at all models from 2012, by clicking on this link.
Model range prices
Giant Revel 2 W (White/Green) 2012 is the most economical model, with a starting price of 410$. Giant Revel 0 2012 on the other hand costs 690$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2012 and its price was 500$. In conclusion, this bike price is 281% lower than the price of the average Crosscountry bike.
Revel 1 W components
Fork
This bike has the SunTour XCM fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Giant Revel 1 W 2012, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Giant Revel 1 W is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Revel 1 W comes in 3 sizes, that range from 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, you won’t have a problem finding one that suits you.
