Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork SunTour XCM
-
Groupset X5, SRAM -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum
Suspension Fork
Suntour XCM V3 29" w/Lockout, 80mm Travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X5
Front Derailleur
SRAM X5
Shift Levers
SRAM X5, 3x9 Speed
Cassette
SRAM PG 950 11x32, 9-Speed
Crank
SRAM S600, 22/32/44
Bottom Bracket
SRAM Square Taper
Chain
KMC X9
Pedals
Alloy Platform
Wheels
Front Hub
Formula Disc, 32h
Rear Hub
Formula Disc, 32h
Rims
Giant Alloy, Double Wall
Spokes
Stainless Steel, 14g
Tires
Giant Sport, 29x2.1
Brakes
Brakes
Avid BB5 Mechanical Disc, 160mm
Brake Levers
Tektro, 2-Finger
Cockpit
Stem
Giant Sport
Handlebar
Giant Sport, Low Rise, 31.8
Seat
Saddle
Giant Sport Trail
Seatpost
Giant Sport, 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 569 mm | 594 mm | 615 mm | 635 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 109 mm | 114 mm | 119 mm | 124 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1067 mm | 1087 mm | 1110 mm | 1123 mm |
| Standover Height | 721 mm | 749 mm | 772 mm | 818 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

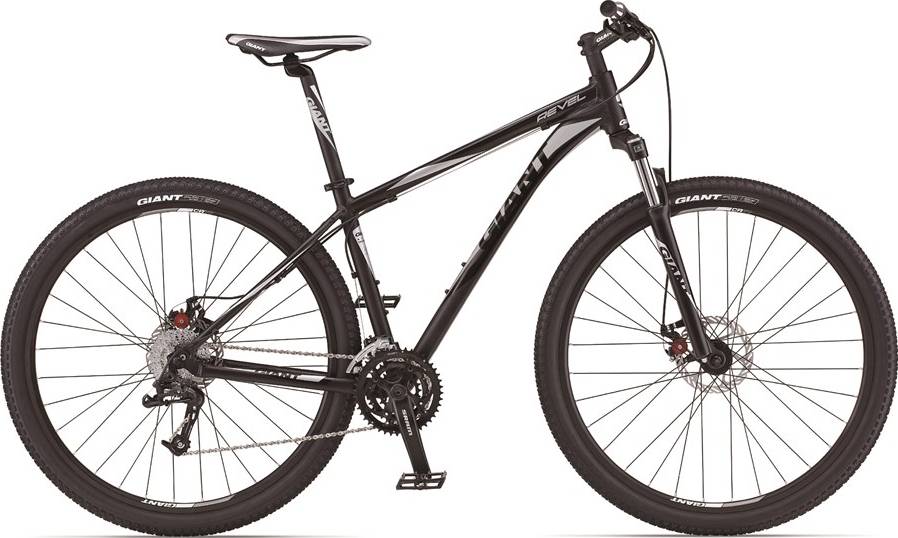

Revel 29er 0 is part of the Giant Revel model. There are 43 bikes that carry this model name. Check out the entire range from 2013 of this model, by clicking this link.
Model range prices
Giant Revel Jr. Boys 20 2013 is the most affordable bike of this model and has a price of 220$. On the other hand, Giant Revel 29er 0 2013, is the most expensive and costs 700$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2013 for 700$. Doing a quick comparison, we notice that Revel 29er 0 price is 172.14% smaller than the average cost of a Crosscountry bike.
Overview of components
Fork
The SunTour XCM is included from the factory. It has a travel distance of 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Revel 29er 0 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Revel 29er 0 has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
