Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork SunTour XCT
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-grade aluminum
Suspension Fork
SR Suntour XCT V4, 80mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Alivio
Front Derailleur
Shimano M191
Shift Levers
Shimano Acera
Cassette
SRAM PG830 11x32, 8-speed
Crank
SR Suntour XCE, 24/34/42
Bottom Bracket
SR Suntour sealed
Chain
KMC Z8
Pedals
Alloy platform
Wheels
Front Hub
Formula Disc, 32h
Rear Hub
Formula Disc, 32h
Rims
Giant Alloy, Double wall
Spokes
Stainless Steel, 14g
Tires
Giant Sport, 29x2.1
Brakes
Brakes
Tektro Novela, Mechanical disc, 160mm
Brake Levers
Tektro Novela
Cockpit
Stem
Giant Sport
Handlebar
Giant Sport, Low rise, 31.8mm
Seat
Saddle
Giant Connect, Upright
Seatpost
Giant Sport, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 569 mm | 594 mm | 615 mm | 635 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 109 mm | 114 mm | 119 mm | 124 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1067 mm | 1087 mm | 1110 mm | 1123 mm |
| Standover Height | 721 mm | 749 mm | 772 mm | 818 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

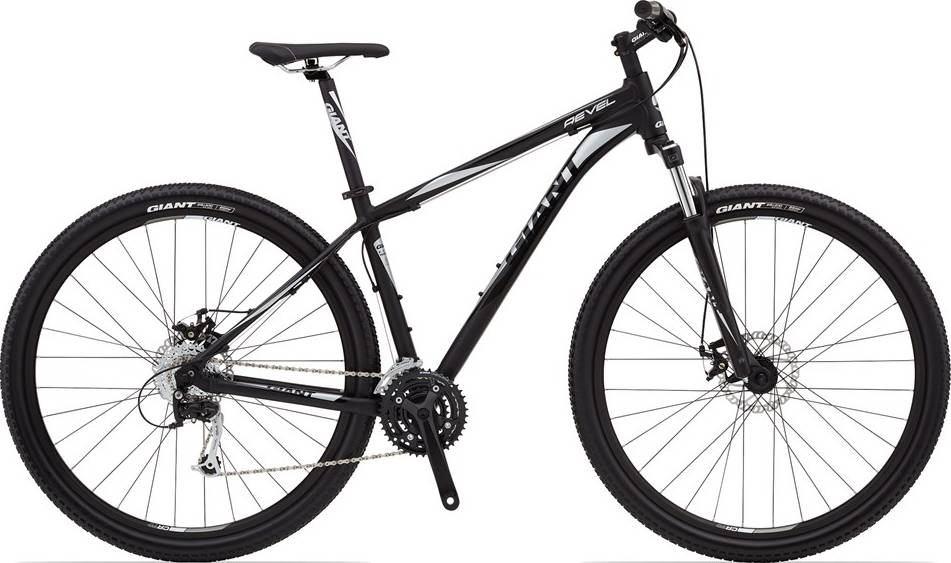

Revel 29er is a Giant Revel model. Giant released 43 bikes variations of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Model range prices
Giant Revel 3 2015 is the most economical model, with a starting price of 450$. Giant Revel 29er 2015 on the other hand costs 560$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2015 for 560$. Comparing this to the average Crosscountry bike price, we see that the price is 240.18% lower.
Revel 29er components
Fork
The Revel 29er comes factory-installed with the SunTour XCT fork. This has a travel range of 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the Revel 29er bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
