Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris, FSA -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum w/ rack mounts
Suspension Fork
Advanced-grade composite, alloy OverDrive steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Claris
Front Derailleur
Shimano Claris
Shift Levers
Shimano Claris
Cassette
Shimano HG51 11x32, 8-speed
Crank
FSA Tempo, 34/50
Bottom Bracket
FSA MegaExo
Chain
KMC Z8
Pedals
N/A
Wheels
Front Hub
Alloy, 32h
Rear Hub
Alloy, 32h
Rims
Giant Alloy, double wall
Spokes
Stainless Steel, 14g
Tires
Giant P-RX2, FlatGuard Deflect 3, 700x35
Brakes
Brakes
Avid BB5 Road, mechanical disc, 160mm
Brake Levers
Shimano 2400, w/Tektro RL720 top-bar levers
Cockpit
Stem
Giant Sport
Handlebar
Giant Connect XR Ergo-Control, 31.8mm
Seat
Saddle
Giant Connect, Forward
Seatpost
Giant Connect Composite, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Top Tube Length | 554 mm | 564 mm | 569 mm | 579 mm | 584 mm |
| Seat Tube Angle | 72 ° | 72 ° | 71.5 ° | 71 ° | 71 ° |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 165 mm | 178 mm | 196 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1041 mm | 1046 mm | 1046 mm | 1052 mm | 1057 mm |
| Standover Height | 729 mm | 749 mm | 765 mm | 780 mm | 798 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |

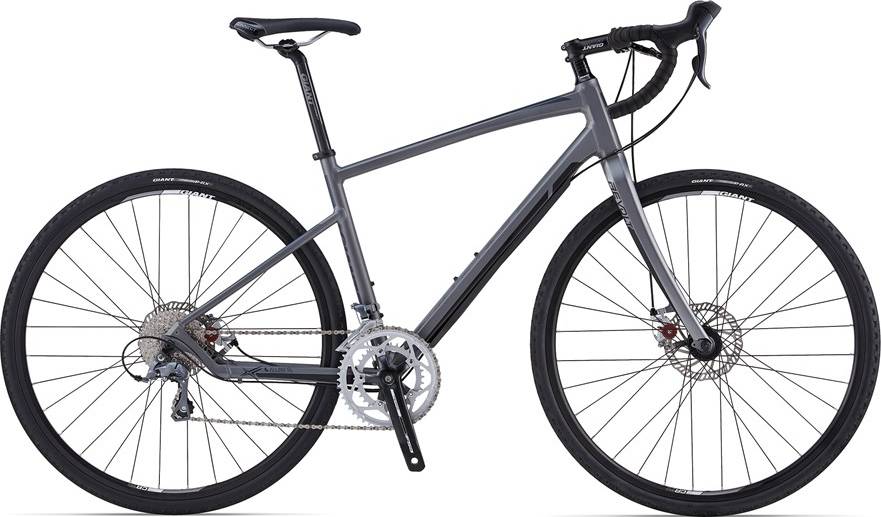

About this model
Revolt 2 completes the Giant Revolt model. 68 bikes variations carry this model name so far. Check out the entire range from 2014 of this model, by clicking this link.
Model range prices
Giant Revolt 2 2014 is the most economical model, with a starting price of 1025$. Giant Revolt 0 2014 on the other hand costs 3200$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Giant Revolt 2 price was 1025$. In conclusion, this bike price is 140.2% lower than the price of the average Gravel bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Revolt 2 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Revolt 2 has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 162 cm – 199 cm (5.31 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
