Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
155cm - 166cm
SM
159cm - 171cm
MD
169cm - 181cm
MD/LG
174cm - 186cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum, rack mount, disc
Suspension Fork
Advanced-Grade Composite, full-composite OverDrive steerer, rack mount, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Sora
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora
Cassette
Shimano CH-HG400, 11x34
Crank
FSA Vero Pro, 32/48
Bottom Bracket
Sealed Cartridge, Threaded
Chain
KMC X9 with Missing Link
Pedals
N/A
Wheels
Front Hub
Giant S-X2 Disc wheelset, 12mm thru-axle
Rear Hub
Giant S-X2 Disc wheelset, 12mm thru-axle
Rims
Giant S-X2 Disc wheelset
Spokes
Sapim
Tires
Giant CrossCut AT 2, tubeless, 700x38c
Brakes
Brakes
Tektro MD-C550 mechanical, 160mm
Brake Levers
Shimano Sora
Cockpit
Stem
Giant Sport
Handlebar
Giant Contact XR Ergo-Control, 31.8
Seat
Saddle
Giant Approach, UniClip accessory mount
Seatpost
Giant D-Fuse, alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.54 mm | 1.54 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 599 mm | 605 mm | 616 mm | 621 mm | 631 mm | 647 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 75 mm | 75 mm | 75 mm | 71.6 mm | 71.6 mm | 71.6 mm |
| Stack | 544 mm | 554 mm | 568 mm | 584 mm | 597 mm | 611 mm |
| Reach | 369 mm | 371 mm | 377 mm | 381 mm | 387 mm | 398 mm |
| Top Tube Length | 526 mm | 536 mm | 546 mm | 561 mm | 571 mm | 586 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 490 mm | 510 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 135 mm | 150 mm | 165 mm | 180 mm | 195 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1015 mm | 1021 mm | 1032 mm | 1037 mm | 1047 mm | 1063 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 712 mm | 727 mm | 745 mm | 761 mm | 779 mm | 796 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 169 cm | 174 cm | 179 cm | 189 cm |
| Rider Max Height | 166 cm | 171 cm | 181 cm | 186 cm | 191 cm | 200 cm |
Model Overview

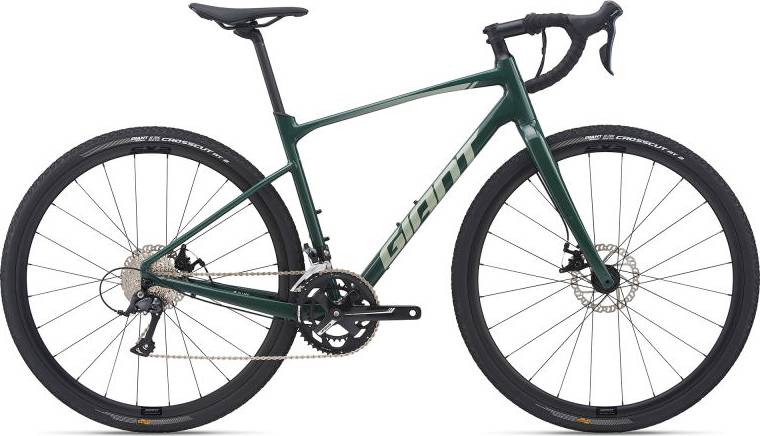

Revolt 2 is a Giant Revolt model. There are 68 bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
The most economical model, the Giant Revolt 2 2021 has a starting price of 1300$. Giant Revolt Advanced Pro 0 2021 on the other hand is the most expensive at 6150$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2021 and its price was 1300$. If we compare this with the average Gravel bike cost we notice that the price is 89.38% lower.
Overview of components
Fork material
Revolt 2 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The Revolt 2 2021 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This bike is available in 6 sizes. They vary from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
