Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris, FSA -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum
Suspension Fork
Advanced-grade composite, Alloy OverDrive steerer
Rear Shock
N / A
Drivetrain
Rear Derailleur
Shimano Claris
Front Derailleur
Shimano Claris
Shift Levers
Shimano Claris
Cassette
Shimano HG-51 11x32, 8-speed
Crank
FSA Tempo, 30/39/50
Bottom Bracket
FSA, Threaded
Chain
KMC Z7
Pedals
Platform, Caged
Wheels
Front Hub
Giant Sport Tracker Disc, 32h
Rear Hub
Giant Sport Tracker Disc, 32h
Rims
Giant SX-2 Disc
Spokes
Stainless Steel, 14g
Tires
Giant Sycamore S, 700x38
Brakes
Brakes
Tektro Mira, mechanical disc, 160mm
Brake Levers
Shimano Sora
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect XR Ergo-Control, 31.8mm
Seat
Saddle
Giant Connect Forward
Seatpost
Giant Connect, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.52 mm | 1.57 mm | 1.61 mm | 1.65 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 620 mm | 626 mm | 632 mm | 632 mm | 637 mm | 643 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 76 mm | 76 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 551 mm | 565 mm | 586 mm | 600 mm | 614 mm | 628 mm |
| Reach | 382 mm | 382 mm | 386 mm | 381 mm | 381 mm | 381 mm |
| Top Tube Length | 546 mm | 551 mm | 561 mm | 566 mm | 576 mm | 581 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 490 mm | 510 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 135 mm | 155 mm | 170 mm | 185 mm | 200 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1048 mm | 1054 mm | 1060 mm | 1060 mm | 1065 mm | 1071 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 708 mm | 725 mm | 744 mm | 761 mm | 777 mm | 795 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
About this model

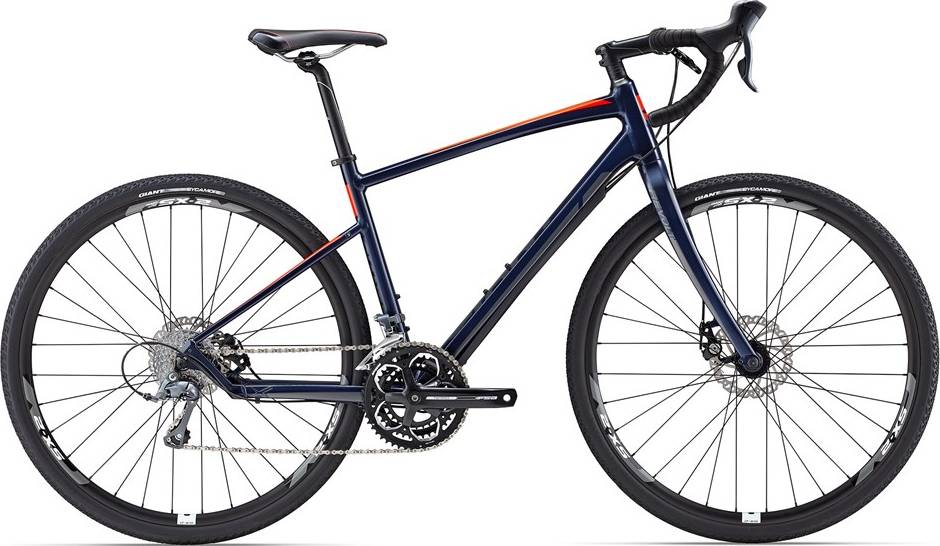

Revolt 3 is a Giant Revolt model. Giant launched 68 bikes of this model so far. Take a sneak peek at all Giant Revolt bikes models from 2017, by clicking here.
Model range prices
The most economical model, the Giant Revolt 3 2017 has a starting price of 870$. Giant Revolt 1 2017 on the other hand is the most expensive at 1315$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2017 and its price was 870$. Comparing the average cost of a Gravel bike to this one, you will see that Revolt 3 price is 182.99% smaller.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Revolt 3 2017 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Giant Revolt 3 is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 6 sizes. They vary from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
