Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Praxis -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 166cm
SM
159cm - 171cm
MD
169cm - 181cm
MD/LG
174cm - 186cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite, flat mount disc, 12x142mm thru-axle
Suspension Fork
Advanced-Grade Composite, full-composite OverDrive steerer, flat mount disc 12mm thru-axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Ultegra RX
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra, hydraulic
Cassette
Shimano Ultegra, 11x34
Crank
Praxis Zayante, 32/48
Bottom Bracket
Praxis M24 BB86
Chain
KMC X11SL-1
Pedals
N/A
Wheels
Front Hub
Giant CXR-1 Carbon WheelSystem 12mm thru-axles
Rear Hub
Giant CXR-1 Carbon WheelSystem 12mm thru-axles
Rims
Giant CXR-1 Carbon WheelSystem
Spokes
Giant CXR-1 Carbon WheelSystem
Tires
Giant CrossCut Gravel 1, 700x40, tubeless
Brakes
Brakes
Shimano Ultegra, hydraulic
Brake Levers
Shimano Ultegra
Cockpit
Stem
Giant Connect, 8-degree
Handlebar
Giant Contact XR D-Fuse, 31.8mm 5-degree back sweep, flare drop
Seat
Saddle
Giant Contact SL (neutral)
Seatpost
Giant D-Fuse, composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.54 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 599 mm | 605 mm | 616 mm | 621 mm | 631 mm | 647 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 74 mm | 74 mm | 71 mm | 71 mm | 71 mm |
| Stack | 544 mm | 554 mm | 568 mm | 584 mm | 598 mm | 612 mm |
| Reach | 369 mm | 371 mm | 377 mm | 381 mm | 387 mm | 398 mm |
| Top Tube Length | 526 mm | 536 mm | 546 mm | 561 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 490 mm | 510 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 135 mm | 150 mm | 165 mm | 180 mm | 195 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1010 mm | 1016 mm | 1027 mm | 1032 mm | 1042 mm | 1058 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 715 mm | 730 mm | 748 mm | 764 mm | 782 mm | 799 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 169 cm | 174 cm | 179 cm | 189 cm |
| Rider Max Height | 166 cm | 171 cm | 181 cm | 186 cm | 191 cm | 200 cm |
About this model

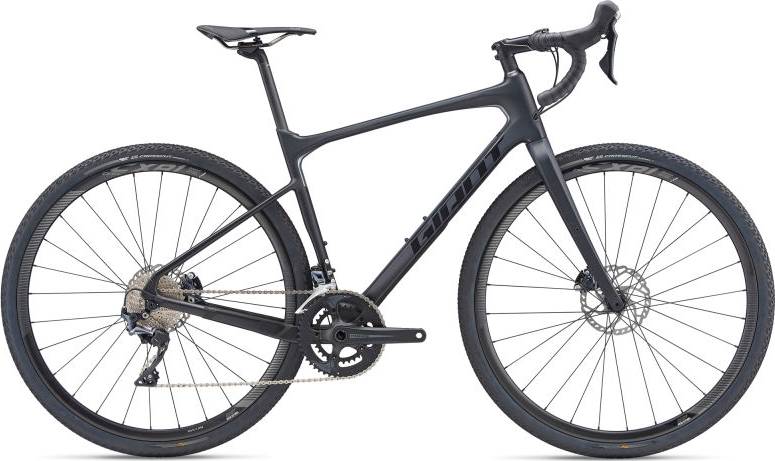

Revolt Advanced 0 is a Giant Revolt model. 68 bikes variations carry this model name so far. You can easily view all of the Giant Revolt bikes models from 2019, here.
Model range prices
Giant Revolt Advanced 2 2019 is the most economical model, with a starting price of 2100$. Giant Revolt Advanced 0 2019 on the other hand costs 3465$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2019 and its price was 3465$. In conclusion, this bike price is 40.74% more expensive than the price of the average Gravel bike.
Revolt Advanced 0 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Revolt Advanced 0 model has 700c carbon wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Revolt Advanced 0 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
