Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival XPLR eTap, Rival eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 166cm
SM
159cm - 171cm
MD
169cm - 181cm
MD/LG
174cm - 186cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Suspension Fork
Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS XPLR
Front Derailleur
N/A
Shift Levers
SRAM Rival eTap AXS, 2x12
Cassette
SRAM Rival, 12-speed, 10x44
Crank
SRAM Rival D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM Rival D1
Pedals
N/A
Wheels
Front Hub
Giant P-X2 Disc wheelset
Rear Hub
Giant P-X2 Disc wheelset
Rims
Giant P-X2 Disc wheelset
Spokes
Giant P-X2 Disc wheelset
Tires
Maxxis Rambler, 700x45c, tubeless
Brakes
Brakes
SRAM Rival eTap AXS hydraulic, Giant MPH rotors [F]160mm, [R]140mm
Brake Levers
SRAM Rival eTap AXS hydraulic
Cockpit
Stem
Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Handlebar
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips
Stratus Lite 3.0
Seat
Saddle
Giant Approach
Seatpost
Giant Contact Switch, dropper, 30.9mm XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.5 mm | 1.52 mm | 1.55 mm | 1.56 mm | 1.55 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 552 mm | 566 mm | 582 mm | 598 mm | 612 mm | 626 mm |
| Reach | 377 mm | 377 mm | 383 mm | 387 mm | 393 mm | 403 mm |
| Top Tube Length | 536 mm | 546 mm | 556 mm | 571 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 490 mm | 510 mm | 530 mm |
| Head Tube Angle | 70 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 135 mm | 150 mm | 165 mm | 180 mm | 195 mm |
| Bottom Bracket Drop | -454 mm | -454 mm | -454 mm | -454 mm | -454 mm | -454 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 169 cm | 174 cm | 179 cm | 189 cm |
| Rider Max Height | 166 cm | 171 cm | 181 cm | 186 cm | 191 cm | 200 cm |
Model Overview

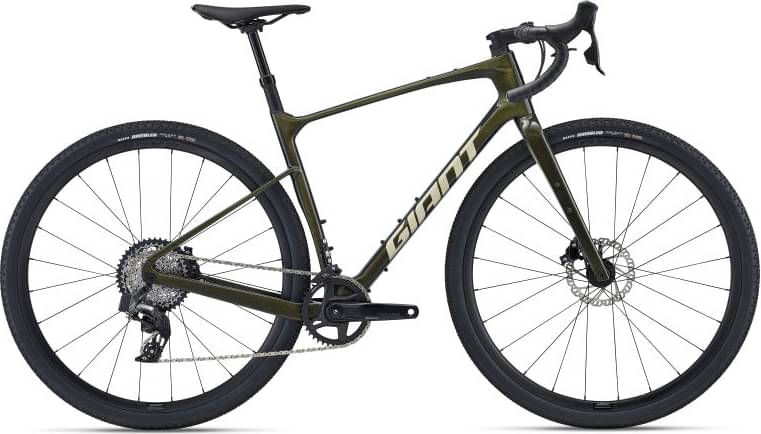

Revolt Advanced 1 is a Giant Revolt model. 68 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Giant Revolt 2 2022 is the cheapest bike model and costs 1485$. Giant Revolt Advanced Pro 0 2022 is the most expensive one and costs 5945$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Giant Revolt Advanced 1 price was 3928$. Comparing the average cost of a Gravel bike to this one, you will see that Revolt Advanced 1 price is 59.55% more expensive.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Giant Revolt Advanced 1 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Revolt Advanced 1 comes in 6 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
