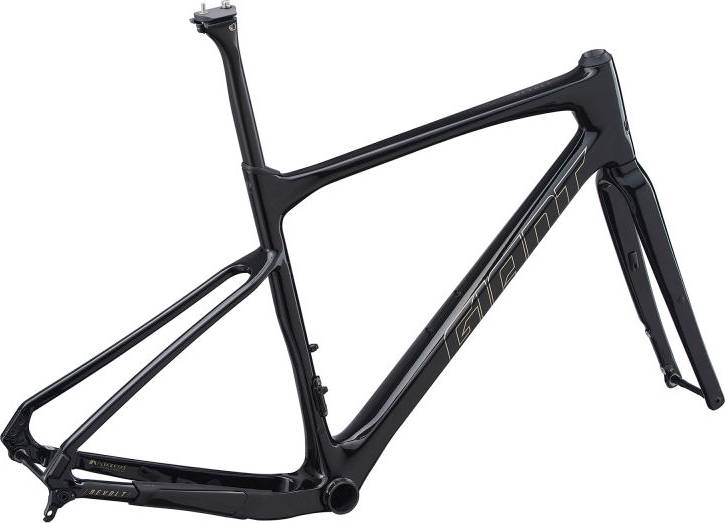

Giant Revolt Advanced Frameset 2021
2021 Road
Estimate price |
2,300$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
155cm - 166cm
SM
159cm - 171cm
MD
169cm - 181cm
MD/LG
174cm - 186cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite, 12x142mm thru-axle, disc
Suspension Fork
Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Rear Shock
N/A
Seat
Seatpost
Giant D-Fuse SLR, composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.54 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 599 mm | 605 mm | 616 mm | 621 mm | 631 mm | 647 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74.1 mm | 74.1 mm | 74.1 mm | 70.7 mm | 70.7 mm | 70.7 mm |
| Stack | 544 mm | 554 mm | 568 mm | 584 mm | 598 mm | 612 mm |
| Reach | 369 mm | 371 mm | 377 mm | 381 mm | 387 mm | 398 mm |
| Top Tube Length | 526 mm | 536 mm | 546 mm | 561 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 490 mm | 510 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 135 mm | 150 mm | 165 mm | 180 mm | 195 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1010 mm | 1016 mm | 1027 mm | 1032 mm | 1042 mm | 1058 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 715 mm | 730 mm | 748 mm | 764 mm | 782 mm | 799 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 169 cm | 174 cm | 179 cm | 189 cm |
| Rider Max Height | 166 cm | 171 cm | 181 cm | 186 cm | 191 cm | 200 cm |
Model Overview
Revolt Advanced Frameset is a Giant Revolt model. Giant released 68 frames variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Giant Revolt Advanced-FF 2021 is the most affordable frame of this model and has a price of 2100$. On the other hand, Giant Revolt Advanced Frameset 2021, is the most expensive and costs 2300$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel frames average price
If you want to purchase a solid Gravel frame, it is important to know that the average cost is 1505$. However, this doesn’t mean that if you spend less money on a Gravel frame, you couldn’t get a decent one. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
When Giant released this model in 2021, its price was 2300$. Doing a quick comparison, we notice that Revolt Advanced Frameset price is 52.82% higher than the average cost of a Gravel frame.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Sizes
Giant Revolt Advanced Frameset frame has 6 sizes, in the range of 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, you can easily find one that suits you.
