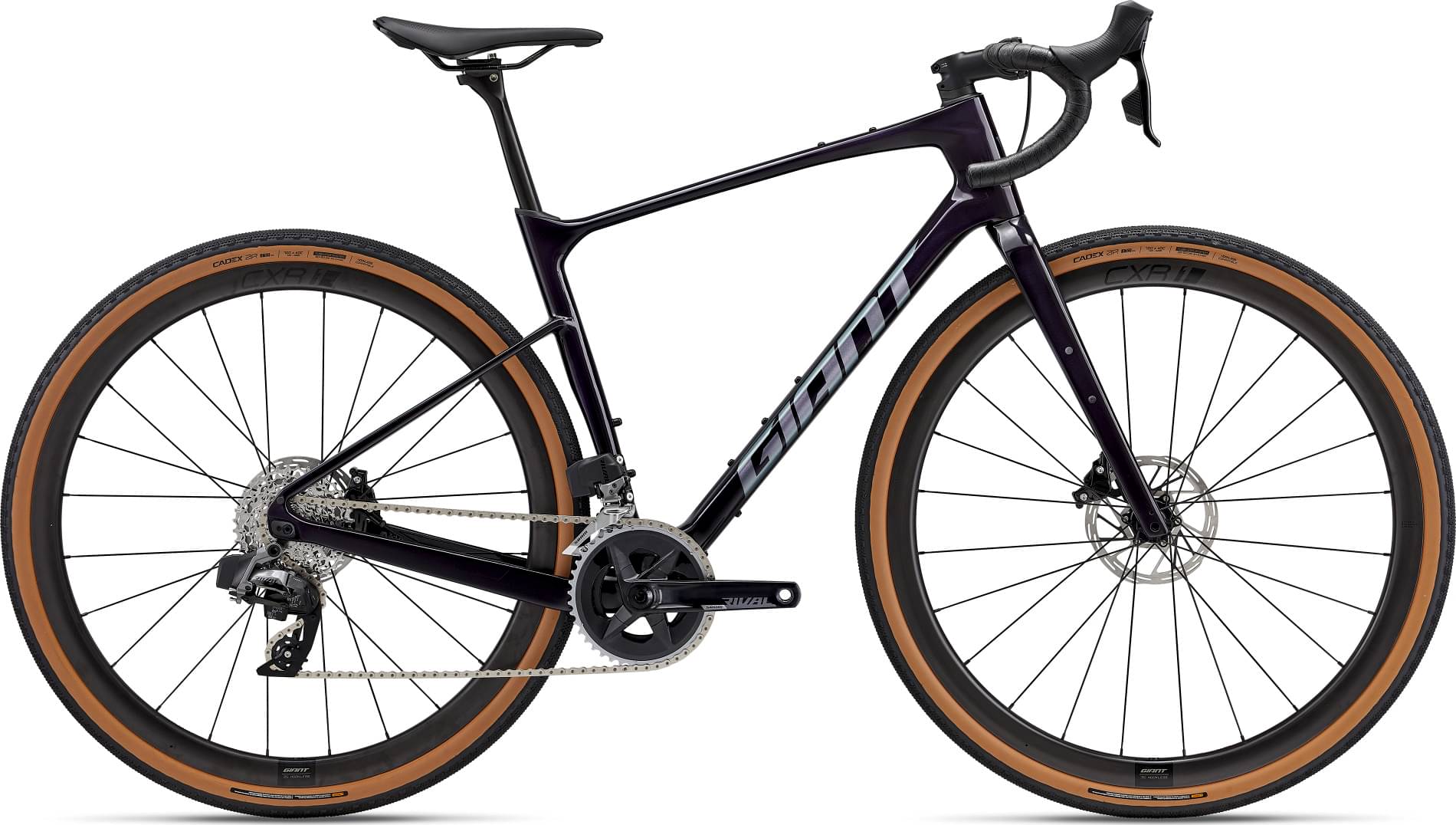

Giant Revolt, Advanced Pro 1 2023
2023 Road
Estimate price |
5,500$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS Short
155cm - 166cm
XS Long
155cm - 166cm
SM Short
159cm - 171cm
SM Long
159cm - 171cm
MD Short
169cm - 181cm
MD Long
169cm - 181cm
MD/LG
174cm - 186cm
MD/LG
174cm - 186cm
LG Short
179cm - 191cm
LG Long
179cm - 191cm
XL Short
189cm - 200cm
XL Long
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Suspension Fork
Advanced SL-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS
Front Derailleur
SRAM Rival eTap AXS
Shift Levers
SRAM Rival eTap AXS, 2x12
Cassette
SRAM Rival, 12-speed, 10x36
Crank
SRAM Rival D1 DUB, 30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM Rival D1
Pedals
N/A
Wheels
Front Hub
[F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle
Rear Hub
[F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle
Rims
Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
Spokes
Sapim CX-Ray
Tires
CADEX AR, 700x40c, tubeless
Brakes
Brakes
SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
Brake Levers
SRAM Rival eTap AXS hydraulic
Cockpit
Stem
Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Handlebar
Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips
Stratus Lite 3.0
Seat
Saddle
Giant Approach SL
Seatpost
Giant D-Fuse SLR, composite, -5/+15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Short | XS Long | SM Short | SM Long | MD Short | MD Long | MD/LG | MD/LG | LG Short | LG Long | XL Short | XL Long |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.46 mm | 1.5 mm | 1.5 mm | 1.52 mm | 1.52 mm | 1.55 mm | 1.55 mm | 1.56 mm | 1.56 mm | 1.55 mm | 1.55 mm |
| Bottom Bracket Height | 269 mm | 268 mm | 269 mm | 268 mm | 269 mm | 268 mm | 269 mm | 268 mm | 269 mm | 268 mm | 269 mm | 268 mm |
| Front Center | 612 mm | 612 mm | 608 mm | 608 mm | 614 mm | 614 mm | 619 mm | 619 mm | 629 mm | 629 mm | 644 mm | 644 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 78 mm | 82 mm | 72 mm | 75 mm | 68 mm | 72 mm | 65 mm | 68 mm | 65 mm | 68 mm | 65 mm | 68 mm |
| Stack | 552 mm | 552 mm | 566 mm | 566 mm | 582 mm | 582 mm | 598 mm | 598 mm | 612 mm | 612 mm | 626 mm | 626 mm |
| Reach | 377 mm | 377 mm | 377 mm | 377 mm | 383 mm | 383 mm | 387 mm | 387 mm | 393 mm | 393 mm | 403 mm | 403 mm |
| Top Tube Length | 536 mm | 536 mm | 546 mm | 546 mm | 556 mm | 556 mm | 571 mm | 571 mm | 581 mm | 581 mm | 596 mm | 596 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 430 mm | 450 mm | 450 mm | 470 mm | 470 mm | 490 mm | 490 mm | 510 mm | 510 mm | 530 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 135 mm | 150 mm | 150 mm | 165 mm | 165 mm | 180 mm | 180 mm | 195 mm | 195 mm |
| Chainstay Length | 421 mm | 431 mm | 421 mm | 431 mm | 421 mm | 431 mm | 421 mm | 431 mm | 421 mm | 431 mm | 421 mm | 431 mm |
| Wheelbase | 1020 mm | 1030 mm | 1016 mm | 1026 mm | 1022 mm | 1032 mm | 1027 mm | 1037 mm | 1037 mm | 1047 mm | 1052 mm | 1062 mm |
| Bottom Bracket Drop | 80 mm | 81 mm | 80 mm | 81 mm | 80 mm | 81 mm | 80 mm | 81 mm | 80 mm | 81 mm | 80 mm | 81 mm |
| Standover Height | 720 mm | 727 mm | 736 mm | 743 mm | 753 mm | 760 mm | 770 mm | 776 mm | 787 mm | 793 mm | 803 mm | 810 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 155 cm | 159 cm | 159 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 189 cm | 189 cm |
| Rider Max Height | 166 cm | 166 cm | 171 cm | 171 cm | 181 cm | 181 cm | 186 cm | 186 cm | 191 cm | 191 cm | 200 cm | 200 cm |
Model Overview
Revolt, Advanced Pro 1 is part of the Giant Revolt model. Giant released 68 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Giant Revolt X 1 2023 is the most affordable bike of this model and has a price of 2603$. On the other hand, Giant Revolt X, Advanced Pro 0 2023, is the most expensive and costs 6800$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 5500$. If we compare this with the average Gravel bike cost we notice that the price is 123.4% more expensive.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Revolt, Advanced Pro 1 2023 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Revolt, Advanced Pro 1 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 12 sizes. They vary from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
