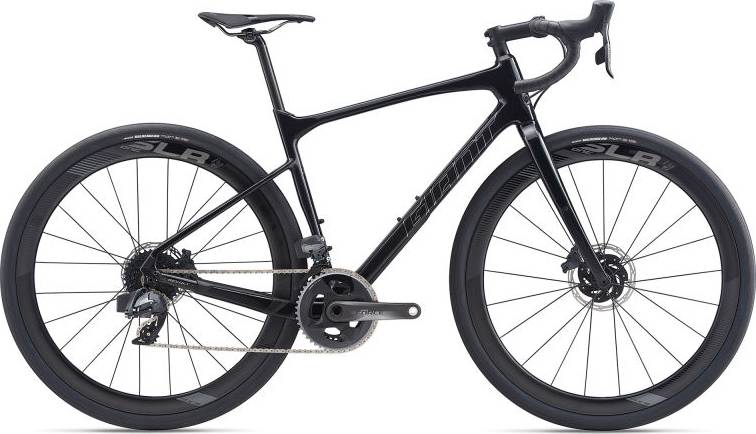

Giant Revolt Advanced Pro Force 2020
2020 Road
Estimate price |
5,500$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 166cm
SM
159cm - 171cm
MD
169cm - 181cm
MD/LG
174cm - 186cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite, 12x142mm thru-axle, disc
Suspension Fork
Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM Force eTap AXS
Front Derailleur
SRAM Force eTap AXS
Shift Levers
SRAM Force eTap AXS
Cassette
SRAM Force, 12-speed, 10x33
Crank
SRAM Force D1 DUB, 33/46
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM Force D1, 12-speed
Pedals
N/A
Wheels
Front Hub
Giant SLR-1 WheelSystem
Rear Hub
Giant SLR-1 WheelSystem
Rims
Giant SLR-1 Composite WheelSystem, 42mm
Spokes
Giant SLR-1 WheelSystem
Tires
Maxxis Velocita, 700x40
Brakes
Brakes
SRAM Force eTap AXS hydraulic
Brake Levers
SRAM Force eTap AXS hydraulic
Cockpit
Stem
Giant Contact SL, 8-degree
Handlebar
Giant Contact SLR D-Fuse, 31.8
Seat
Saddle
Giant Contact SL (neutral)
Seatpost
Giant D-Fuse SL, composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.54 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 599 mm | 605 mm | 616 mm | 621 mm | 631 mm | 647 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 74 mm | 74 mm | 71 mm | 71 mm | 71 mm |
| Stack | 544 mm | 554 mm | 568 mm | 584 mm | 598 mm | 612 mm |
| Reach | 369 mm | 371 mm | 377 mm | 381 mm | 387 mm | 398 mm |
| Top Tube Length | 526 mm | 536 mm | 546 mm | 561 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 490 mm | 510 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 135 mm | 150 mm | 165 mm | 180 mm | 195 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1010 mm | 1016 mm | 1027 mm | 1032 mm | 1042 mm | 1058 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 715 mm | 730 mm | 748 mm | 764 mm | 782 mm | 799 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 169 cm | 174 cm | 179 cm | 189 cm |
| Rider Max Height | 166 cm | 171 cm | 181 cm | 186 cm | 191 cm | 200 cm |
About this model
Revolt Advanced Pro Force is part of the Giant Revolt model. There are 68 bikes that carry this model name. You can easily view all of the Giant Revolt bikes models from 2020, here.
Model range prices
The most economical model, the Giant Revolt 2 2020 has a starting price of 1000$. Giant Revolt Advanced Pro Force 2020 on the other hand is the most expensive at 5500$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Giant released this model in 2020, its price was 5500$. In conclusion, this bike price is 123.4% higher than the price of the average Gravel bike.
Overview of components
Fork material
Revolt Advanced Pro Force has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The Revolt Advanced Pro Force 2020 bike is equipped with 700c carbon wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Revolt Advanced Pro Force comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
