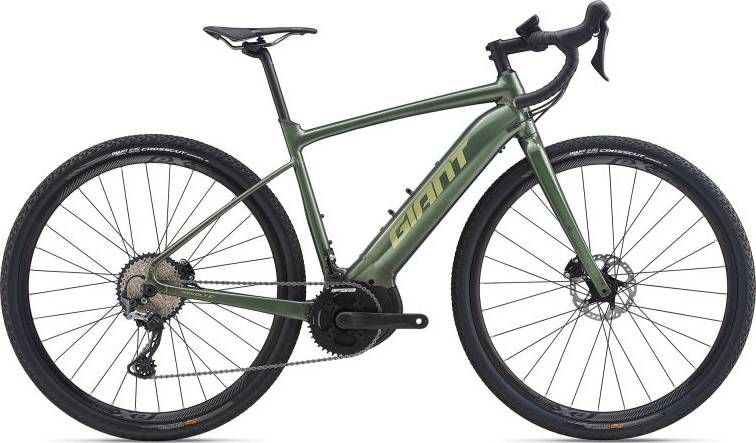

Giant Revolt E+ Pro Electric Bike 2020
2020 E-bike
Estimate price |
4,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, FSA -
Suspension Rigid -
Motor Giant 250W 80Nm mid-drive -
Battery Giant EnergyPak Smart 375, 36V Integrated Lithium-Ion -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminum
Suspension Fork
Advanced-grade composite, OverDrive2 steerer, 12x100QR
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano GRX
Shift Levers
Shimano GRX 1x11speed
Cassette
Shimano CS-M7000, 11-42, 11-Speed
Crank
Giant custom forged by FSA, Mega Tooth 42T
Bottom Bracket
N/A
Chain
KMC e.11 Turbo, EcoProteq
Pedals
Aluminum Platform
Wheels
Front Hub
Giant Performance Tracker Road, Sealed Bearing
Rear Hub
Giant Performance Tracker Road, Sealed Bearing
Rims
Giant eX 2, Tubeless Ready, 700c aluminium
Spokes
Sapim E-Lite [r] Race [f], e-bike optimized
Tires
Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, w/o Reflex
Brakes
Brakes
Shimano GRX 160mm hydraulic disc
Brake Levers
Shimano GRX hydraulic disc
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect, 31.8mm
Seat
Saddle
Giant Contact, Neutral
Seatpost
Giant D-shape, Composite
Motor & Battery
Motor
Giant SyncDrive Pro
Battery
Giant EnergyPak Smart 375, 36V Integrated Lithium-Ion
Remote
Giant RideControl EVO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.51 mm | 1.52 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm |
| Front Center | 604 mm | 609 mm | 620 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 68.8 mm | 68.8 mm | 68.8 mm |
| Stack | 557 mm | 571 mm | 585 mm |
| Reach | 379 mm | 379 mm | 385 mm |
| Top Tube Length | 544 mm | 554 mm | 564 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 135 mm | 150 mm | 165 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1049 mm | 1054 mm | 1065 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
Revolt E+ Pro Electric Bike is part of the Giant E Revolt model. There are 6 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Giant Revolt E+ Pro 2020 is the most affordable e-bike of this model and has a price of 4200$. On the other hand, Giant Revolt E+ Pro Electric Bike 2020, is the most expensive and costs 4378$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel e-bikes
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Giant released this model in 2020, its price was 4378$. Comparing this to the average Gravel e-bike price, we see that the price is 20.21% more expensive.
Revolt E+ Pro Electric Bike components
Fork material
Revolt E+ Pro Electric Bike has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Revolt E+ Pro Electric Bike 2020 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
