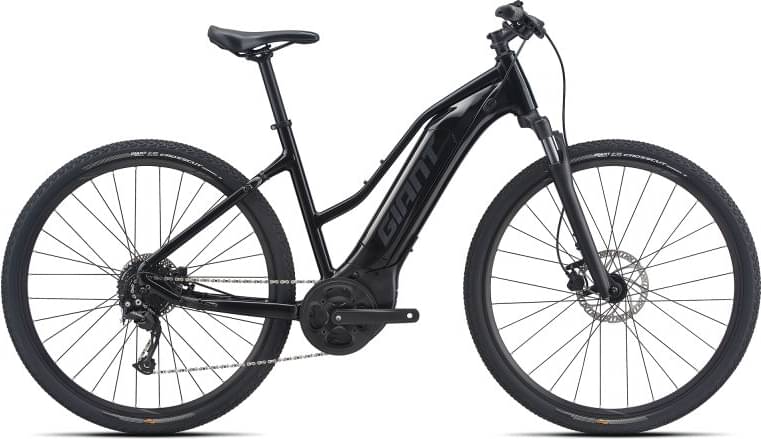

Giant Roam E+ Stagger Frame 2021
2021 E-bike
Estimate price |
2,943$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Alivio, Shimano -
Suspension Hardtail -
Motor Giant 250W 80Nm mid-drive -
Battery Giant EnergyPak 400Wh, Side-release -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminium, Overdrive 1½ - 1?" head tube, integrated KS18 kickstand mount, compatible with fenders
Suspension Fork
SR Suntour NEX E25 63mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Alivio M3100, 9-Speed
Front Derailleur
-
Shift Levers
Shimano SL-M2000
Cassette
Shimano CS-HG200, 11-36T, 9-Speed
Crank
Forged Alloy minimal Q-factor, 42T
Bottom Bracket
N/A
Chain
KMC e.9 Sport, e-bike optimised
Pedals
Aluminium Platform
Wheels
Front Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR
Rear Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR
Spokes
Stainless steel
Tires
Giant Crosscut Gravel 2, 700x45c, Tubeless Ready, Reflex (max tyre width possible: 50mm)
Brakes
Brakes
Tektro HD-M275, hydraulic disc, 160/180mm
Brake Levers
Tektro HD-M275
Cockpit
Stem
Giant Sport,15-Degree, 25.4
Handlebar
Giant Sport, 25.4
Seat
Saddle
Giant Sport Comfort
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Core
Battery
Giant EnergyPak 400Wh, Side-release
Remote
N/A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.54 mm | 1.52 mm |
| Front Center | 664 mm | 673 mm | 694 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 91.3 mm | 91.3 mm | 91.3 mm |
| Stack | 610 mm | 619 mm | 634 mm |
| Reach | 384 mm | 402 mm | 417 mm |
| Top Tube Length | 571 mm | 591 mm | 611 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1113 mm | 1122 mm | 1143 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 683 mm | 677 mm | 666 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Roam E+ Stagger Frame is part of the Giant E Roam model. 9 e-bikes variations carry this model name so far. You can easily view all of the Giant E Roam e-bikes models from 2021, here.
Model range prices
The most economical model, the Giant Roam E+ STA 2021 has a starting price of 2600$. Giant Roam E+ Stagger Frame Electric Bike 2021 on the other hand is the most expensive at 2685$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2675$. Comparing this to the average Hybrid e-bike price, we see that the price is 7.86% higher.
Overview of components
Fork
The Roam E+ Stagger Frame comes factory-installed with the SunTour NEX fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Roam E+ Stagger Frame 2021 e-bike is equipped with 700c wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Giant Roam E+ Stagger Frame e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
