Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-grade aluminum
Suspension Fork
SR Suntour NEX, 63mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Altus
Shift Levers
Shimano EF51 Trigger- shift
Cassette
SRAM PG820 11x32, 8-speed
Crank
Shimano M131, 28/38/48
Bottom Bracket
Shimano, Sealed
Chain
KMC Z72
Pedals
Nylon w/ Anti-slip platform
Wheels
Front Hub
Formula, 32h
Rear Hub
Formula, 32h
Rims
Giant Alloy, Double wall
Spokes
Stainless Steel, 14g
Tires
Kenda Multi-Surface, 26x1.95
Brakes
Brakes
Alloy, linear pull
Brake Levers
Alloy comfort
Cockpit
Stem
Alloy adjustable
Handlebar
High-tensile steel, High rise, 25.4mm
Seat
Saddle
Giant Comfort Groove Plus
Seatpost
Alloy Suspension, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 584 mm | 594 mm | 610 mm | 625 mm |
| Seat Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 201 mm | 216 mm | 231 mm | 244 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1064 mm | 1074 mm | 1090 mm | 1105 mm |
| Standover Height | 716 mm | 759 mm | 810 mm | 853 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

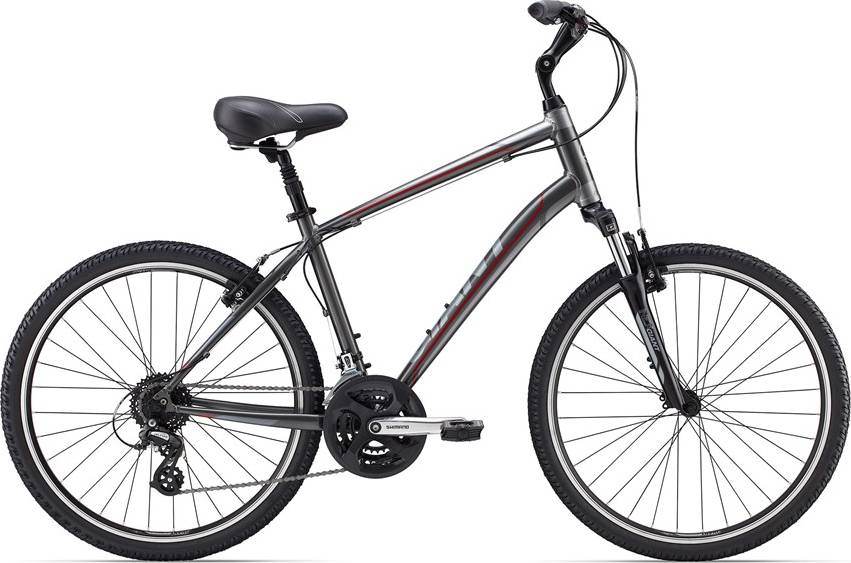

Sedona DX belongs to the Giant Sedona model. Giant released 47 bikes variations of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Model range prices
Giant Sedona 2015 is the most economical model, with a starting price of 360$. Giant Sedona DX 2015 on the other hand costs 450$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Comfort bikes
If you want an acceptable Comfort bike you should know that the average price is 360$. However, even though the average price of a Comfort bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2015 for 450$. If we compare this with the average Comfort bike cost we notice that the price is 25% higher.
Sedona DX components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Sedona DX bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
