Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 80mm -
Fork SunTour XCT
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum
Suspension Fork
SR Suntour XCT, 80mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Altus
Shift Levers
Shimano EF500
Cassette
Shimano CS-HG31, 11x32
Crank
ProWheel Swift, 28/38/48
Bottom Bracket
Shimano UN26
Chain
Z72
Pedals
Nylon/Anti-Slip Platform, 9/16"
Wheels
Front Hub
Alloy
Rear Hub
Alloy
Rims
Giant GX 28
Spokes
Alloy
Tires
Kenda K892 26x2.3, Multi-Surface
Brakes
Brakes
TKB-172
Brake Levers
Shimano EF500
Cockpit
Stem
Alloy Adjustable
Handlebar
High , 25.4mm
Seat
Saddle
Giant Comfort Groove Plus, Men's
Seatpost
Alloy Suspension, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.84 mm | 1.8 mm | 1.81 mm | 1.8 mm |
| Front Center | 617 mm | 612 mm | 622 mm | 637 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 82 mm | 82 mm | 82 mm | 82 mm |
| Stack | 623 mm | 632 mm | 646 mm | 660 mm |
| Reach | 339 mm | 351 mm | 356 mm | 366 mm |
| Top Tube Length | 567 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Seat Tube Length | 380 mm | 455 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 190 mm | 200 mm | 215 mm | 230 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1066 mm | 1061 mm | 1071 mm | 1086 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 713 mm | 756 mm | 787 mm | 829 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

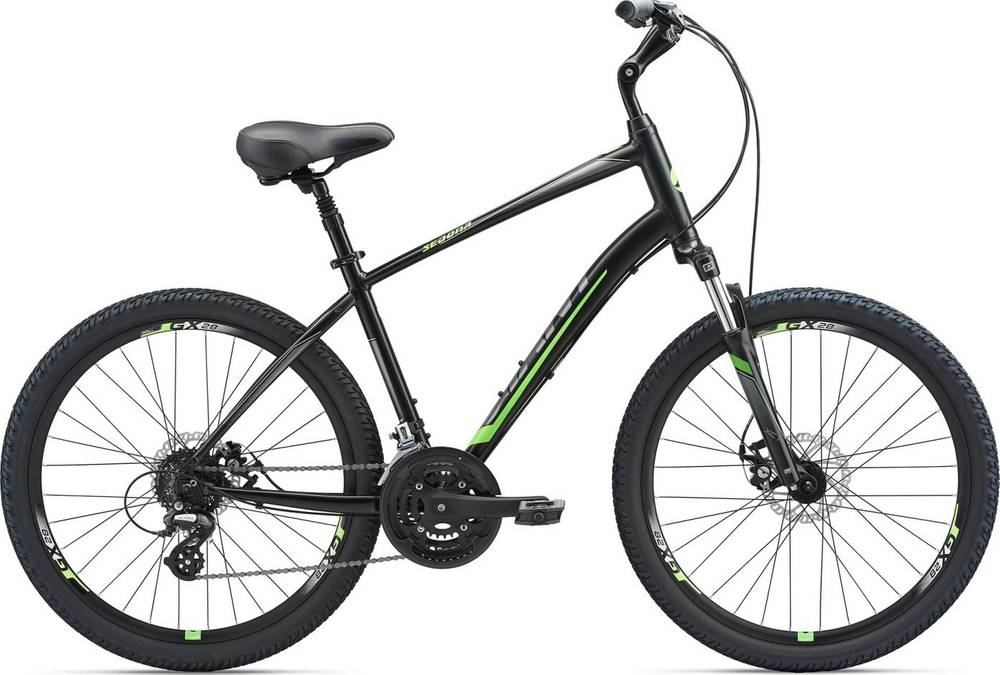

Sedona DX Disc is a Giant Sedona model. Giant released 47 bikes variations of this model so far. Take a sneak peek at all Giant Sedona bikes models from 2018, by clicking here.
Model range prices
Giant Sedona 2018 is the most affordable bike of this model and has a price of 360$. On the other hand, Giant Sedona DX Disc 2018, is the most expensive and costs 510$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Comfort bikes average price
If you want to purchase a solid Comfort bike, it is important to know that the average cost is 360$. However, you could also get a good Comfort bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Giant Sedona DX Disc price was 510$. If we compare this with the average Comfort bike cost we notice that the price is 41.67% more expensive.
Overview of components
Fork
The fork installed on this bike is the SunTour XCT model. The travel on this model is 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Sedona DX Disc are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sedona DX Disc has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
