Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Full -
Motor Yamaha 250W 70Nm mid-drive -
Battery EnergyPak Smart 625Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 173cm
MD
170cm - 181cm
LG
178cm - 189cm
XL
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX Aluminum, 120mm FlexPoint suspension system, 141mm Boost QR, Integrated KS18 Kickstand Mount
Suspension Fork
SR Suntour XCR 34 Air LO-R, 130mm travel, tapered steerer, Lockout, 110x15 thru-axle
Rear Shock
RockShox Monarch R, High Volume, 184x44mm, custom tuned
Drivetrain
Rear Derailleur
Shimano Deore, 10-speed, Shadow+ LinkGlide
Shift Levers
Shimano Deore, 10-speed LinkGlide
Cassette
Shimano CS-LG600-10, 11-43T, 10-speed LinkGlide
Crank
Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring (S:160, M/L:165, XL:170)
Bottom Bracket
-
Chain
Shimano, CN-LG500, 9/10/11speed for LinkGlide
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR
Rear Hub
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR
Rims
Giant AM 29", Tubeless ready, 30mm inner width
Spokes
Stainless Steel
Tires
Maxxis Rekon 29x2.4" foldable, 60tpi, EXO, Tubeless Ready
Brakes
Brakes
Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm
Brake Levers
Tektro HD-M745 Orion
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect TR Riser 31.8x780mm
Grips
Giant Tactal single lock-on
Seat
Saddle
Giant Sport
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
SyncDrive Sport, 70Nm, powered by Yamaha
Battery
EnergyPak Smart 625Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.43 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 692 mm | 713 mm | 739 mm | 766 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 113.6 mm | 113.6 mm | 113.6 mm | 113.6 mm |
| Stack | 599 mm | 609 mm | 618 mm | 632 mm |
| Reach | 410 mm | 427 mm | 450 mm | 471 mm |
| Top Tube Length | 586 mm | 606 mm | 631 mm | 656 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 406 mm | 432 mm | 482 mm | 507 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 481 mm | 481 mm | 481 mm | 481 mm |
| Wheelbase | 1172 mm | 1193 mm | 1219 mm | 1246 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 747 mm | 762 mm | 794 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 170 cm | 178 cm | 186 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 198 cm |
About this model

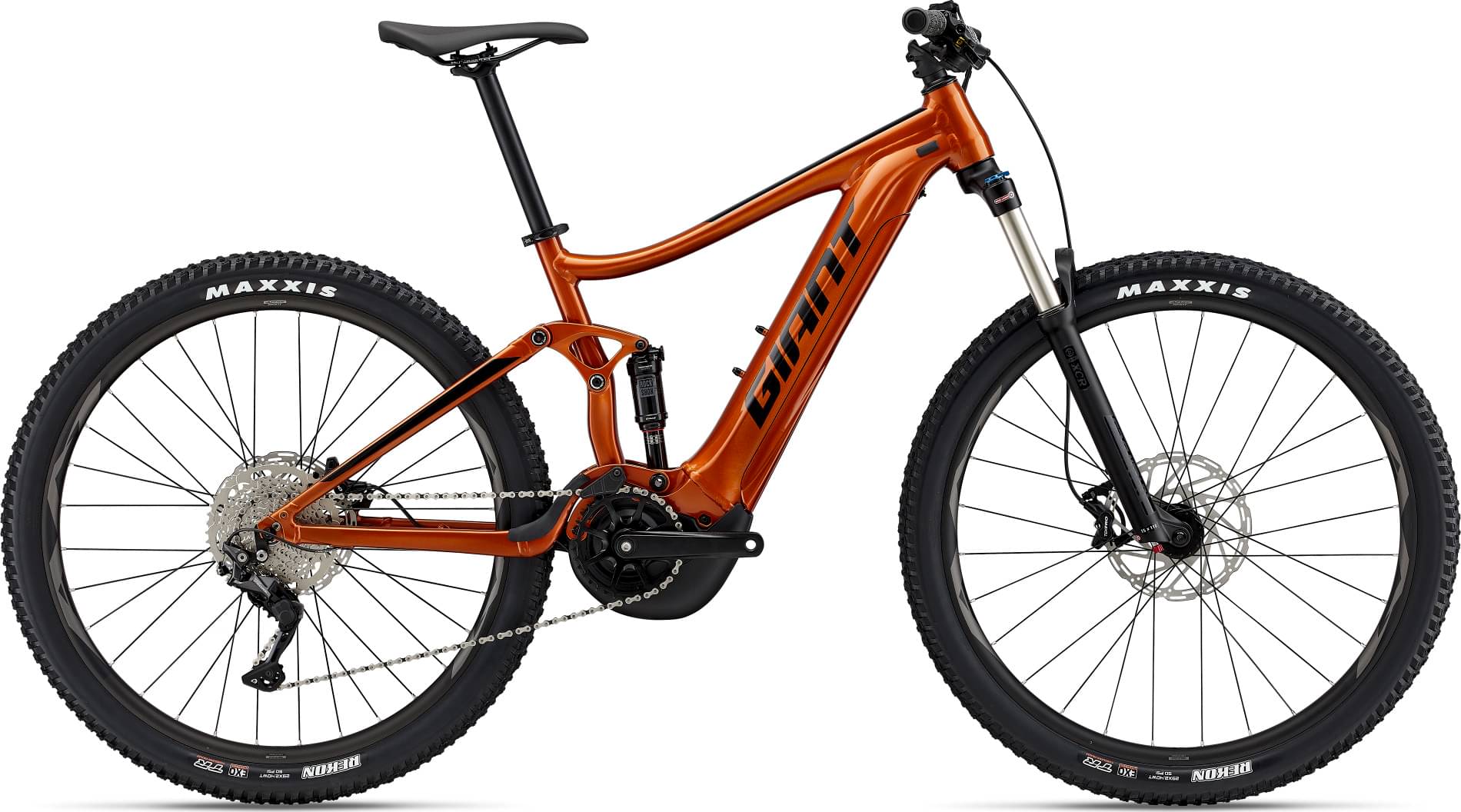

Stance E+ 2 -, 625 is a Giant E Stance model. Giant released 29 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Giant Stance E+ 2 2022 is the most economical model, with a starting price of 3629$. Giant Stance E+, EX Pro 2022 on the other hand costs 5308$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
This e-bike has the Suntour XCR Air fork installed. The fork’s travel is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the RockShox Monarch R rear shock model, which has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Stance E+ 2 -, 625 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stance E+ 2 -, 625 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Giant Stance E+ 2 -, 625 e-bike has 4 sizes, in the range of 163 cm – 198 cm (5.35 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
