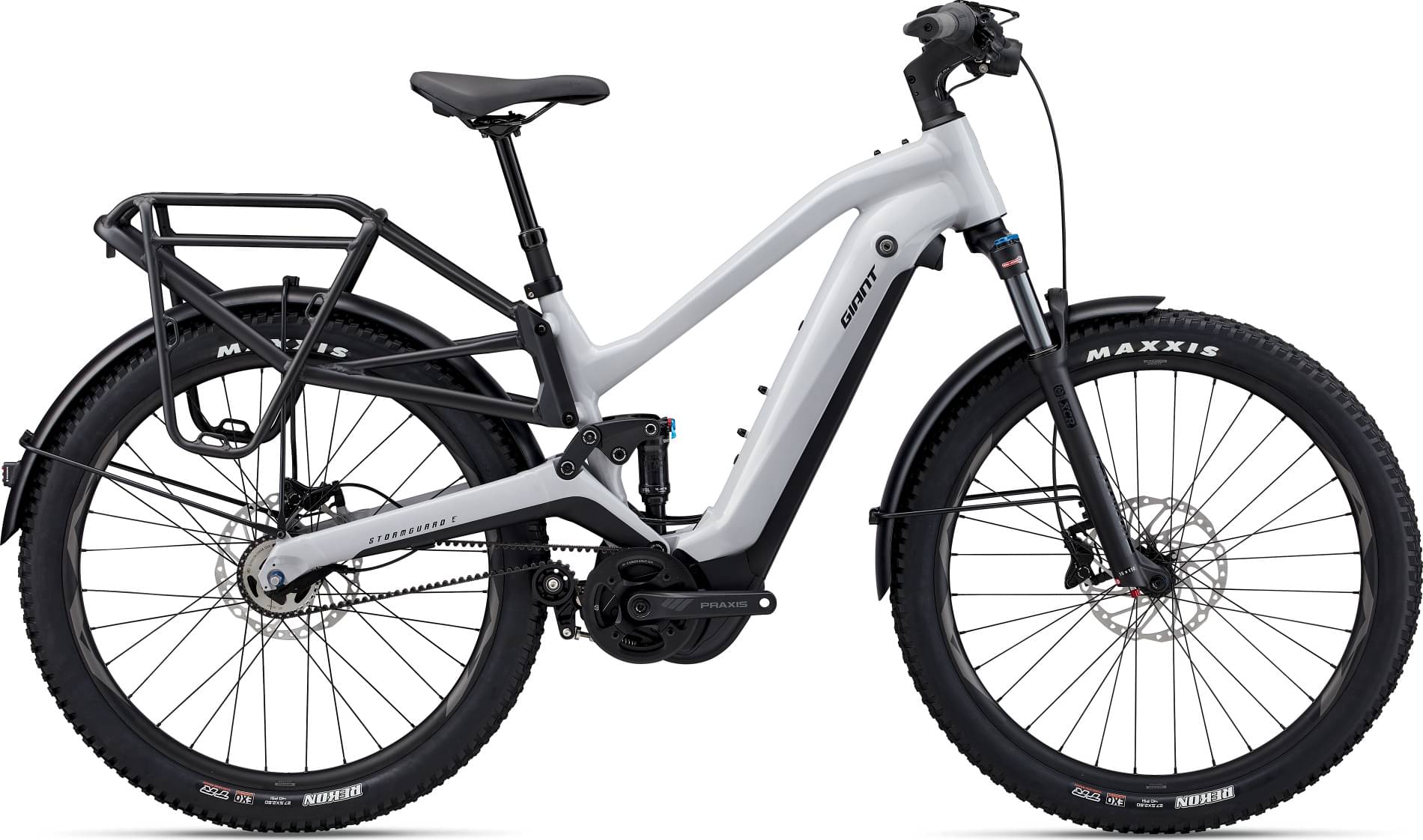

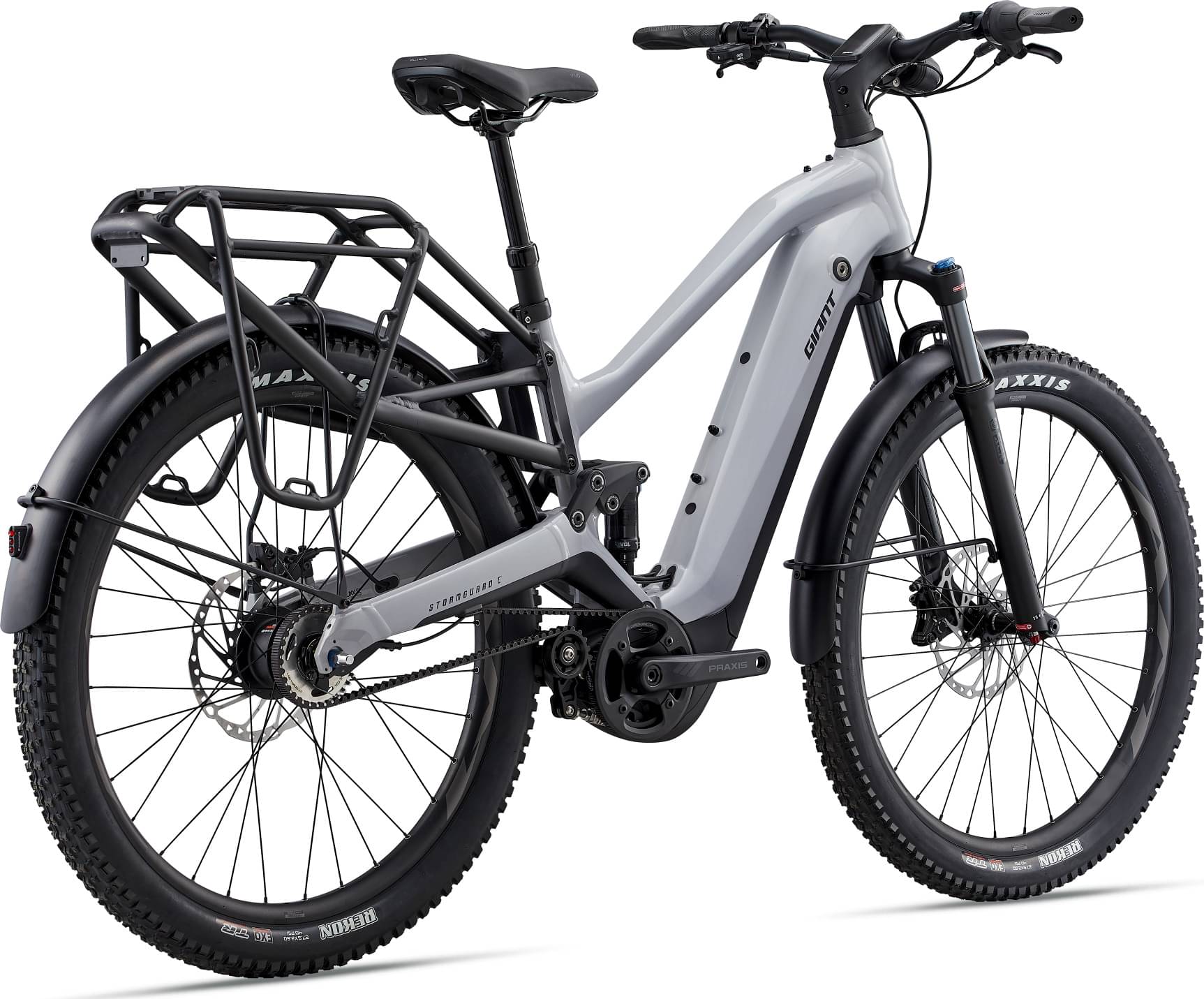

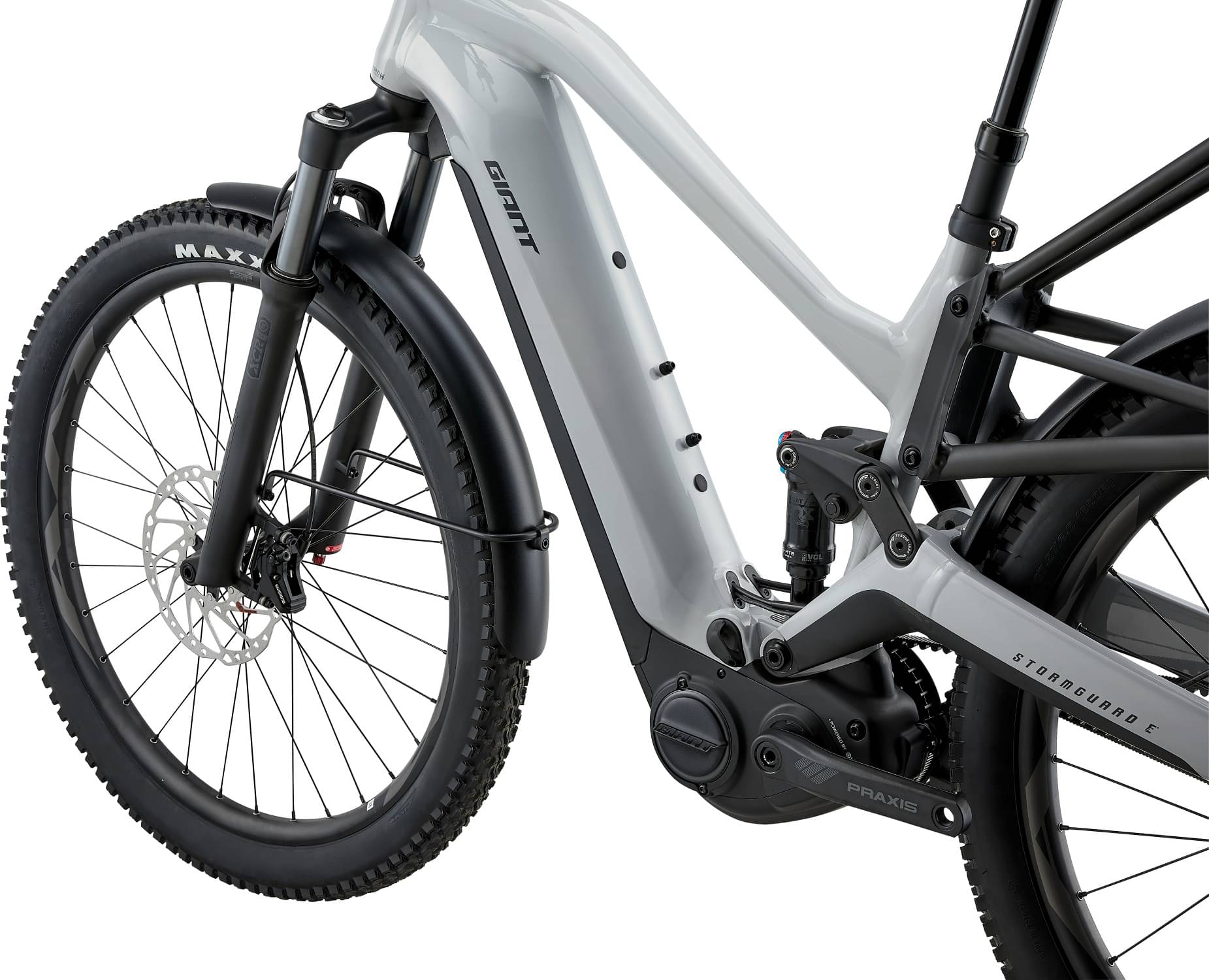

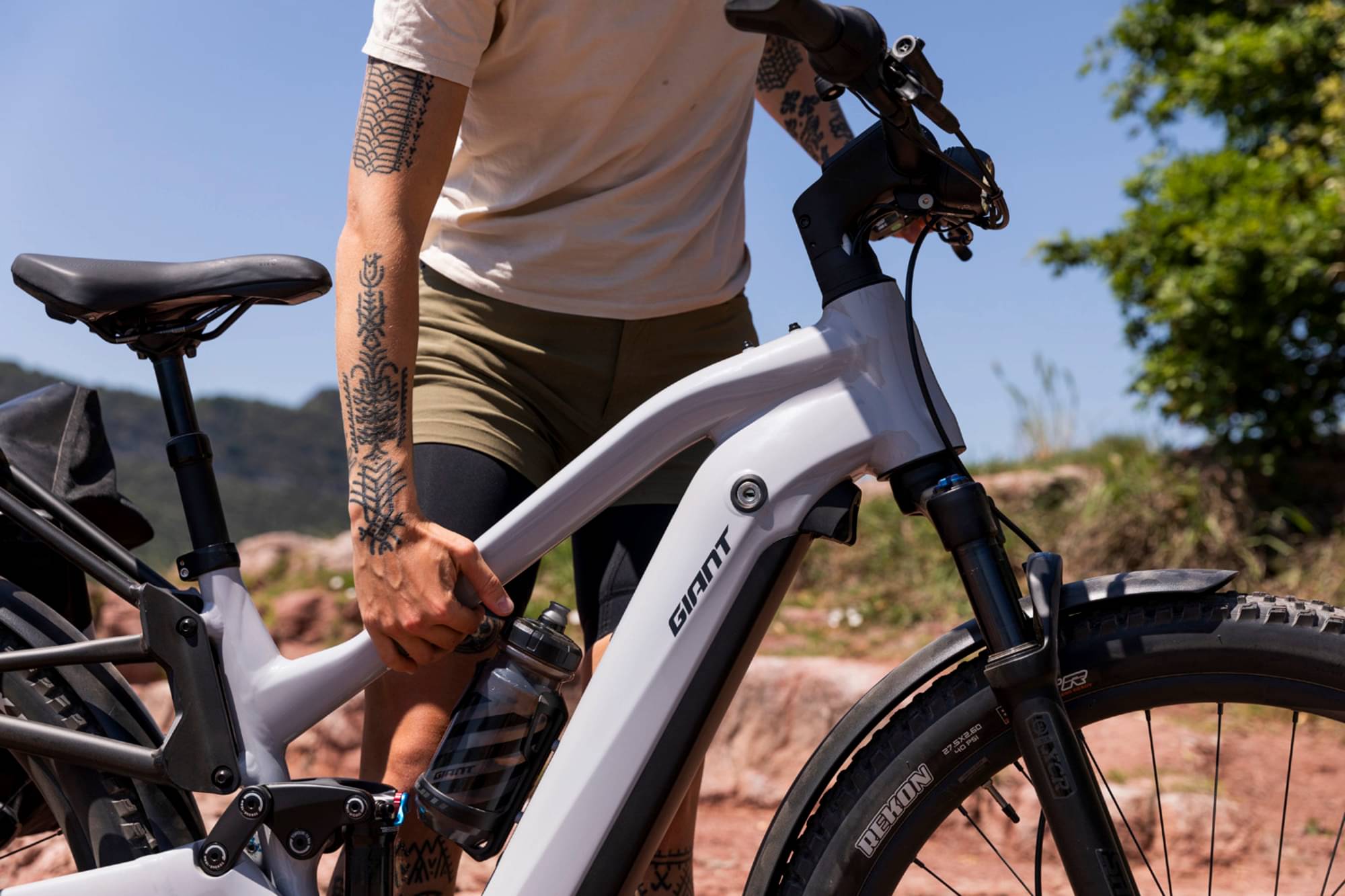

Giant Stormguard, E+ 2 2023
2023 E-bike
Estimate price |
7,454$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Fork Suntour XCR Air -
Groupset Nexus, Gates CDX -
Suspension Hardtail -
Motor Yamaha 250W 85Nm mid-drive -
Battery Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production -

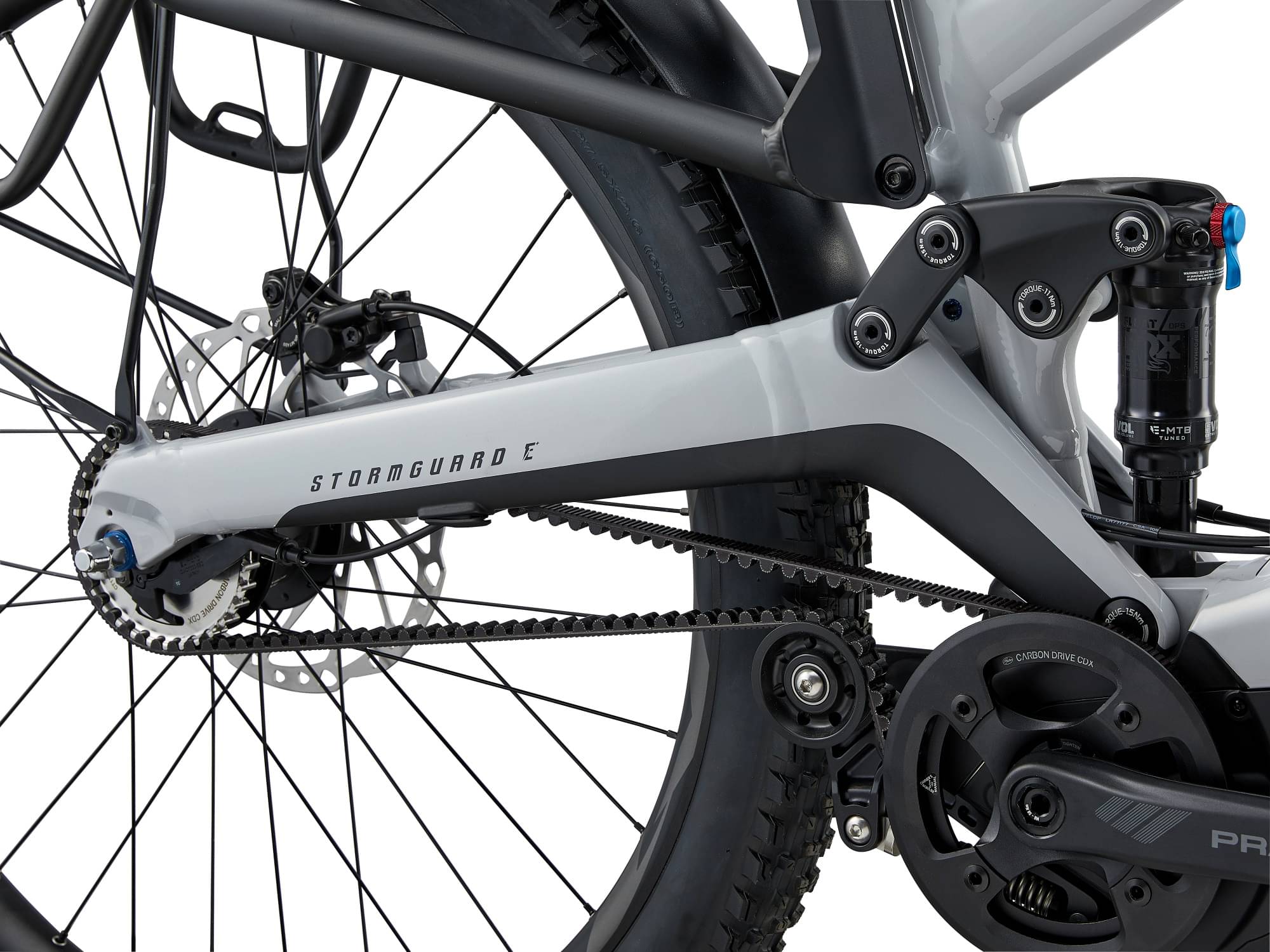

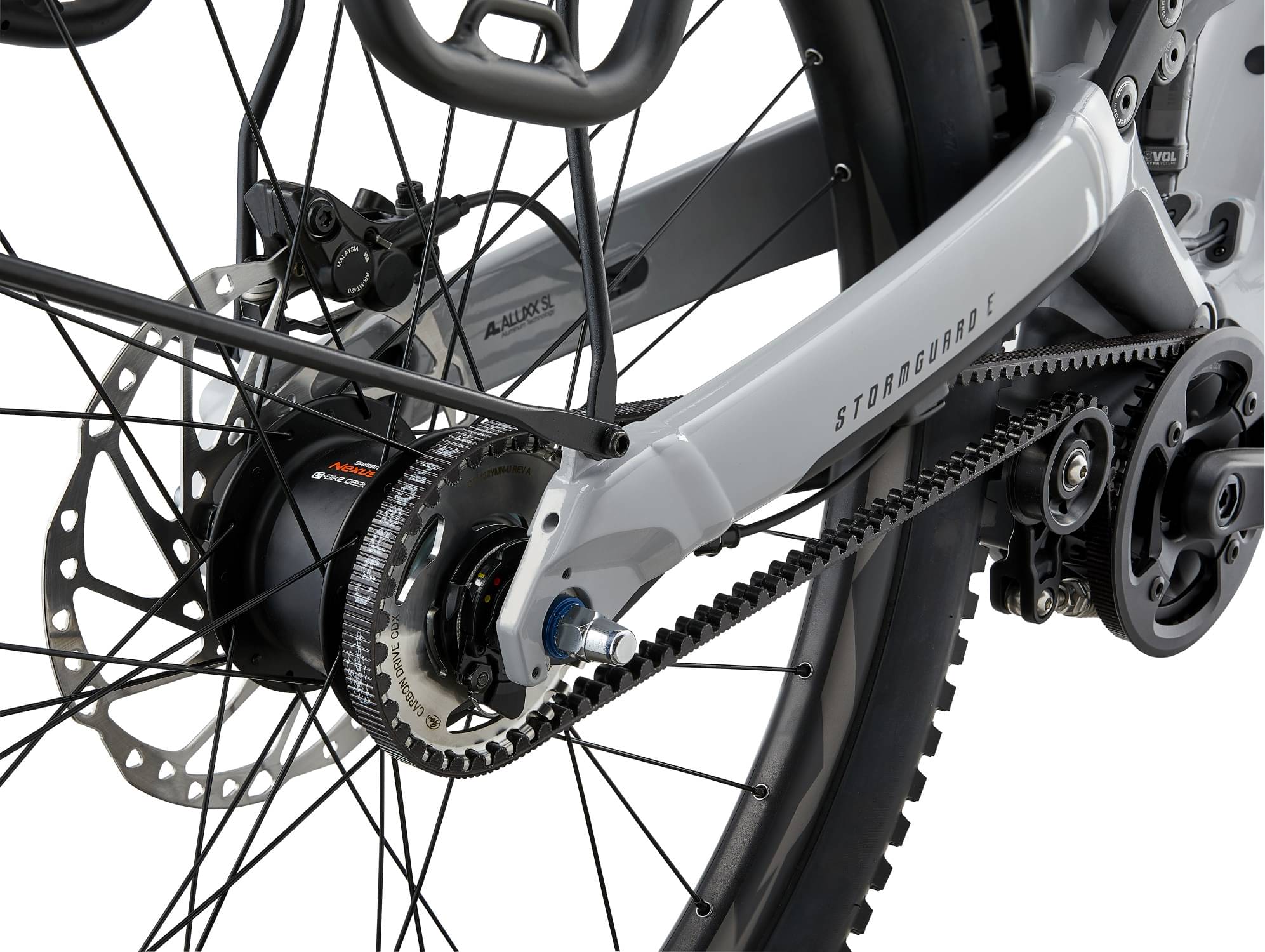

Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminum, 100mm Stable Link Suspension System, Overdrive 3, 1.8" - 1.5" head tube, w/ Integrated KSA18 kickstand mount, Giant EnergyPak Plus range extender compatible
Suspension Fork
SR Suntour XCR 34 Boost DS, Air, 100mm travel, e-optimized, tappered steerer, lockout, 15AH2-110
Rear Shock
Fox Float DPS, 165x38mm, trunnion, custom tuned
Drivetrain
Shift Levers
Shimano Nexus E5 RevoShift
Cassette
Gates 32T
Crank
Gates CDX 42T Praxis e-Cadet crankarm set
Bottom Bracket
N/A
Chain
Gates CDX carbon
Pedals
Aluminum Platform
Wheels
Front Hub
Shimano MT410 Boost, Center-Lock, [F] 110x15, Shimano Nexus E5 [R]
Rear Hub
Shimano MT410 Boost, Center-Lock, [F] 110x15, Shimano Nexus E5 [R]
Rims
Giant AM 27.5, Tubeless ready, 30mm inner width, e-bike optimized
Spokes
Sapim Strong [R] Race [F], e-bike optimized
Tires
Maxxis Rekon 27.5x2.6", 60TPI Foldable TLR EXO
Brakes
Brakes
Shimano Deore BR-MT420, 4-piston, hydraulic disc, 203mm
Brake Levers
Shimano Deore
Cockpit

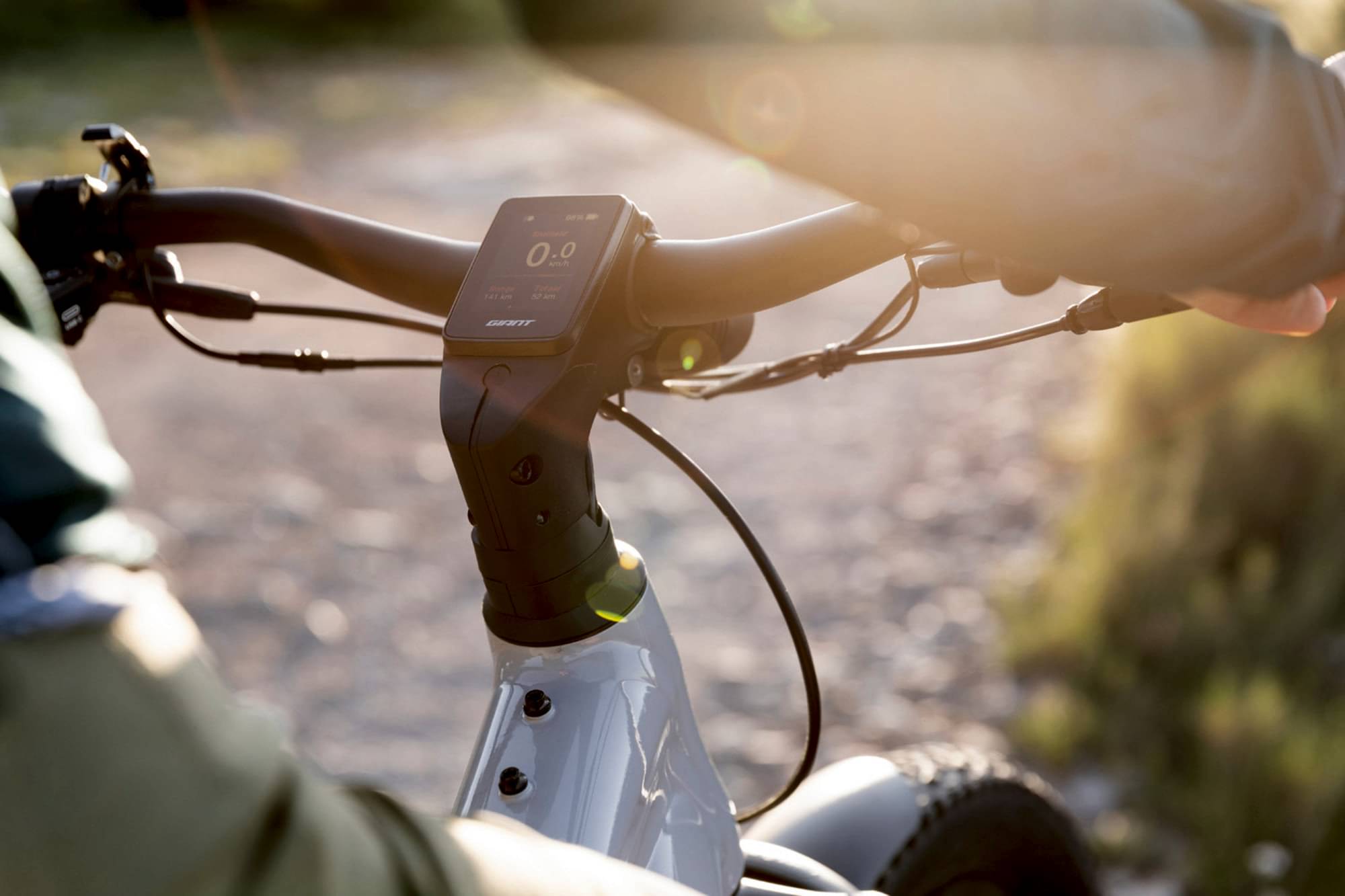

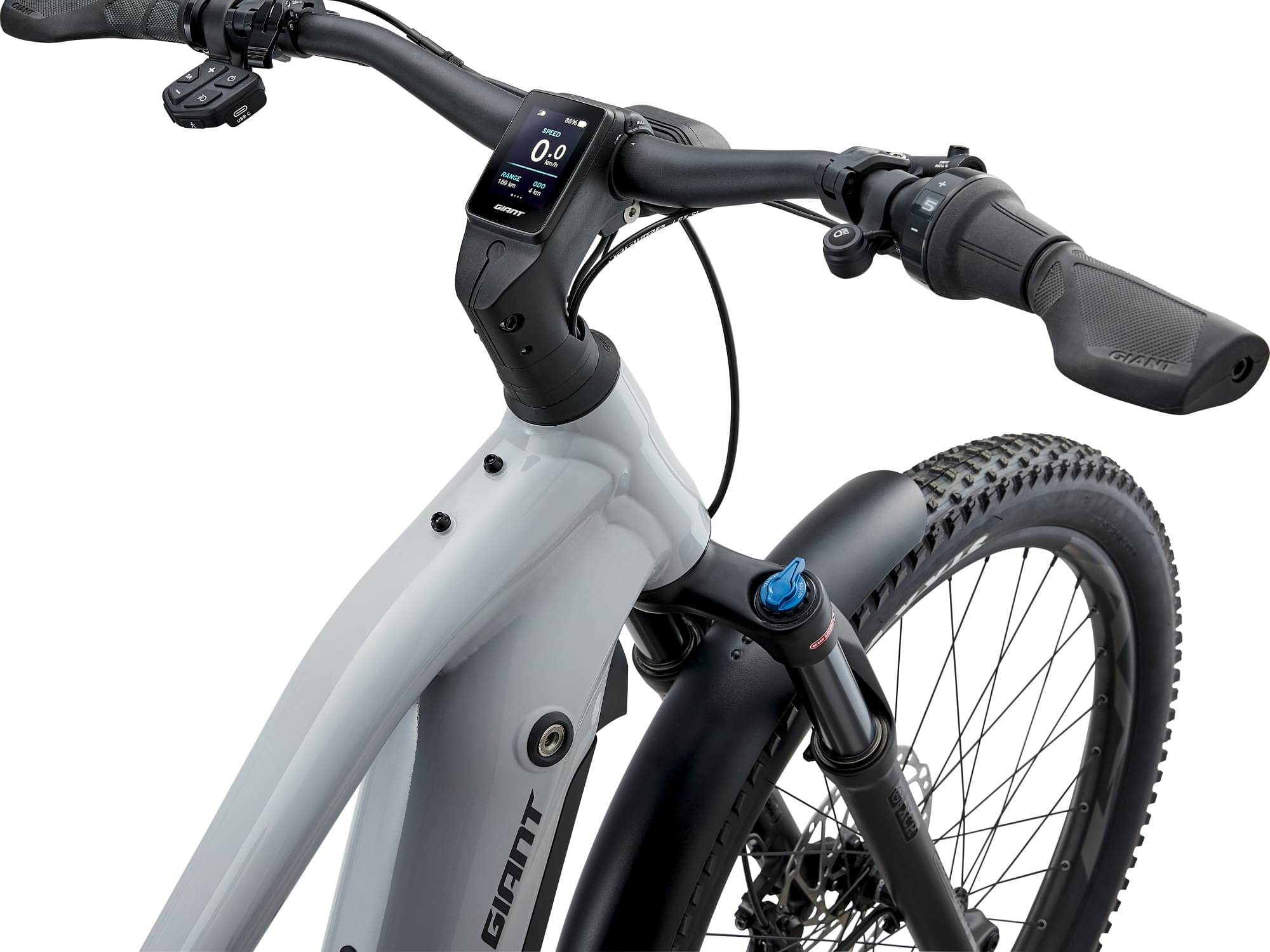

Stem
Giant Contour EVO display integrated stem (S/M: 80mm, L/XL: 100mm)
Handlebar
Giant Contour Comfort Riser 31.8x720mm
Grips
Giant Connect Ego Max Plus
Seat
Saddle
Selle Royal Vivo Ergo GTS
Seatpost
Giant Contact Switch, dropper, 30,9mm (S:100m/ M:125mm/ L:150mm/ XL:170mm)
Motor & Battery

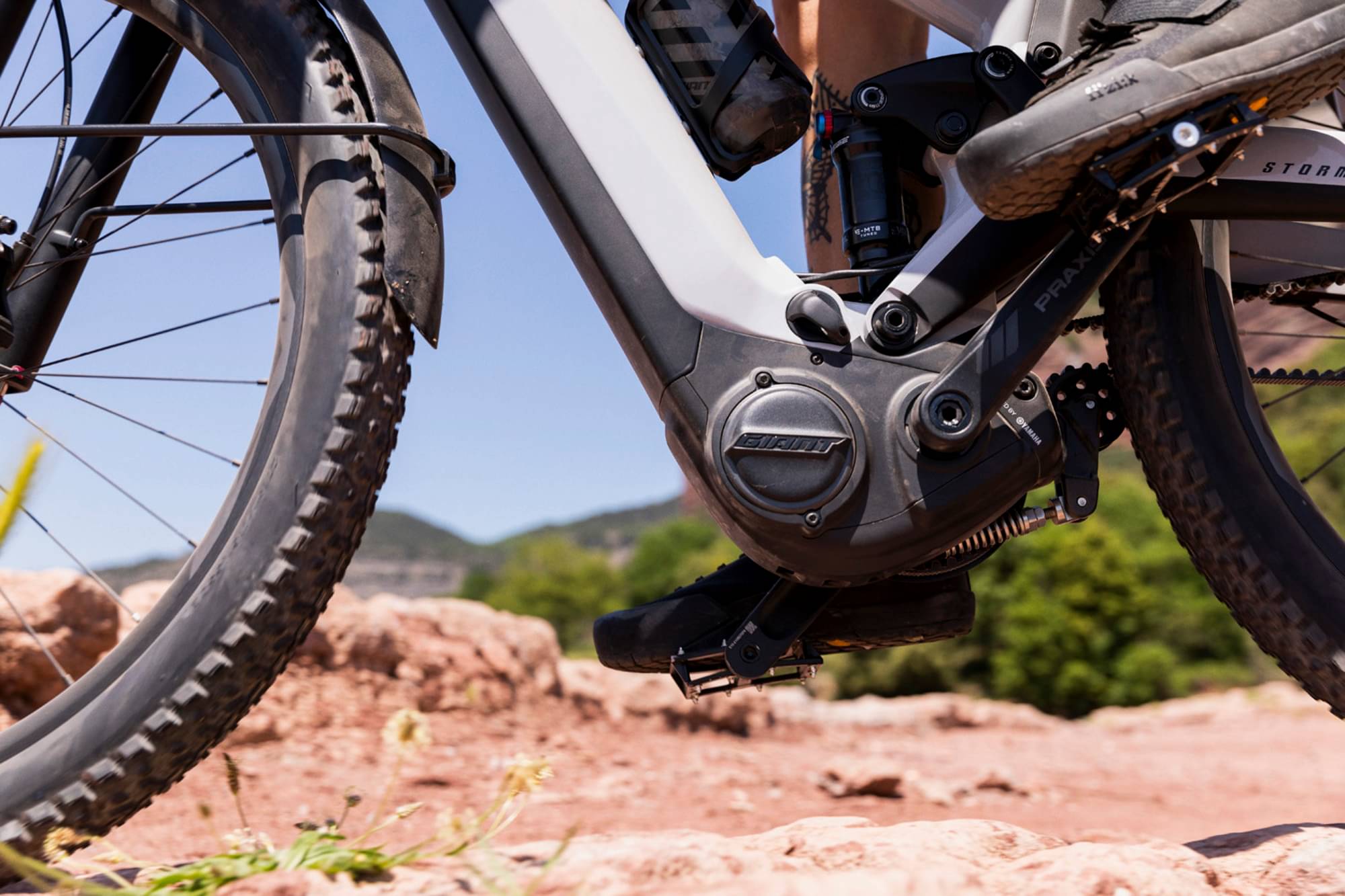

Motor
Giant SyncDrive Pro 2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
Battery
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production
Charger
Giant EnergyPak 6A smart charger, 60% in 3:00h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.58 mm | 1.57 mm | 1.54 mm |
| Front Center | 675 mm | 692 mm | 708 mm | 729 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 82 mm | 82 mm | 82 mm | 82 mm |
| Stack | 617 mm | 631 mm | 645 mm | 659 mm |
| Reach | 389 mm | 400 mm | 411 mm | 427 mm |
| Top Tube Length | 574 mm | 589 mm | 604 mm | 624 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 445 mm | 445 mm | 460 mm | 490 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1146 mm | 1163 mm | 1179 mm | 1200 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Stormguard, E+ 2 is part of the Giant E Stormguard model. Giant released 2 e-bikes variations of this model so far. Take a sneak peek at all Giant E Stormguard e-bikes models from 2023, by clicking here.
Model range prices
Giant Stormguard, E+ 2 2023 is the most economical model, with a starting price of 6901$. Giant Stormguard, E+ 1 2023 on the other hand costs 8493$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Cyclocross e-bikes
According to our calculations, the average cost of a Cyclocross e-bike that is reliable is 2571$. However, this doesn’t mean that if you spend less money on a Cyclocross e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 6901$. Doing a quick comparison, we notice that Stormguard, E+ 2 price is 168.42% higher than the average cost of a Cyclocross e-bike.
Overview of components

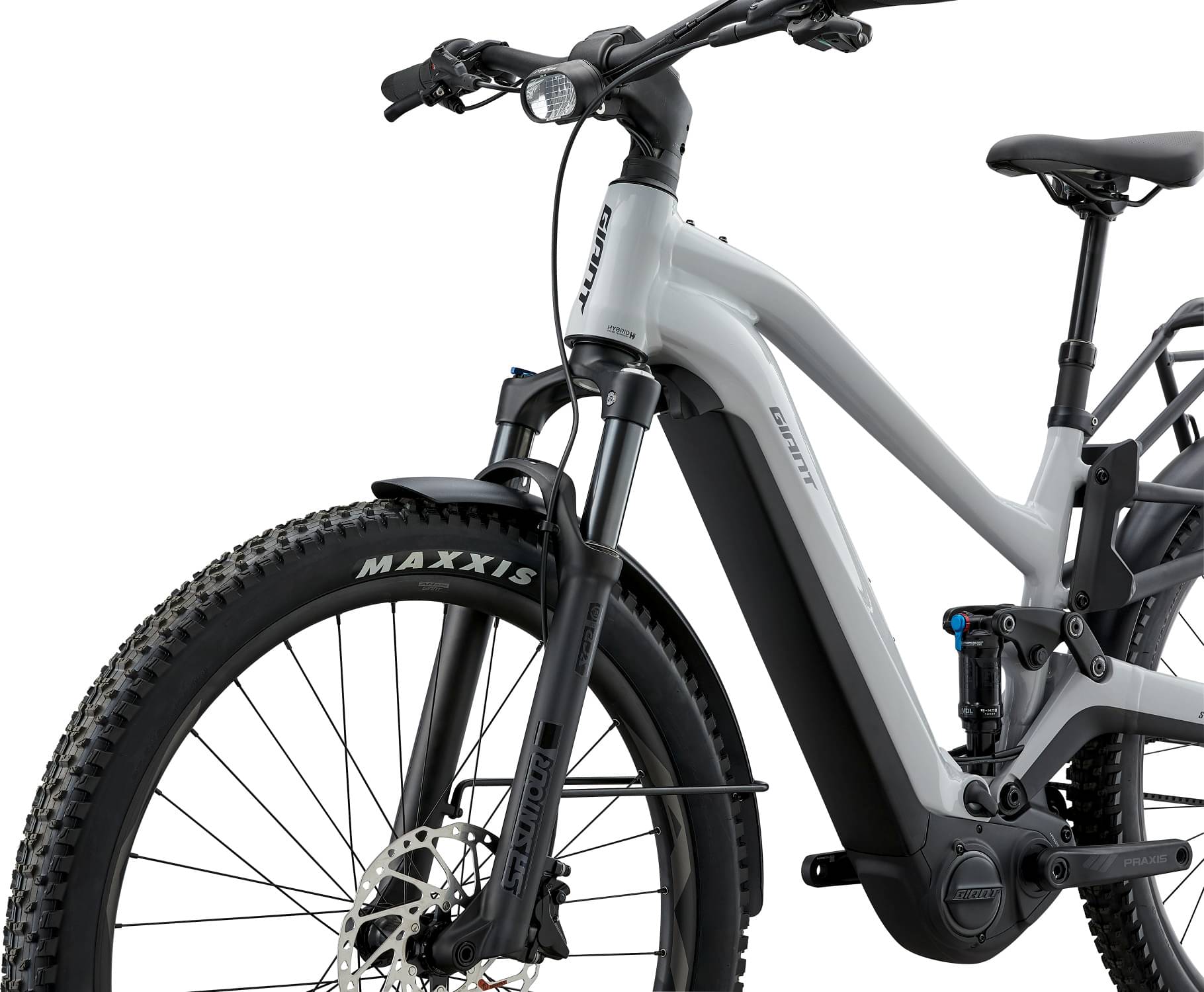

Fork
The Stormguard, E+ 2 comes factory-installed with the Suntour XCR Air fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Stormguard, E+ 2 2023 e-bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Giant Stormguard, E+ 2 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
