Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
157cm - 169cm
SM
165cm - 175cm
MD
171cm - 181cm
MD/LG
177cm - 187cm
LG
183cm - 193cm
XL
189cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

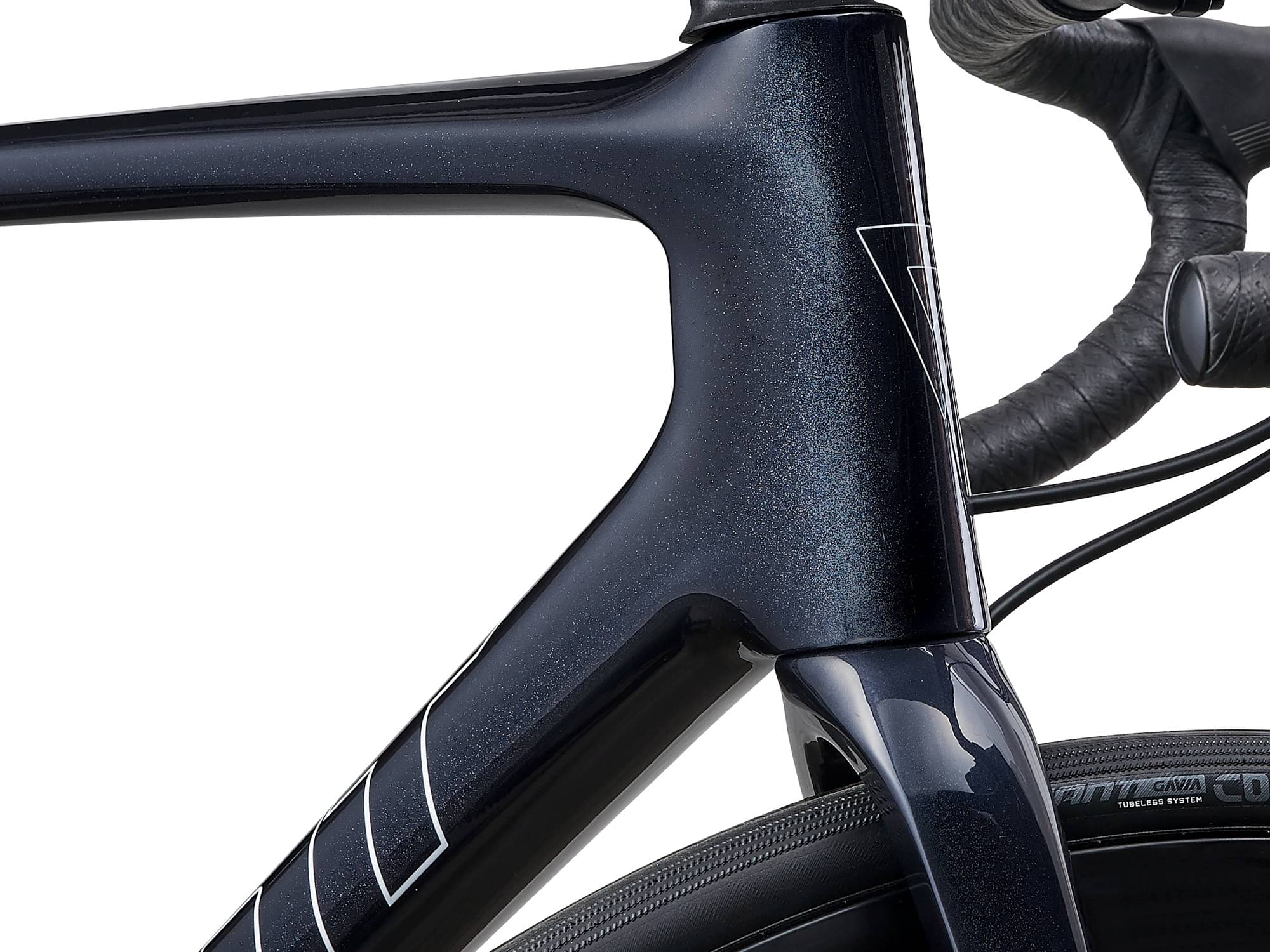

Frame
Frame
Advanced-Grade Composite, disc
Suspension Fork
Advanced-Grade Composite, full-composite OverDrive steerer, disc
Rear Shock
N/A

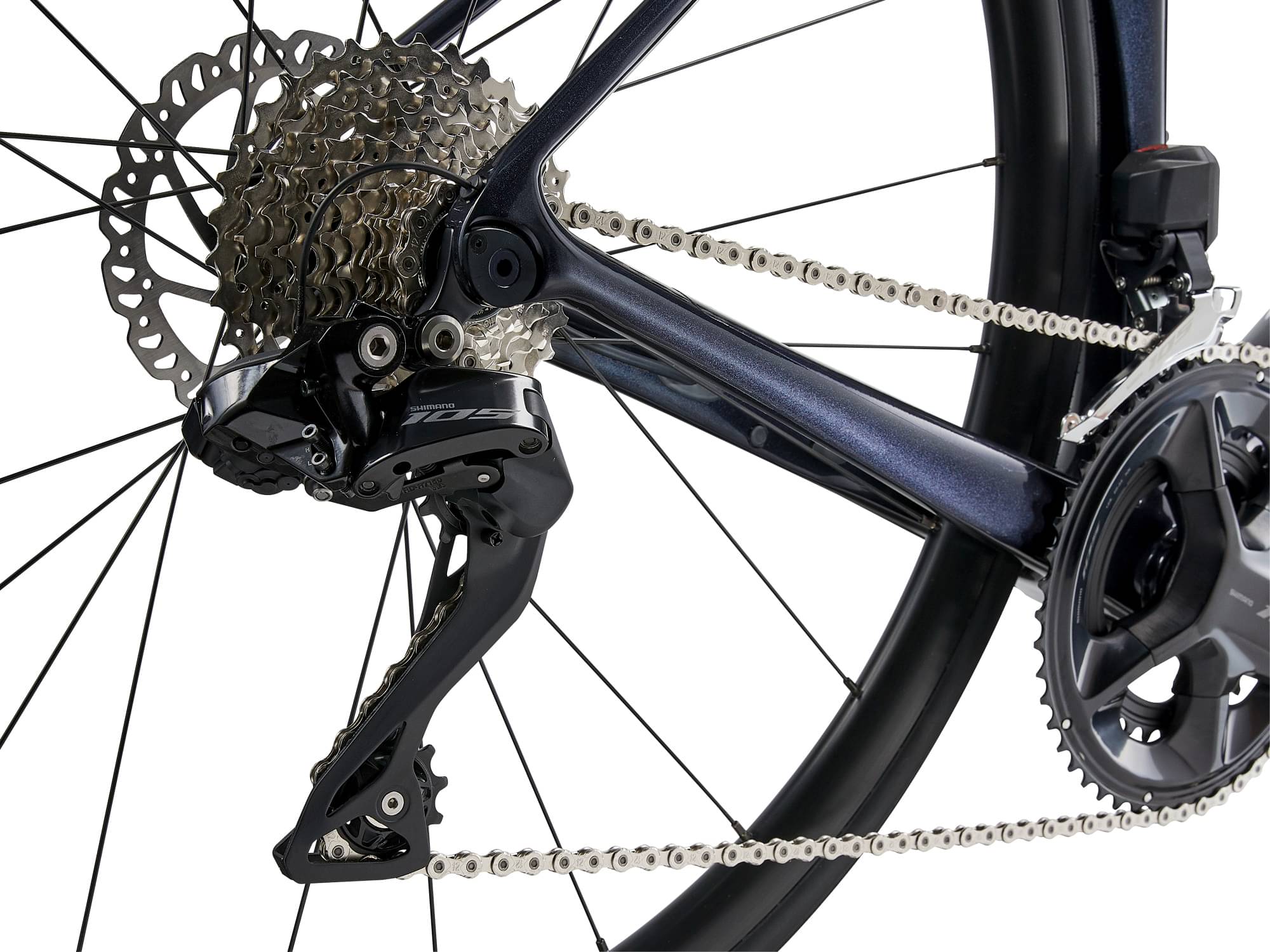

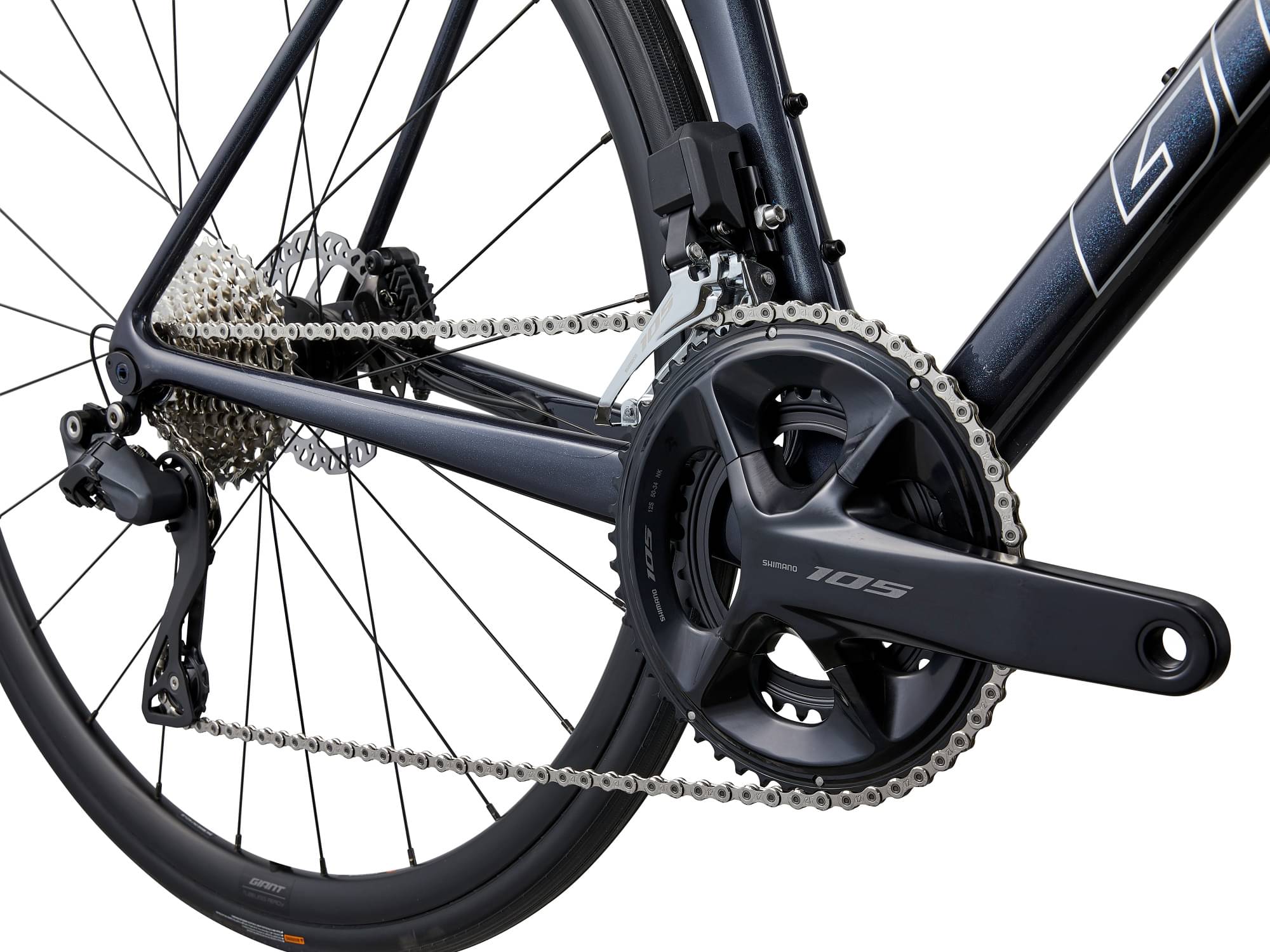

Drivetrain
Rear Derailleur
Shimano 105 Di2
Front Derailleur
Shimano 105 Di2
Shift Levers
Shimano 105 Di2
Cassette
Shimano 105, 12-speed, 11x34
Crank
Shimano 105, 34/50 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
Shimano, press fit
Chain
KMC X12
Pedals
N/A
Wheels
Front Hub
[F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle
Rear Hub
[F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle
Rims
Giant SLR 2 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
Spokes
Sapim Sprint
Tires
Giant Course 1, tubeless, 700x25c (28mm), folding
Brakes
Brakes
Shimano 105 Di2 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]140mm
Brake Levers
Shimano 105 Di2

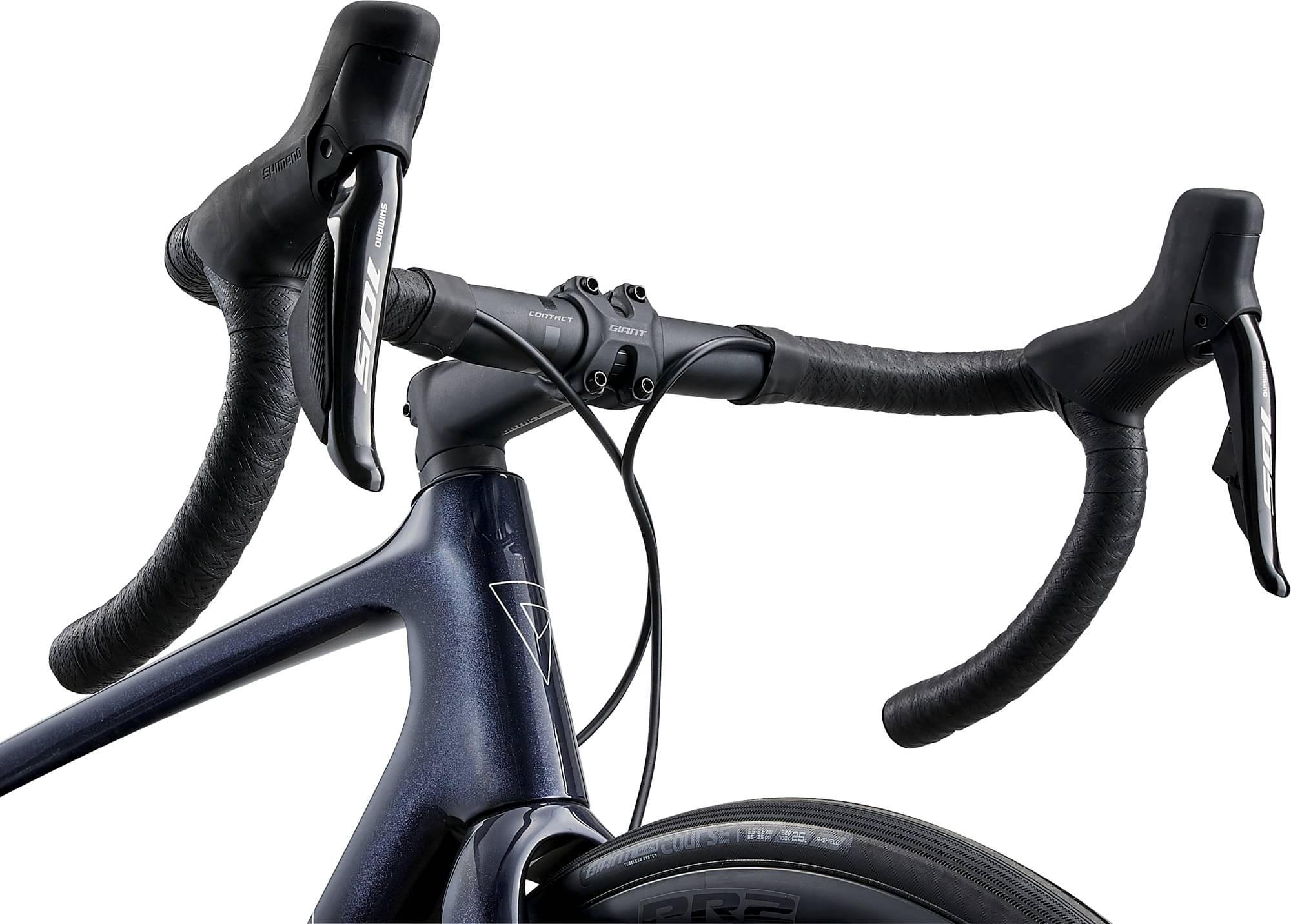

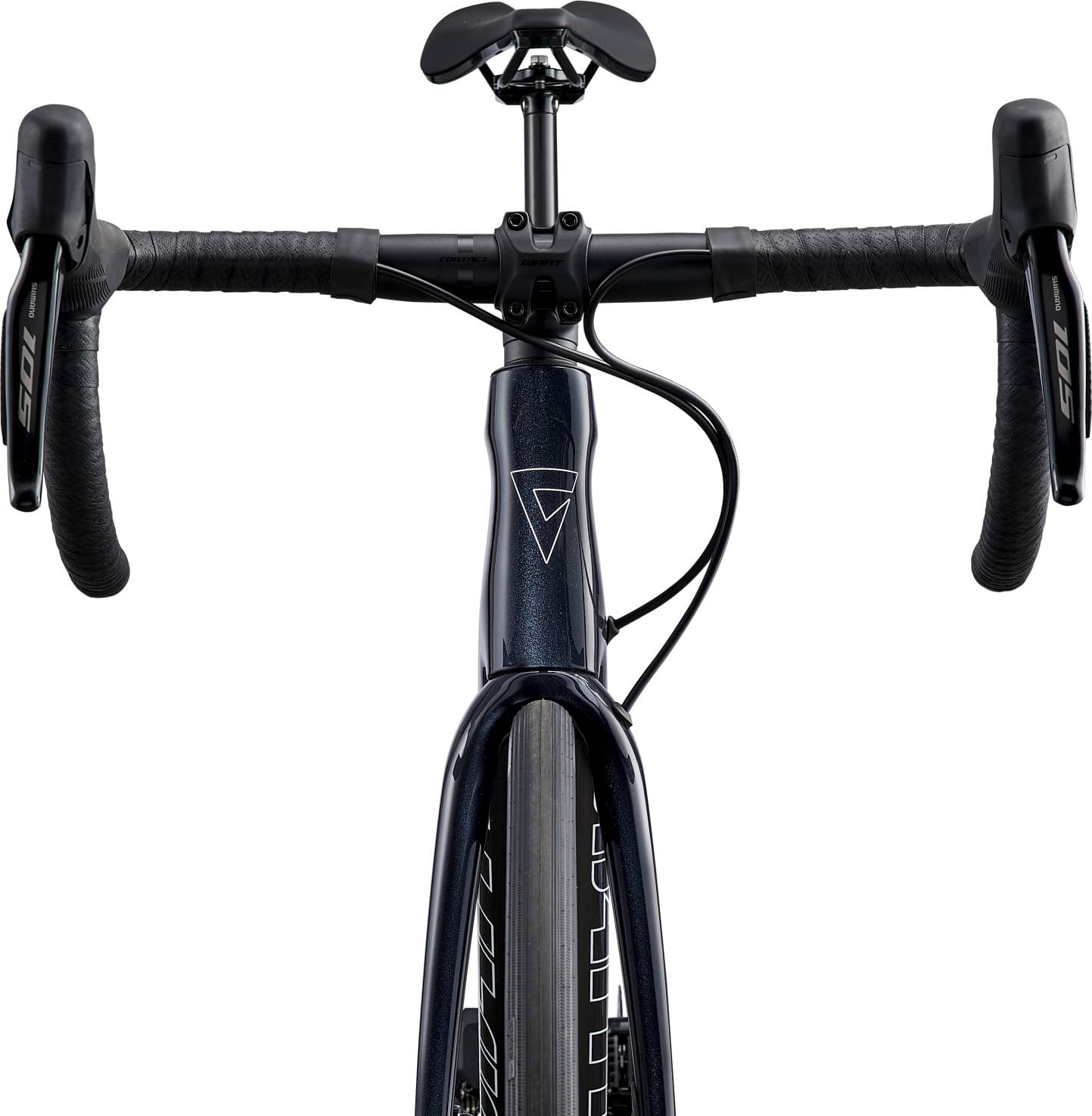

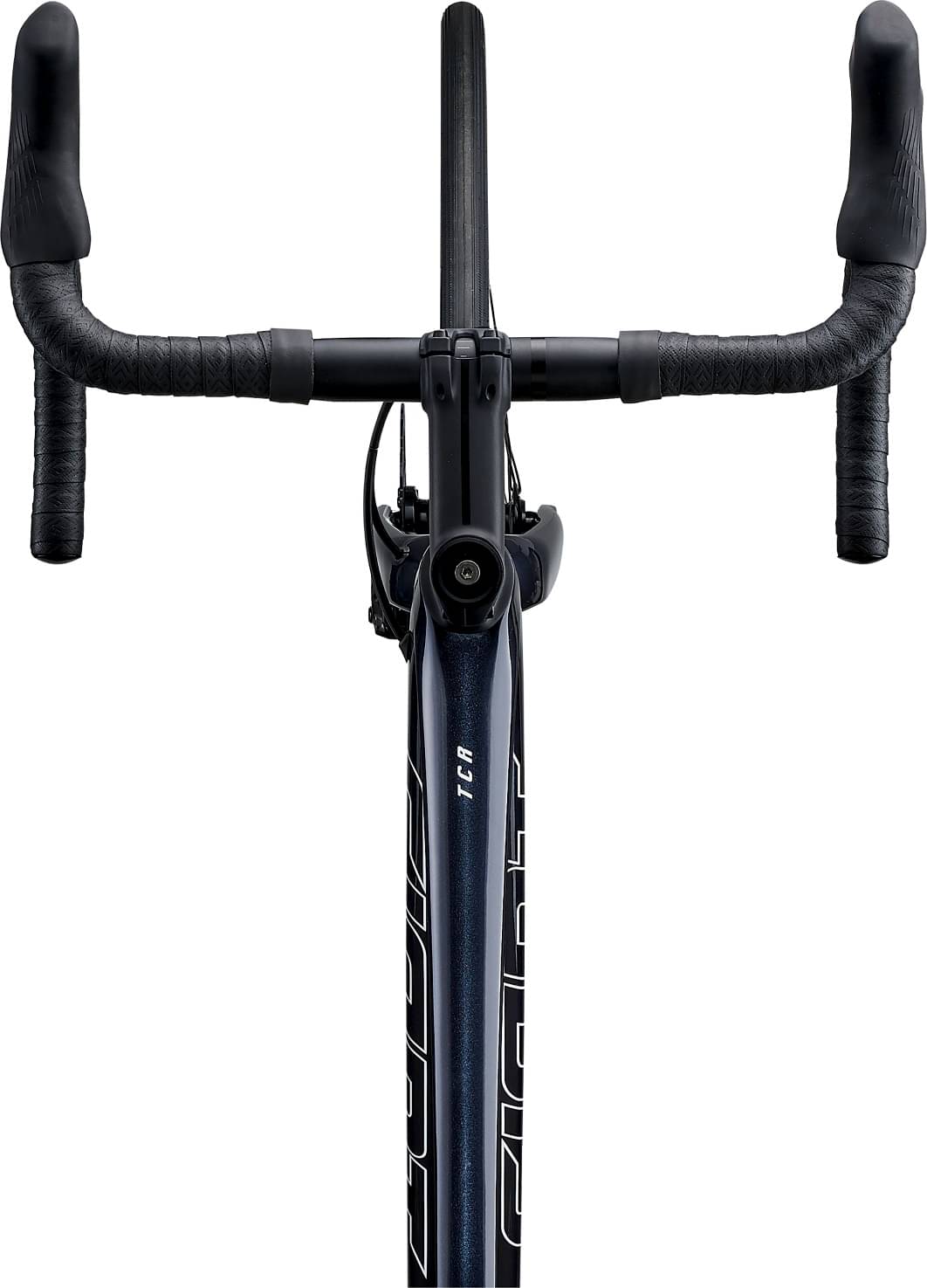

Cockpit
Stem
Giant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Handlebar
Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips
Stratus Lite 2.0
Seat
Saddle
Giant Approach
Seatpost
Giant Variant, composite, -5/+15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.41 mm | 1.44 mm | 1.46 mm | 1.46 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 582 mm | 582 mm | 585 mm | 595 mm | 610 mm | 624 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72.1 mm | 64 mm | 59.2 mm | 59.2 mm | 59.2 mm | 59.2 mm |
| Stack | 508 mm | 519 mm | 536 mm | 553 mm | 572 mm | 587 mm |
| Reach | 367 mm | 374 mm | 379 mm | 384 mm | 393 mm | 403 mm |
| Top Tube Length | 511 mm | 526 mm | 541 mm | 556 mm | 571 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 445 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 72.3 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm | 165 mm | 185 mm | 200 mm |
| Chainstay Length | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm |
| Wheelbase | 967 mm | 968 mm | 971 mm | 982 mm | 997 mm | 1011 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 697 mm | 716 mm | 738 mm | 764 mm | 791 mm | 807 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 189 cm |
| Rider Max Height | 169 cm | 175 cm | 181 cm | 187 cm | 193 cm | 199 cm |
Model Overview
TCR Advanced, Disc 1+ is part of the Giant Tcr model. Giant released 260 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Giant TCR Advanced, Disc 1 KOM 2023 is the most affordable bike of this model and has a price of 2763$. On the other hand, Giant TCR Advanced, SL Disc 0 2023, is the most expensive and costs 12200$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Giant released this model in 2023, its price was 4500$. Comparing this to the average Race bike price, we see that the price is 34.33% more expensive.
Overview of components
Fork material

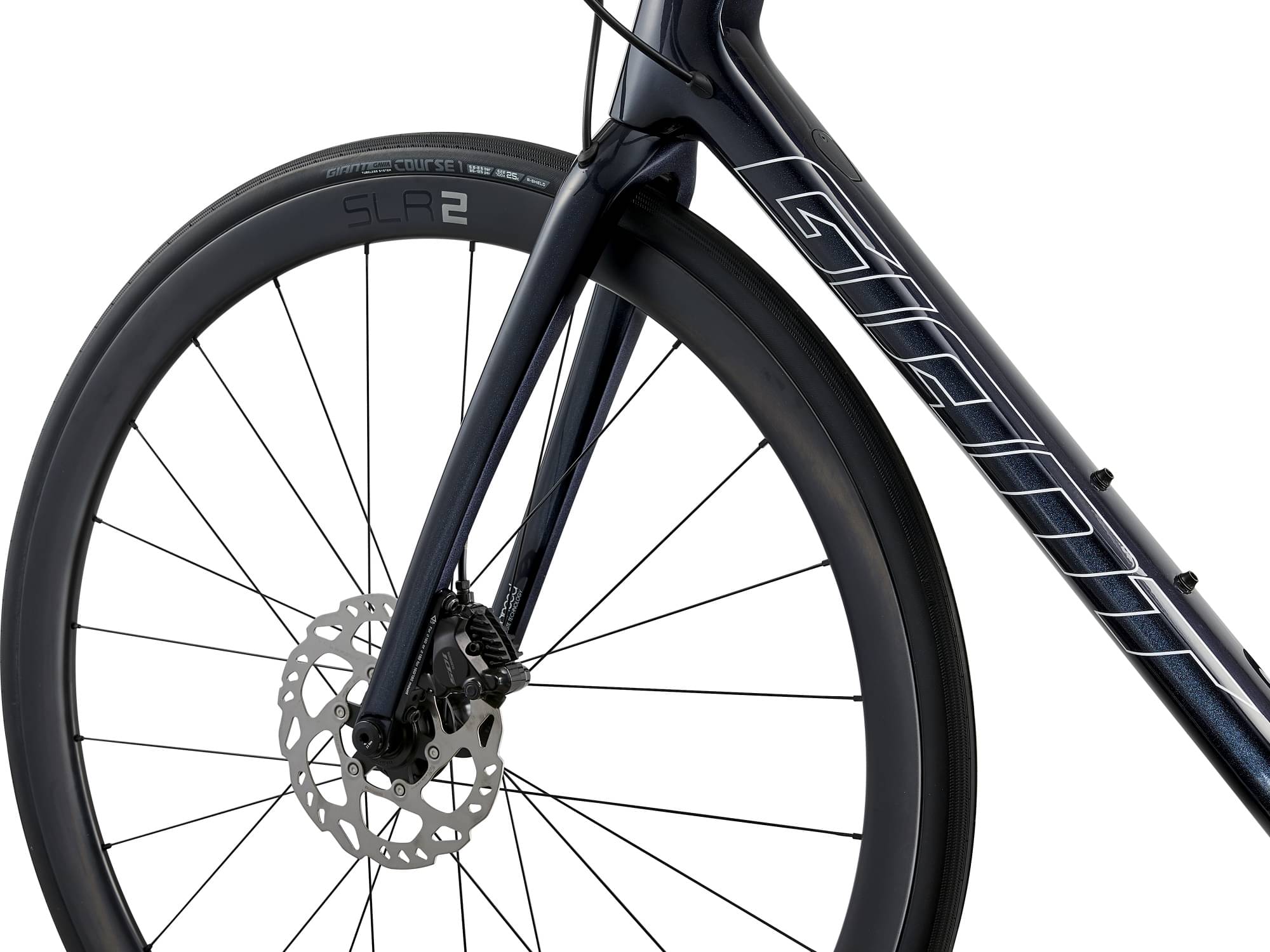

TCR Advanced, Disc 1+ has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The TCR Advanced, Disc 1+ 2023 bike is equipped with 700c carbon wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The TCR Advanced, Disc 1+ has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 157 cm – 199 cm (5.15 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
