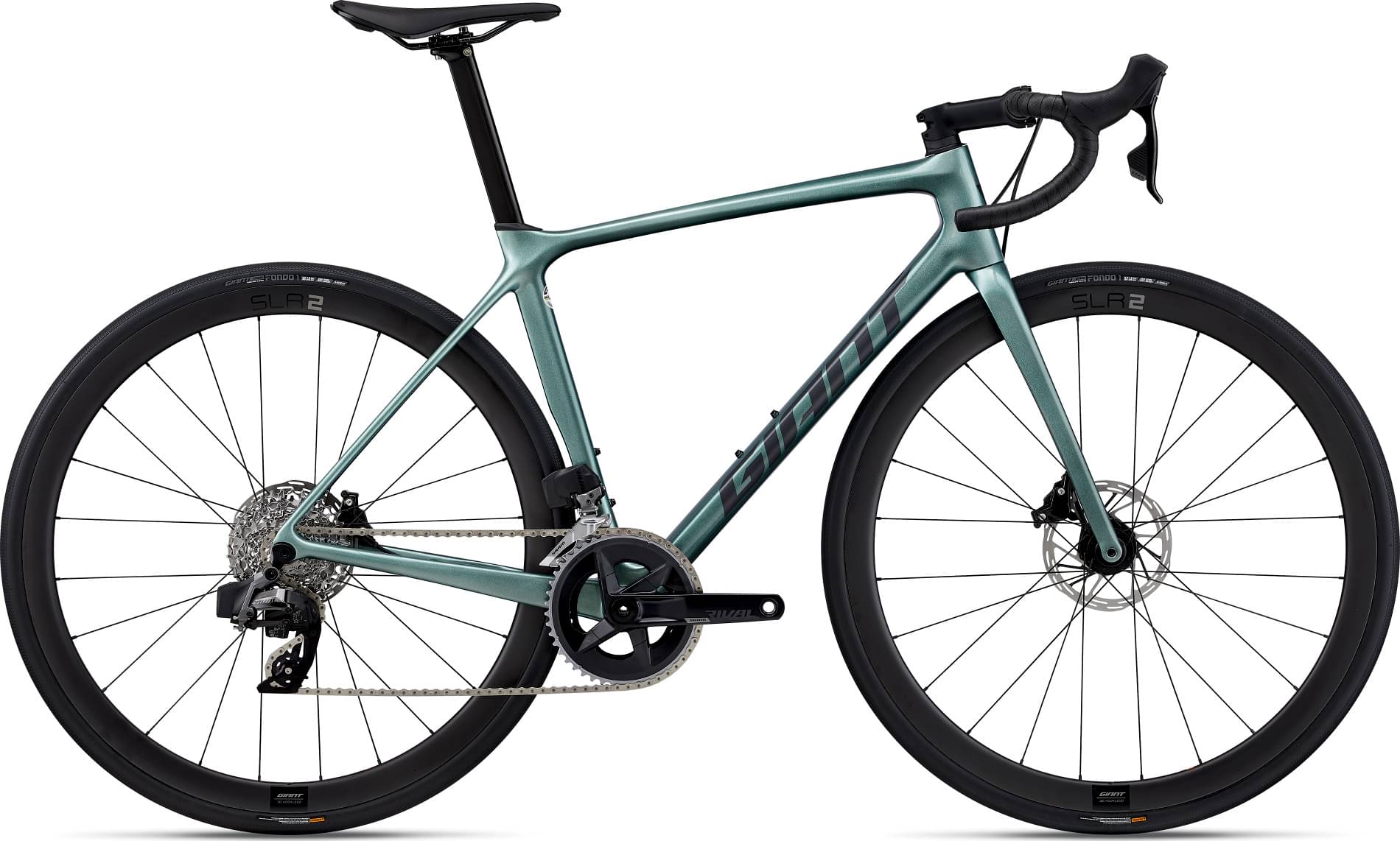

Giant TCR Advanced, Disc 1+ AR 2023
2023 Road
Estimate price |
4,800$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
157cm - 169cm
SM
165cm - 175cm
MD
171cm - 181cm
MD/LG
177cm - 187cm
LG
183cm - 193cm
XL
189cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite, disc
Suspension Fork
Advanced-Grade Composite, full-composite OverDrive steerer, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS
Front Derailleur
SRAM Rival eTap AXS
Shift Levers
SRAM Rival eTap AXS
Cassette
SRAM Rival, 12-speed, 10x36
Crank
SRAM Rival D1 DUB, 33/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM Rival D1
Pedals
N/A
Wheels
Front Hub
[F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle
Rear Hub
[F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle
Rims
Giant SLR 2 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
Spokes
Sapim Sprint
Tires
Giant Fondo 1, tubeless, 700x28c (32mm), folding
Brakes
Brakes
SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
Brake Levers
SRAM Rival eTap AXS hydraulic
Cockpit
Stem
Giant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Handlebar
Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips
Stratus Lite 3.0
Seat
Saddle
Giant Approach
Seatpost
Giant Variant, composite, -5/+15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.41 mm | 1.44 mm | 1.46 mm | 1.46 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 582 mm | 582 mm | 585 mm | 595 mm | 610 mm | 624 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72.1 mm | 64 mm | 59.2 mm | 59.2 mm | 59.2 mm | 59.2 mm |
| Stack | 508 mm | 519 mm | 536 mm | 553 mm | 572 mm | 587 mm |
| Reach | 367 mm | 374 mm | 379 mm | 384 mm | 393 mm | 403 mm |
| Top Tube Length | 511 mm | 526 mm | 541 mm | 556 mm | 571 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 445 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 72.3 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm | 165 mm | 185 mm | 200 mm |
| Chainstay Length | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm |
| Wheelbase | 967 mm | 968 mm | 971 mm | 982 mm | 997 mm | 1011 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 697 mm | 716 mm | 738 mm | 764 mm | 791 mm | 807 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 189 cm |
| Rider Max Height | 169 cm | 175 cm | 181 cm | 187 cm | 193 cm | 199 cm |
About this model
TCR Advanced, Disc 1+ AR completes the Giant Tcr model. There are 260 bikes that carry this model name. Take a sneak peek at all Giant Tcr bikes models from 2023, by clicking here.
Model range prices
Giant TCR Advanced, Disc 1 KOM 2023 is the most economical model, with a starting price of 2763$. Giant TCR Advanced, SL Disc 0 2023 on the other hand costs 12200$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Giant released this model in 2023, its price was 4800$. If we compare this with the average Race bike cost we notice that the price is 43.28% higher.
TCR Advanced, Disc 1+ AR components
Fork material
TCR Advanced, Disc 1+ AR has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the TCR Advanced, Disc 1+ AR model has 700c carbon wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Giant TCR Advanced, Disc 1+ AR bike has 6 sizes, in the range of 157 cm – 199 cm (5.15 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
