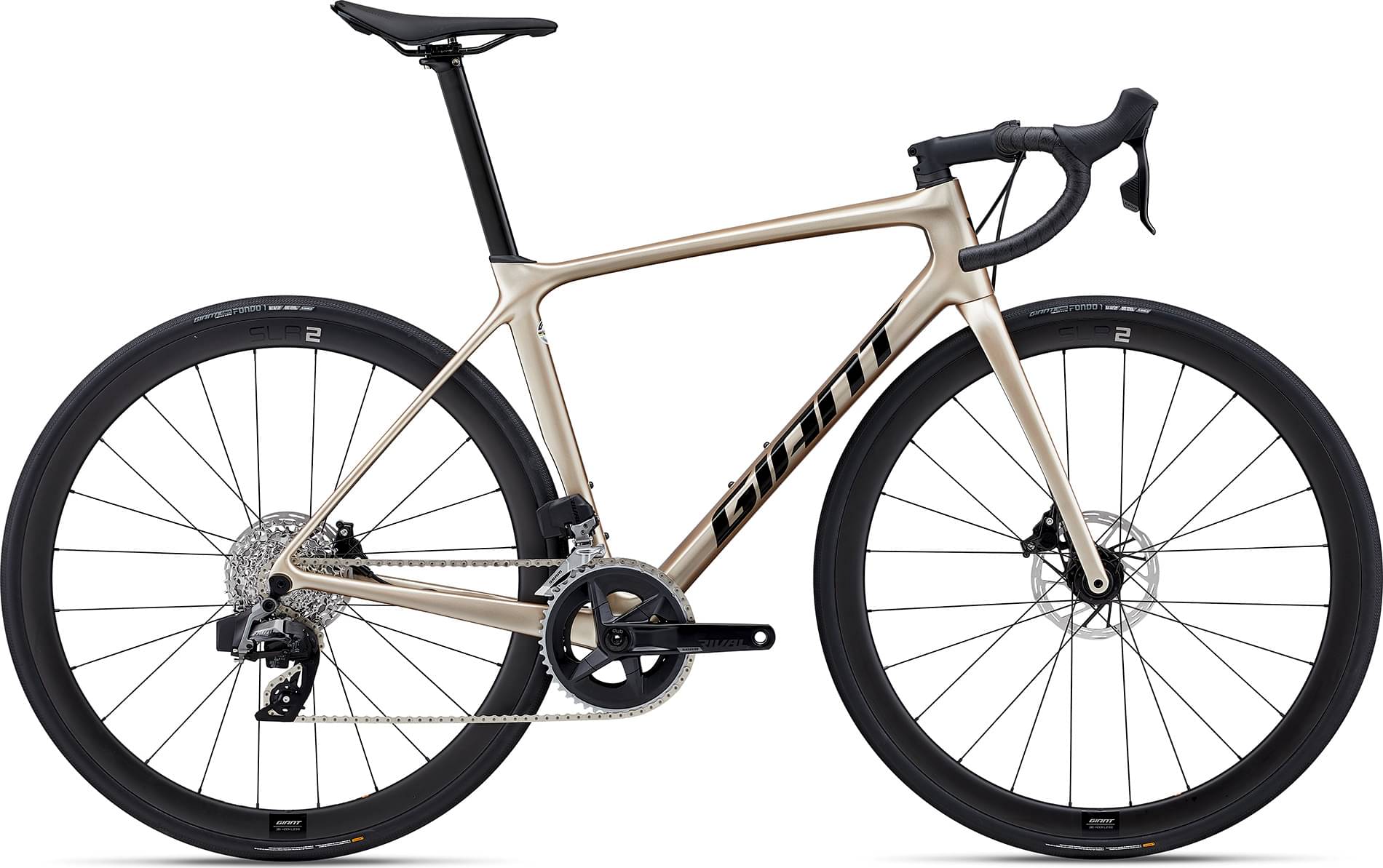

Giant TCR Advanced, Disc 1+ AR 2024
2024 Road
Estimate price |
4,274$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
157cm - 169cm
SM
165cm - 175cm
MD
171cm - 181cm
MD/LG
177cm - 187cm
LG
183cm - 193cm
XL
189cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite, disc
Suspension Fork
Advanced-grade composite, full-composite OverDrive steerer, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS
Front Derailleur
SRAM Rival eTap AXS
Shift Levers
SRAM Rival eTap AXS
Cassette
SRAM Rival, 12-speed, 10x36
Crank
SRAM Rival D1 DUB, 33/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM Rival D1
Pedals
N/A
Wheels
Front Hub
[F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant alloy, 3-pawl 30t driver, CenterLock, 12mm thru-axle
Rear Hub
[F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant alloy, 3-pawl 30t driver, CenterLock, 12mm thru-axle
Rims
Giant SLR 2 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
Spokes
Sapim Sprint
Tires
Giant Fondo 1, tubeless, 700x28c (32mm), folding
Brakes
Brakes
SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
Brake Levers
SRAM Rival eTap AXS hydraulic
Cockpit
Stem
Giant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Handlebar
Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips
Stratus Lite 3.0
Seat
Saddle
Giant Approach
Seatpost
Giant Variant, composite, -5/+15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.41 mm | 1.44 mm | 1.46 mm | 1.46 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 582 mm | 582 mm | 585 mm | 595 mm | 610 mm | 624 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72.1 mm | 64 mm | 59.2 mm | 59.2 mm | 59.2 mm | 59.2 mm |
| Stack | 508 mm | 519 mm | 536 mm | 553 mm | 572 mm | 587 mm |
| Reach | 367 mm | 374 mm | 379 mm | 384 mm | 393 mm | 403 mm |
| Top Tube Length | 511 mm | 526 mm | 541 mm | 556 mm | 571 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 445 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 72.3 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm | 165 mm | 185 mm | 200 mm |
| Chainstay Length | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm |
| Wheelbase | 967 mm | 968 mm | 971 mm | 982 mm | 997 mm | 1011 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 697 mm | 716 mm | 738 mm | 764 mm | 791 mm | 807 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 189 cm |
| Rider Max Height | 169 cm | 175 cm | 181 cm | 187 cm | 193 cm | 199 cm |
Model Overview
TCR Advanced, Disc 1+ AR is part of the Giant Tcr model. There are 260 bikes that carry this model name. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Giant TCR Advanced 2 Pro Compact 2024 is the most economical model, with a starting price of 2432$. Giant TCR Advanced SL Disc 0 2024 on the other hand costs 13379$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2024 for 4352$. In conclusion, this bike price is 29.91% higher than the price of the average Race bike.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the TCR Advanced, Disc 1+ AR bike is equipped with the 700c carbon model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The TCR Advanced, Disc 1+ AR has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Giant TCR Advanced, Disc 1+ AR bike has 6 sizes, in the range of 157 cm – 199 cm (5.15 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
