Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
157cm - 169cm
SM
165cm - 175cm
MD
171cm - 181cm
MD/LG
177cm - 187cm
LG
183cm - 193cm
XL
189cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite, disc
Suspension Fork
Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
Shimano 105, 11-speed, 11x30
Crank
Shimano 105, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
Shimano, press fit
Chain
KMC X11SL-1
Pedals
N/A
Wheels
Front Hub
[F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle
Rear Hub
[F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle
Rims
Giant SLR 2 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
Spokes
Sapim Sprint
Tires
Giant Gavia Course 1, tubeless, 700x25c (28mm), folding
Brakes
Brakes
Shimano 105 hydraulic, Shimano rotors [F]160mm, [R]140mm
Brake Levers
Shimano 105 hydraulic
Cockpit
Stem
Giant Contact SL XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Handlebar
Giant Contact SL XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips
Stratus Lite 2.0
Seat
Saddle
Giant Fleet SL
Seatpost
Giant Variant, composite, -5/+15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.41 mm | 1.44 mm | 1.46 mm | 1.46 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 582 mm | 582 mm | 585 mm | 595 mm | 610 mm | 624 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72.1 mm | 64 mm | 59.2 mm | 59.2 mm | 59.2 mm | 59.2 mm |
| Stack | 508 mm | 519 mm | 536 mm | 553 mm | 572 mm | 587 mm |
| Reach | 367 mm | 374 mm | 379 mm | 384 mm | 393 mm | 403 mm |
| Top Tube Length | 511 mm | 526 mm | 541 mm | 556 mm | 571 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 445 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 72.3 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm | 165 mm | 185 mm | 200 mm |
| Chainstay Length | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm |
| Wheelbase | 967 mm | 968 mm | 971 mm | 982 mm | 997 mm | 1011 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 697 mm | 716 mm | 738 mm | 764 mm | 791 mm | 807 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 189 cm |
| Rider Max Height | 169 cm | 175 cm | 181 cm | 187 cm | 193 cm | 199 cm |
About this model

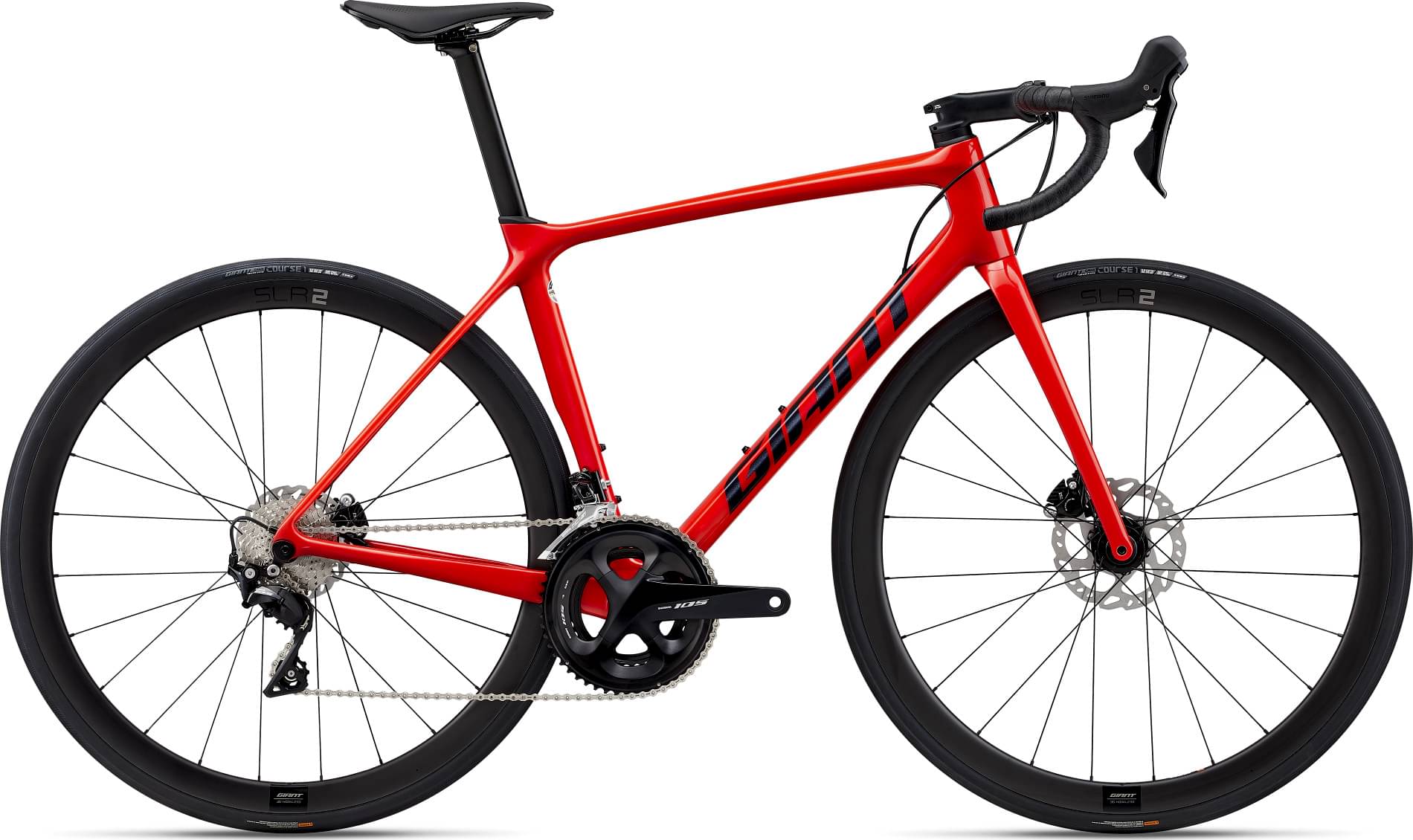

TCR Advanced, Pro Disc 2 is a Giant Tcr model. 260 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Giant TCR Advanced, Disc 1 KOM 2023 has a starting price of 2763$. Giant TCR Advanced, SL Disc 0 2023 on the other hand is the most expensive at 12200$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The TCR Advanced, Pro Disc 2 2023 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant TCR Advanced, Pro Disc 2 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 6 sizes. They vary from 157 cm – 199 cm (5.15 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
