Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
157cm - 169cm
SM
165cm - 175cm
MD
171cm - 181cm
MD/LG
177cm - 187cm
LG
183cm - 193cm
XL
189cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite
Suspension Fork
Advanced-Grade Composite, full-composite OverDrive 2 steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano Ultegra, 11x30
Crank
Shimano Ultegra, 36/52
Bottom Bracket
Shimano Press Fit
Chain
KMC X11SL-1
Pedals
N/A
Wheels
Front Hub
Giant SLR-1 WheelSystem
Rear Hub
Giant SLR-1 WheelSystem
Rims
Giant SLR-1 WheelSystem (F:42mm, R:42mm)
Spokes
Giant SLR-1 WheelSystem
Tires
Giant Gavia AC 1 tubeless, 700x25, folding
Brakes
Brakes
Shimano Ultegra
Brake Levers
Shimano Ultegra
Cockpit
Stem
Giant Contact SL
Handlebar
Giant Contact SL
Seat
Saddle
Giant Contact SL (forward)
Seatpost
Giant Variant, composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.41 mm | 1.43 mm | 1.42 mm | 1.46 mm | 1.45 mm |
| Bottom Bracket Height | 266 mm | 268 mm | 268 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 577 mm | 575 mm | 581 mm | 601 mm | 611 mm | 625 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 70 mm | 60 mm | 57 mm | 57 mm | 57 mm | 57 mm |
| Stack | 508 mm | 520 mm | 536 mm | 553 mm | 572 mm | 586 mm |
| Reach | 363 mm | 369 mm | 374 mm | 389 mm | 393 mm | 403 mm |
| Top Tube Length | 506 mm | 526 mm | 541 mm | 561 mm | 571 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 72 ° |
| Seat Tube Length | 425 mm | 445 mm | 470 mm | 500 mm | 525 mm | 550 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 123 mm | 133 mm | 148 mm | 168 mm | 188 mm | 203 mm |
| Chainstay Length | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm |
| Wheelbase | 963 mm | 961 mm | 967 mm | 988 mm | 998 mm | 1012 mm |
| Bottom Bracket Drop | 70 mm | 68 mm | 68 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 715 mm | 733 mm | 756 mm | 778 mm | 796 mm | 814 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 189 cm |
| Rider Max Height | 169 cm | 175 cm | 181 cm | 187 cm | 193 cm | 199 cm |
About this model

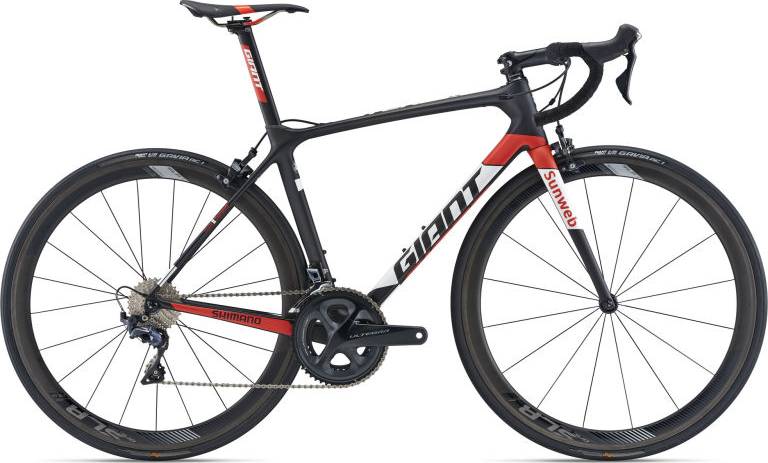

TCR Advanced Pro Team completes the Giant Tcr model. 260 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Giant TCR Advanced 2 2019 is the most economical model, with a starting price of 1900$. Giant TCR Advanced SL 0 Disc Dura-Ace 2019 on the other hand costs 10500$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 3570$. If we compare this with the average Race bike cost we notice that the price is 6.57% higher.
TCR Advanced Pro Team components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the TCR Advanced Pro Team model has 700c carbon wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The TCR Advanced Pro Team has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
TCR Advanced Pro Team comes in 6 sizes, that range from 157 cm – 199 cm (5.15 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
